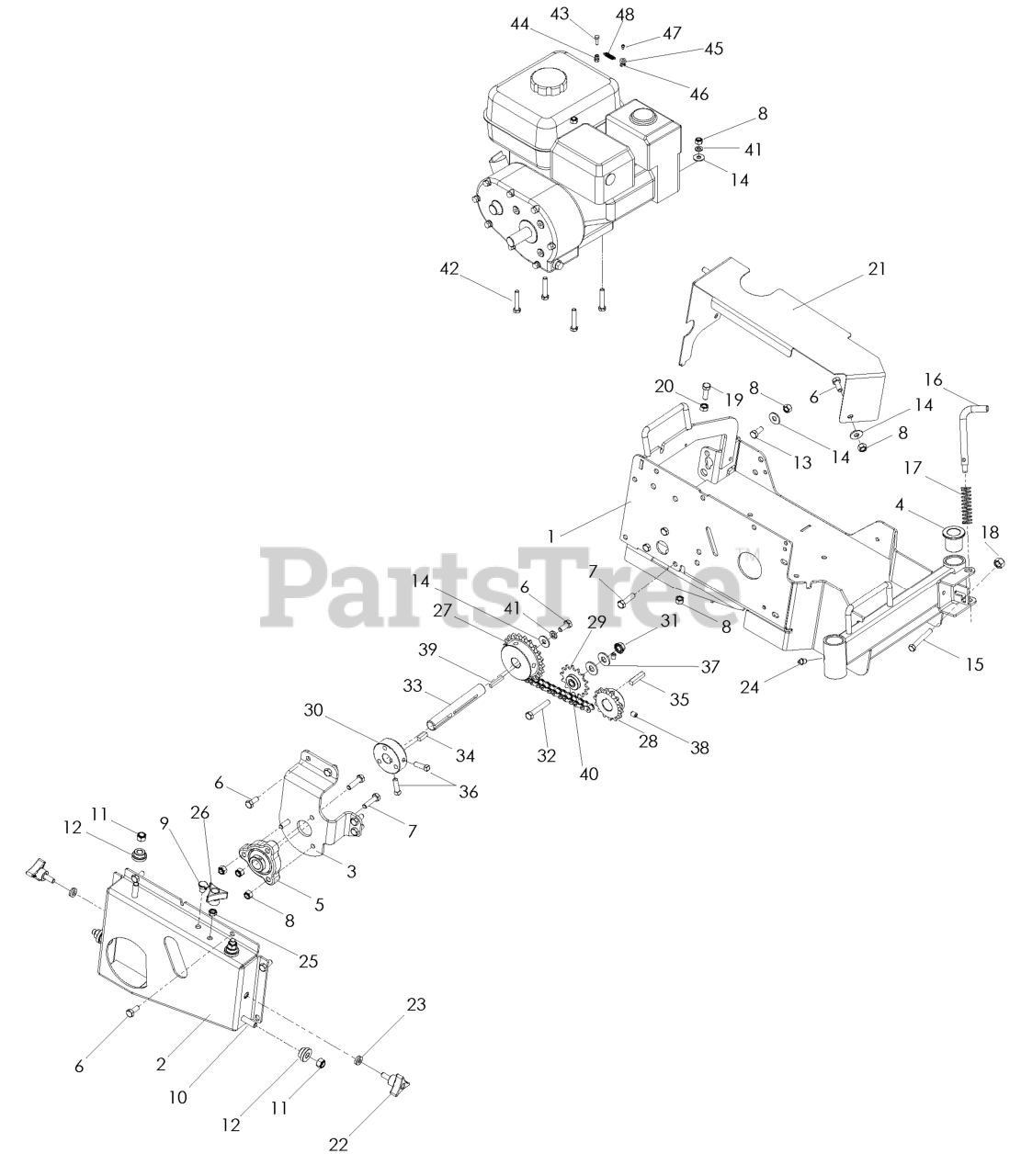

BE 550 (966997301) - Husqvarna Bed Edger (2008-07) Chassis, Engine Parts Diagram

Bed Edger

Chassis, Engine Parts Diagram

  • Title

1

Husqvarna 510367301

FRAME WELDMENT, ORANGE

$

$

Not available

2

Husqvarna 510373201

CHAIN COVER, ORANGE

$101.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510367601

BEARING SUPPORT, ORANGE

$

$

Not available

4

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 14

0

5

Husqvarna 539100488

BEARING, FLANGED

$47.99

$

In Stock, only 2 left!

0

6

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539109545

OIL CAP, 3/8"

$41.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539106847

BUSHING RAKE

$8.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539991003

BOLT 1/4C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109526

SPRING PIN

$23.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539020034

SPRING, COMPRESSION

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 15

0

20

Husqvarna 539990196

NUT 5/16C HEX
(Superseded to 596582601)

$3.99

$

In Stock, Qty 11

0

21

Husqvarna 510373101

COVER, ORANGE

$

$

Not available

22

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 539101704

WASHER

$8.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539976997

ZERK 1/8 NPT

$

$

Not available

25

Husqvarna 539107897

NUT 5/16-18 HEX JAM ZD
(Superseded to 596436301)

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539111321

KNOB, 5/16-18 NYLOC

$9.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539111106

SPROCKET, 21T W/SETSCREWS

$77.99

$

In Stock, only 3 left!

0

28

Husqvarna 539109532

SPROCKET, ENGINE
(Superseded to 539111102)

$

$

Not available

29

Husqvarna 539000301

SPROCKET W/KEY JACK SHAFT 10 T

$41.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109514

MOUNTING HUB

$101.99

$

In Stock, only 2 left!

0

31

Husqvarna 539990613

NUT 3/8C WHIZ
(Superseded to 596583501)

$3.99

$

In Stock, Qty 10

0

32

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5
(Superseded to 596583901)

$3.99

$

In Stock, Qty 7

0

33

Husqvarna 539112042

SHAFT

$89.99

$

In Stock, only 2 left!

0

34

Husqvarna 539102067

KEY 1/4 SQ X 3/4

$7.49

$

In Stock, only 3 left!

0

35

Husqvarna 539109159

KEY 7MM SQ X 33MM ENGINE

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102716

SCREW 5/16C X 1 SQ HEAD SET

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539976956

SET SCREW 5/16 NYLOC

$

$

Not available

39

Husqvarna 539109165

KEY 3/16 SQ X 1-1/4

$

$

Not available

40

Husqvarna 539130885

CHAIN, TRANSMISSION #40

$

$

Not available

41

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

43

Husqvarna 539108520

HCS M5-0.8 X 16MM GR 8.8 ZD

$

$

Not available

44

Husqvarna 539109154

NUT 5MM-.8 HEX ZD

$8.49

$

Usually ships in 3-10 days

0

45

Husqvarna 539030449

CLAMP, THROTTLE CABLE

$

$

Not available

46

Husqvarna 539030451

CLIP, THROTTLE HONDA

$

$

Not available

47

Husqvarna 539108583

SCREW METRIC SPECIAL X 1/4 ZN

$

$

Not available

48

Husqvarna 539030445

SPRING, THROTTLE, HONDA ENGINE

$

$

Not available
