BE 550 (966997301) - Husqvarna Bed Edger (2008-07) Handle Parts Diagram

Bed Edger

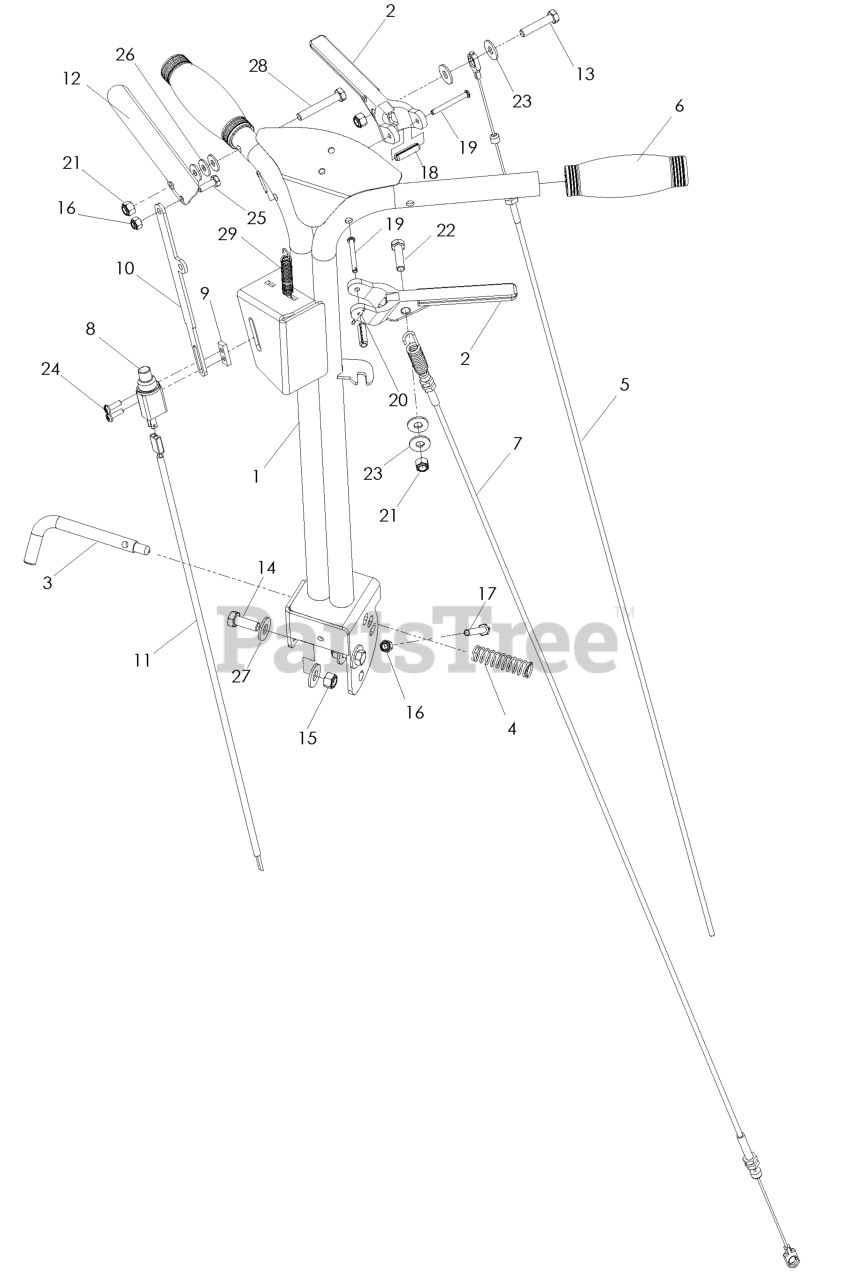

Handle Parts Diagram

  • Title

1

Husqvarna 510367201

HANDLE WELDMENT, ORANGE

$

$

Not available

2

Husqvarna 539131156

DRIVE LEVER

$

$

Not available

3

Husqvarna 539109526

SPRING PIN

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539020034

SPRING, COMPRESSION

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109549

THROTTLE CABLE

$14.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976488

GRIP HANDLE
(Superseded to 532427643)

$6.99

$

In Stock, Qty 10

0

7

Husqvarna 539109509

DEPTH CABLE

$26.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539020017

SWITCH, NC PLUNGER

$39.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102678

TAPPED PLATE

$20.99

$

In Stock, Qty 8

0

10

Husqvarna 539109887

OP LINKAGE

$

$

Not available

11

Husqvarna 539109890

WIRE HARNESS

$62.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510417401

CO LEVER, ORANGE

$

$

Not available

13

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.49

$

In Stock, Qty 6

0

14

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 539101313

HCS 1/4C X 2

$6.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539923313

ROLL PIN 5/16 X 1.125

$7.99

$

In Stock, Qty 8

0

19

Husqvarna 539101213

PIN CLEVIS 3/16 X 1-3/4

$

$

Not available

20

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539976937

HCS 5/16-18X2

$3.49

$

In Stock, only 1 left!

0

29

Husqvarna 539977250

SPRING

$

$

Not available

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN

$6.99

$

Usually ships in 3-10 days

0
