BF100 A SA (B100) - Honda Marine Engine, Made in Japan (SN: B100-1200155 - B100-1205094) CARBURETOR + AIR GUIDE Parts Diagram

Marine Engine, Made in Japan

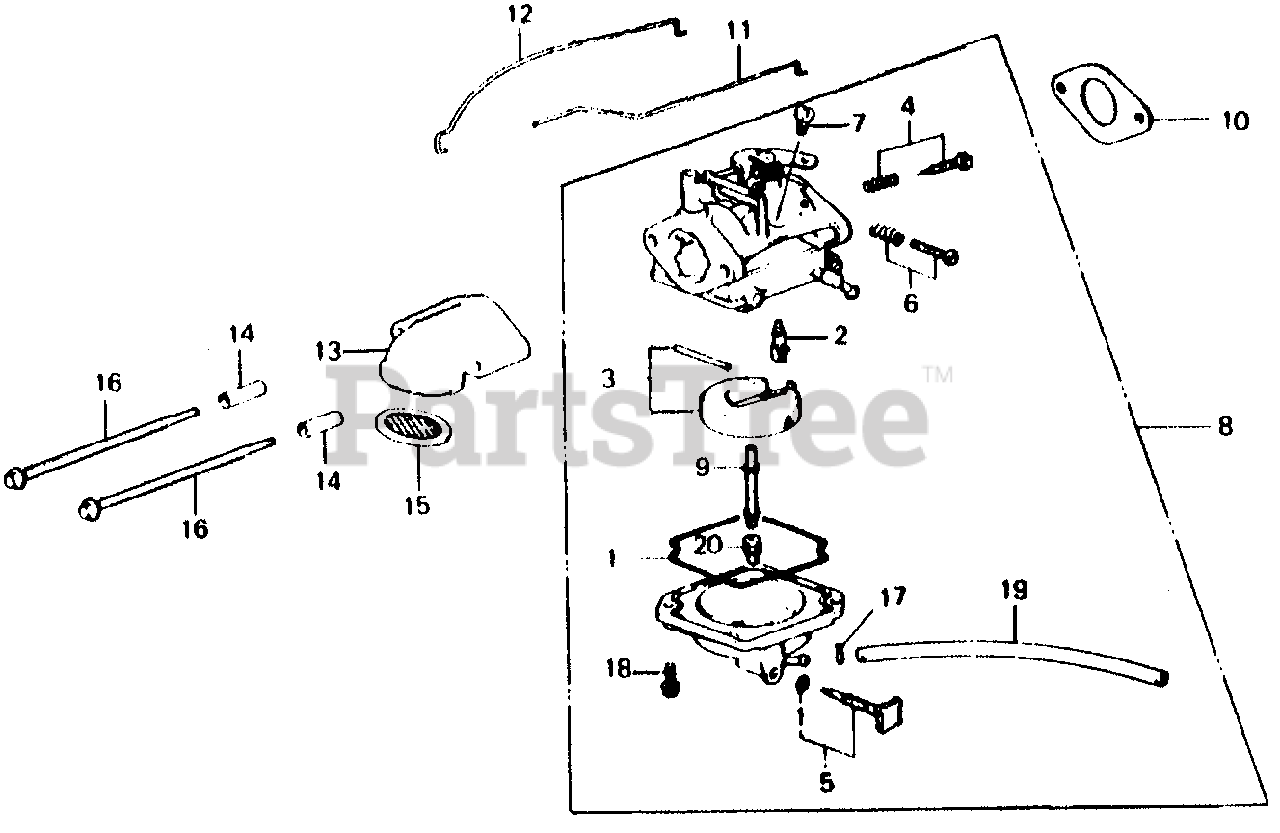

CARBURETOR + AIR GUIDE Parts Diagram

  • Title

1

Honda 16010-881-003

GASKET SET

$17.99

$

Usually ships in 3-6 days

0

2

Honda 16011-881-741

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$29.99

$

Usually ships in 3-6 days

0

3

Honda 16013-881-003

SEE PART DETAILS - PRI; FLOAT SET

$

$

Not available

4

Honda 16016-881-003

SEE PART DETAILS - SUP; SCREW SET A

$

$

Not available

5

Honda 16024-ZV1-A00

SCREW SET, DRAIN

$10.99

$

Usually ships in 3-6 days

0

6

Honda 16028-881-003

SCREW SET B (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

7

Honda 16071-881-003

SCREW, PLUG (NOT AVAILABLE)

Note: Use from Engine SN 1204945.

$

$

Currently unavailable

8

Honda 16100-881-033

CARBURETOR ASSY.

$

$

Not available

9

Honda 16166-881-003

NOZZLE, MAIN (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

10

Honda 16201-881-850

GASKET, CARBURETOR

$3.49

$

Usually ships in 3-6 days

0

11

Honda 16593-881-010

ROD, THROTTLE

$

$

Not available

12

Honda 16622-881-000

ROD, CHOKE

$

$

Not available

13

Honda 17201-881-010

GUIDE, AIR

Note: Use up to Engine SN 1204909.

$

$

Currently unavailable

13

Honda 17201-881-020

GUIDE, AIR (NOT AVAILABLE)

Note: Use from Engine SN 1204910.

$

$

Currently unavailable

14

Honda 17202-921-000

COLLAR, DISTANCE

$

$

Not available

15

Honda 17203-881-000

TRAP, FLAME

$

$

Not available

16

Honda 90012-882-010

BOLT, FLANGE (6X97)

$

$

Not available

17

Honda 90605-921-000

CLIP B7, TUBE

$1.49

$

In Stock, only 2 left!

0

18

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X140)

$29.99

$

In Stock, only 1 left!

0

20

Honda 99101-124-0720

JET, MAIN (#72)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 99101-124-0780

JET, MAIN (#78)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

20

Honda 99101-124-0800

JET, MAIN (#80)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 99101-124-0820

JET, MAIN (#82)

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

20

Honda 99101-124-0880

JET, MAIN (#88)

$10.99

$

Usually ships in 3-6 days

0
