BF100 A SA (B100) - Honda Marine Engine, Made in Japan (SN: B100-1200155 - B100-1205094) WATER PUMP + VERTICAL SHAFT Parts Diagram

Marine Engine, Made in Japan

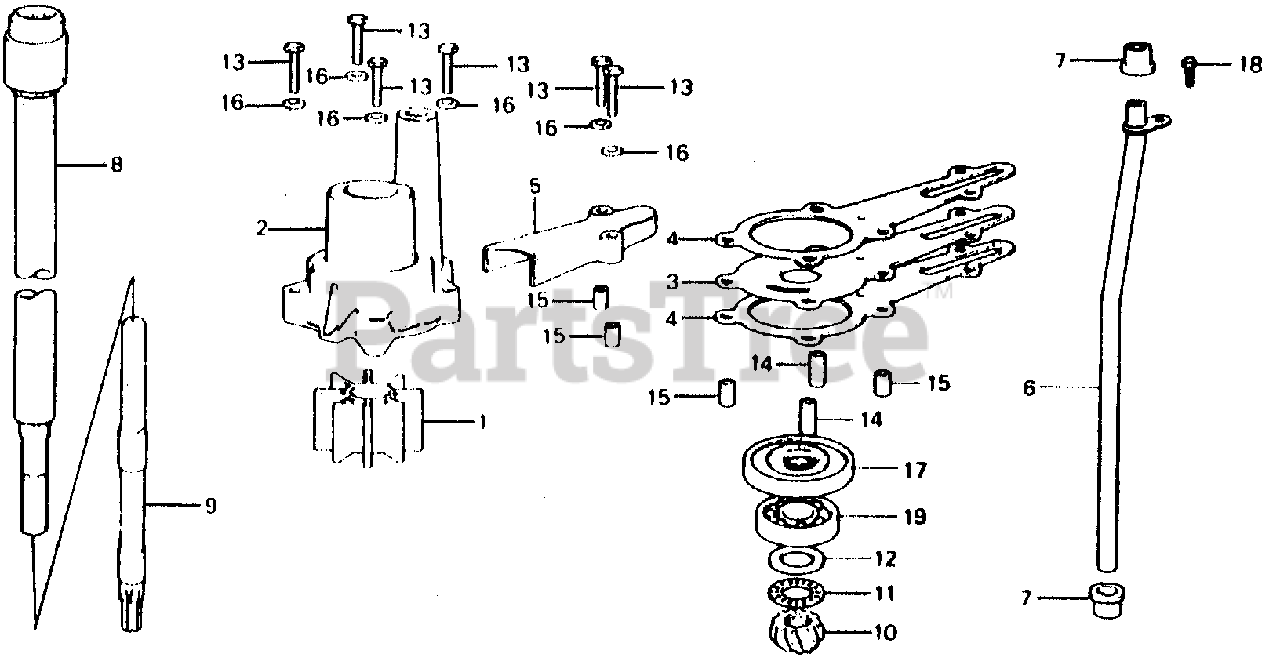

WATER PUMP + VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 19210-881-A02

SEE PART DETAILS - PRI; IMPELLER, PUMP

$29.99

$

Usually ships in 3-6 days

0

2

Honda 19220-881-305

HOUSING, IMPELLER

$133.99

$

Usually ships in 3-6 days

0

3

Honda 19231-881-840

SEE PART DETAILS - PRI; COVER, IMPELLER

$25.99

$

In Stock, only 1 left!

0

4

Honda 19232-881-306

GASKET, IMPELLER

$7.99

$

In Stock, Qty 15

0

5

Honda 19233-881-305

HOLDER, IMPELLER COVER

$21.99

$

Usually ships in 3-6 days

0

6

Honda 19251-881-010

TUBE, WATER (S) (NOT AVAILABLE)

$

$

Not available

7

Honda 19252-921-020

RING, SEAL

$4.49

$

In Stock, only 4 left!

0

8

Honda 41110-881-000

SHAFT, VERTICAL (S)
(Superseded to 41110-881-841)

$

$

Not available

8

Honda 41110-881-841

SEE PART DETAILS - PRI; SHAFT, VERTICAL (S)

$

$

Not available

9

Honda 41121-881-030

SHAFT, PINION

$

$

Not available

10

Honda 41131-881-000

PINION, BEVEL

$

$

Not available

11

Honda 41132-935-003

BEARING, THRUST (15MM)

$

$

Not available

12

Honda 41135-935-003

WASHER A, THRUST BEARING (2.00MM)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 41136-935-003

WASHER B, THRUST BEARING (2.05MM)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 41137-935-003

WASHER C, THRUST BEARING (2.10MM)

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

13

Honda 90108-881-000

BOLT, HEX. (6X28)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90111-935-000

COLLAR A, DISTANCE (NOT AVAILABLE)

$

$

Not available

15

Honda 90112-881-000

COLLAR B, DISTANCE

$6.49

$

Usually ships in 3-6 days

0

16

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 5

0

17

Honda 91252-935-004

SEAL, WATER (15MM) (NOK)

$20.99

$

In Stock, only 1 left!

0

18

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

$10.99

$

Usually ships in 3-6 days

0
