BF100 F LA (B100L) - Honda Marine Engine, Made in Japan (SN: B100L-1700001 - B100L-9999999) SHIFT SHAFT Parts Diagram

Marine Engine, Made in Japan

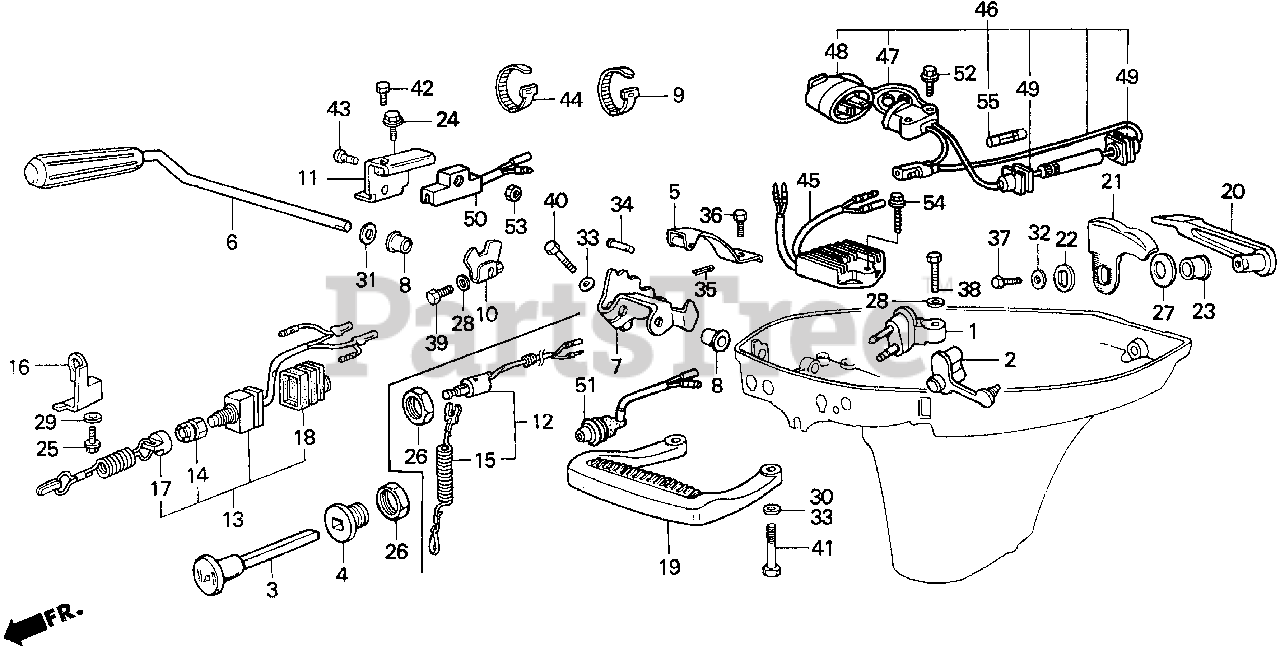

SHIFT SHAFT Parts Diagram

  • Title

1

Honda 17710-881-000ZC

CONNECTOR, FUEL *B107* (SENIOR BLUE) (NOT AVAILABLE)

$

$

Not available

2

Honda 17711-881-000

CAP, FUEL JOINT

$

$

Not available

3

Honda 17951-921-030

KNOB, CHOKE

$13.99

$

Usually ships in 3-6 days

0

4

Honda 17953-921-010

GUIDE, CHOKE KNOB

$6.99

$

Usually ships in 3-6 days

0

5

Honda 24210-921-000

SPRING, CLICK

$

$

Not available

6

Honda 24610-881-010

SEE PART DETAILS - PRI; SHAFT, SHIFT

$43.99

$

Usually ships in 3-6 days

0

7

Honda 24612-881-030

ARM, GEARSHIFT

$

$

Not available

8

Honda 24621-921-010

BUSH, SHAFT

$6.49

$

In Stock, only 1 left!

0

10

Honda 35110-881-000

PLATE, SWITCH SHIELD

$27.99

$

Usually ships in 3-6 days

0

11

Honda 35120-881-000

PLATE, SWITCH SETTING

$27.99

$

Usually ships in 3-6 days

0

19

Honda 50281-921-000ZC

HANDLE, CARRYING *B107* (SENIOR BLUE)

$

$

Not available

20

Honda 63201-935-000ZC

LEVER, COVER LOCK *B107* (SENIOR BLUE) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 63202-881-000

HOOK, COVER LOCK

$

$

Not available

22

Honda 63203-935-000

WASHER, COVER LOCK

$3.99

$

Usually ships in 3-6 days

0

23

Honda 63205-920-000

BUSH, COVER LOCK

$5.99

$

In Stock, only 1 left!

0

24

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 3 left!

0

26

Honda 90302-921-000

NUT, HEX. (16MM)

$5.49

$

In Stock, only 1 left!

0

27

Honda 90455-881-000

SPRING, LEVER

$4.49

$

Usually ships in 3-6 days

0

28

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 5

0

31

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90518-921-000

WASHER, PLAIN (8MM)

$1.99

$

In Stock, Qty 10

0

34

Honda 90754-921-010

PIN (5X17)

$10.99

$

Usually ships in 3-6 days

0

35

Honda 90756-921-000

PIN, COTTER (1.6MM)

$1.99

$

In Stock, Qty 5

0

36

Honda 92101-06012-0B

BOLT, HEX. (6X12)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 92101-06016-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 92000-06016-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X16)

$

$

Currently unavailable

38

Honda 92101-06020-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 92101-06028-4J

BOLT, HEX. (6X28)

$5.99

$

Usually ships in 3-6 days

0

40

Honda 92101-08028-4J

BOLT, HEX. (8X28)

$3.99

$

Usually ships in 3-6 days

0

41

Honda 92000-08032-4J

BOLT, HEX. (8X32) (NOT AVAILABLE)

$

$

Currently unavailable

43

Honda 93500-05020-4J

SCREW, PAN (5X20)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 95014-62100

BAND B1, CABLE

$1.99

$

Usually ships in 3-6 days

0
