BF100 F SA (B100S) - Honda Marine Engine, Made in Japan (SN: B100S-1700001 - B100S-1800000) STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

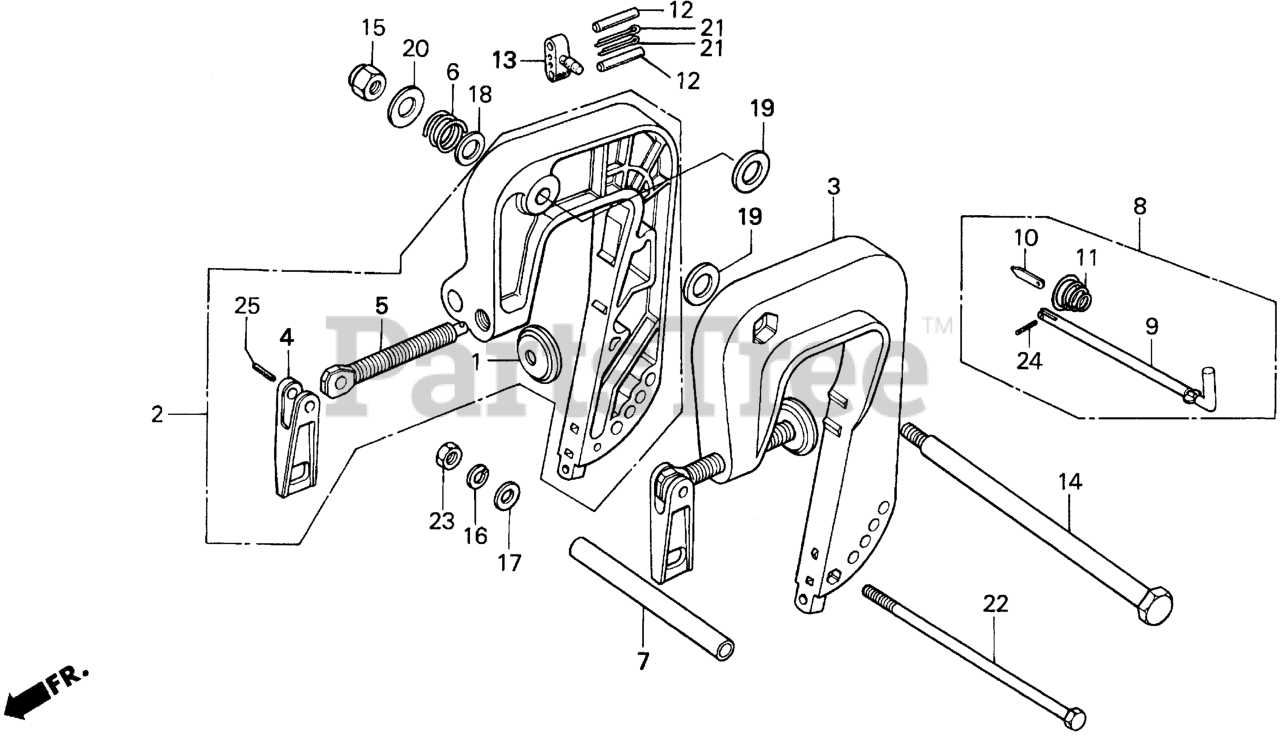

STERN BRACKET Parts Diagram

  • Title

1

Honda 50122-935-000

PLATE, PUSH

$6.99

$

Usually ships in 3-6 days

0

1

Honda 50122-935-010

SEE PART DETAILS - PRI; PLATE, PUSH

$6.99

$

Usually ships in 3-6 days

0

2

Honda 50300-881-000ZC

BRACKET, R. STERN *B107* (SENIOR BLUE)

$

$

Currently unavailable

3

Honda 50310-881-000ZC

BRACKET, L. STERN *B107* (SENIOR BLUE)

$

$

Currently unavailable

4

Honda 50323-921-300ZC

GRIP, CLAMP *B107* (SENIOR BLUE) (NOT AVAILABLE)

$

$

Not available

5

Honda 50325-881-300

SEE PART DETAILS - SUP; SCREW, CLAMP

$21.99

$

Usually ships in 3-6 days

0

6

Honda 50333-921-003

SPRING, TILT (NOT AVAILABLE)

$

$

Not available

7

Honda 50335-921-010

COLLAR, DISTANCE (6MM) (NOT AVAILABLE)

$

$

Not available

8

Honda 50340-921-000

ROD, ADJUSTING (N/A: SEE COMPONENTS)

$36.99

$

Usually ships in 3-6 days

0

9

Honda 50341-921-300

ROD, ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 50342-921-300

STOPPER, ROD (NOT AVAILABLE)

$

$

Not available

11

Honda 50343-921-300

SPRING, ADJUSTING ROD

$3.99

$

Usually ships in 3-6 days

0

12

Honda 58131-881-000

PIN, SHEAR

$5.49

$

In Stock, only 2 left!

0

13

Honda 88111-921-010

HOLDER, PARTS
(Superseded to 88111-ZVA-000)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90106-921-010

BOLT, TILTING

$25.99

$

Usually ships in 3-6 days

0

15

Honda 90301-921-000

NUT, SELF-LOCK (8MM) (NOT AVAILABLE)

$

$

Not available

16

Honda 90407-920-000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 2 left!

0

17

Honda 90504-921-010

WASHER, PLAIN (6MM) Use from Frame SN 4800713.

$1.99

$

In Stock, Qty 5

0

18

Honda 90511-921-000

WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90513-921-000

WASHER (10MM)

$2.49

$

In Stock, only 1 left!

0

20

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 10

0

21

Honda 90757-921-000

PIN, COTTER (3MM)
(Superseded to 90757-881-505)

$1.49

$

In Stock, only 2 left!

0

22

Honda 92101-06160-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X160)

$10.99

$

In Stock, only 2 left!

0

23

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

24

Honda 94305-20083

PIN, SPRING (2X8)

$0.99

$

Usually ships in 3-6 days

0

25

Honda 94305-40143

PIN, SPRING (4X14)

$1.99

$

In Stock, only 2 left!

0
