BF100 Z SA (BF100) - Honda Marine Engine, Made in Japan (SN: BF100-1100001 - BF100-1102210) FUEL PUMP Parts Diagram

Marine Engine, Made in Japan

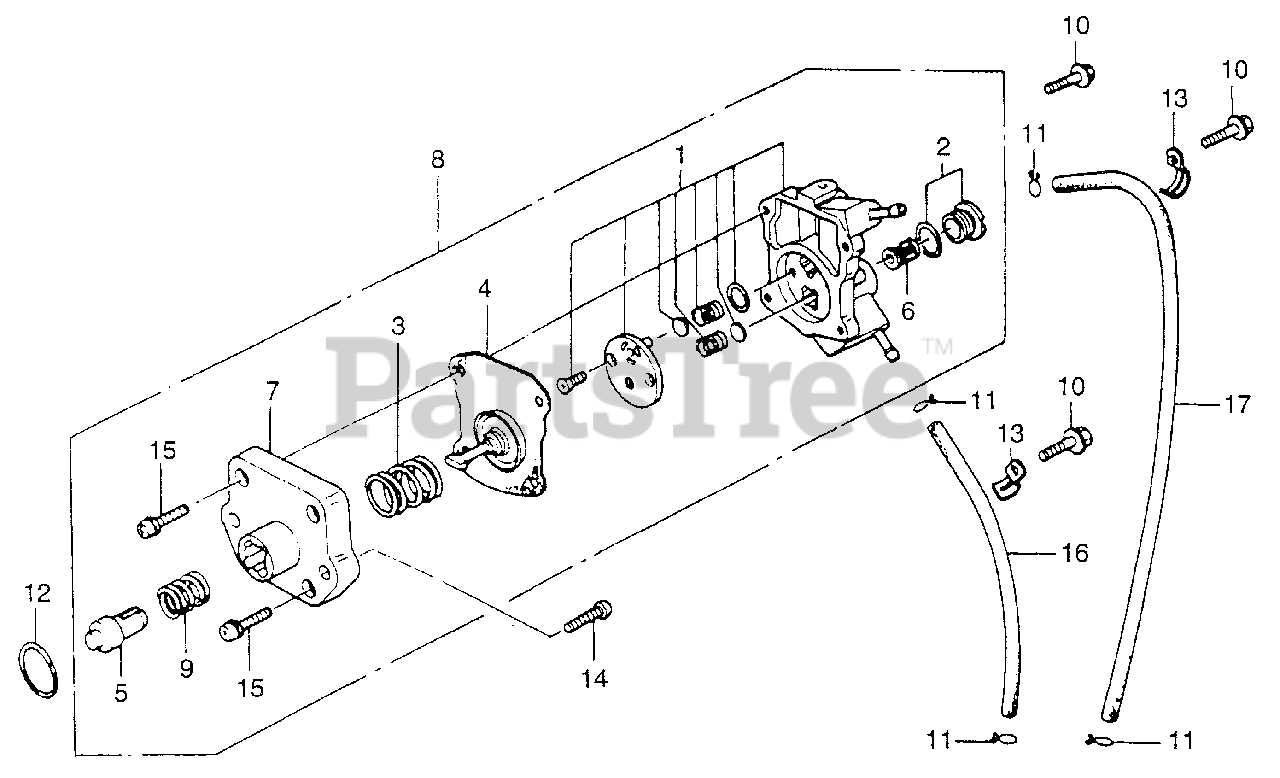

FUEL PUMP Parts Diagram

  • Title

1

Honda 16015-935-024

SEE PART DETAILS - SUP; BODY SET, PUMP
(Superseded to 16015-935-034)

Note: Use from Engine SN 1101261.

$66.99

$

Usually ships in 3-6 days

0

2

Honda 16016-935-004

BOLT SET, HOLDING

Note: Use from Engine SN 1101261.

$26.99

$

Usually ships in 3-6 days

0

3

Honda 16050-935-024

SPRING, DIAPHRAGM

Note: Use from Engine SN 1101261.

$

$

Not available

4

Honda 16181-935-024

DIAPHRAGM

Note: Use from Engine SN 1101261.

$

$

Not available

5

Honda 16182-935-014

SEE PART DETAILS - PRI; ROD, PUSH

Note: Use from Engine SN 1101261.

$

$

Not available

6

Honda 16194-935-004

SCREEN, FUEL STRAINER

Note: Use from Engine SN 1101261.

$10.99

$

Usually ships in 3-6 days

0

7

Honda 16195-935-014

BODY (LOWER)

Note: Use from Engine SN 1101261.

$

$

Not available

8

Honda 16700-935-325

SEE PART DETAILS - PRI; PUMP ASSY., FUEL (NOT AVAILABLE)

Note: Use from Engine SN 1101261.

$

$

Not available

9

Honda 16707-882-601

SPRING, PUSH ROD

Note: Use from Engine SN 1101261.

$

$

Not available

10

Honda 90123-881-000

BOLT, FLANGE (6X28)

Note: Use from Engine SN 1101261.

$

$

Not available

11

Honda 90602-921-000

CLIP, TUBE (B8)

Note: Use from Engine SN 1101261.

$2.49

$

Usually ships in 3-6 days

0

12

Honda 91351-MG7-003

SEE PART DETAILS - PRI; O-RING (20.8X2.4)

Note: Use from Engine SN 1101261.

$3.99

$

In Stock, only 2 left!

0

13

Honda 91403-881-000

CLIP, WIRE

Note: Use from Engine SN 1101261.

$7.99

$

Usually ships in 3-6 days

0

14

Honda 93500-06020-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X20)

Note: Use from Engine SN 1101261.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93892-04016-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X16)

Note: Use from Engine SN 1101261.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X320)

Note: Use from Engine SN 1101261.

$59.99

$

In Stock, Qty 8

0

17

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X400)

Note: Use from Engine SN 1101261.

$59.99

$

In Stock, Qty 8

0
