BF115 AK0 LA (BZBD) - Honda Marine Engine, Made in Japan (SN: BZBD-1800001 - BZBD-9999999) SWITCH PANEL KIT Parts Diagram

Marine Engine, Made in Japan

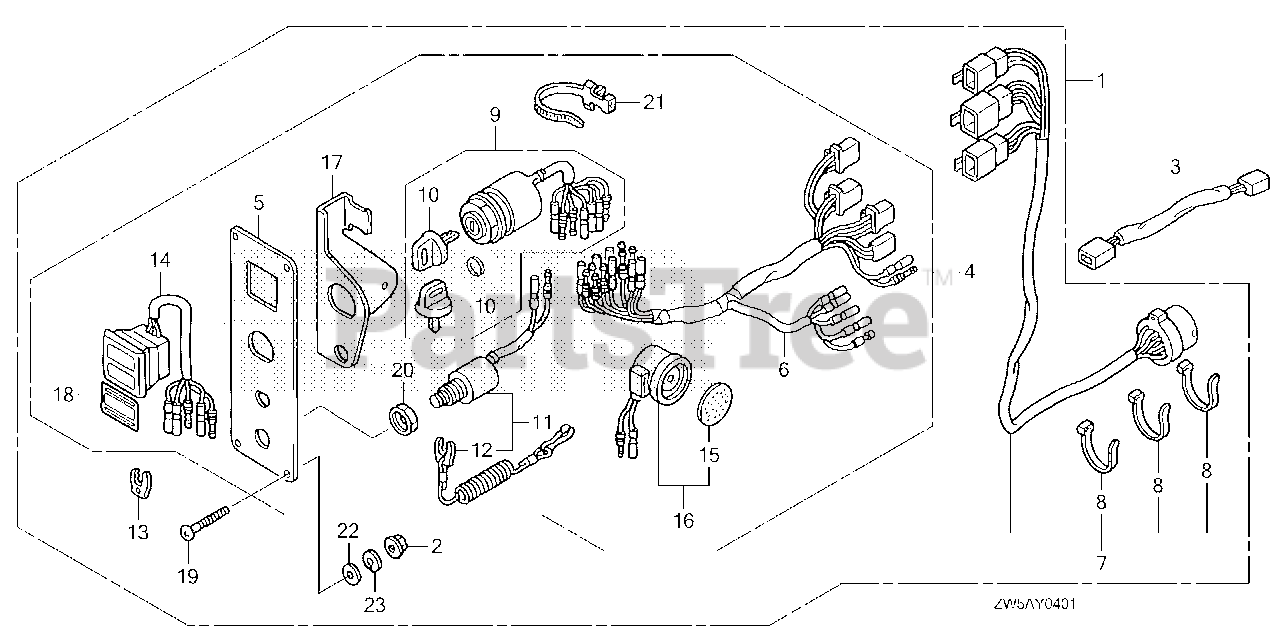

SWITCH PANEL KIT Parts Diagram

  • Title

1

Honda 06323-ZW5-644

PANEL KIT, SWITCH (SINGLE)

Note: (Optional). Use up to Frame SN 1800486.

$

$

Not available

1

Honda 06323-ZW5-647

PANEL KIT, SWITCH (SINGLE)

Note: (Optional). Use from Frame SN 1800487.

$997.99

$

Usually ships in 3-6 days

0

1

Honda 06323-ZW5-754

PANEL KIT, SWITCH (DUAL)

Note: (Optional). Use up to Frame SN 1800486.

$

$

Not available

1

Honda 06323-ZW5-755

PANEL KIT, SWITCH (DUAL)

Note: (Optional). Use from Frame SN 1800487 to 1801374.

$1912.99

$

Usually ships in 3-6 days

0

1

Honda 06323-ZW5-757

PANEL KIT, SWITCH (DUAL)

Note: (Optional). Use from Frame SN 1801375.

$2023.99

$

Usually ships in 3-6 days

0

2

Honda 18334-MT8-770

NUT, FLANGE (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

3

Honda 32167-ZW5-650

HARNESS ASSY., POWER TRIM-TILT DUAL QTY = (2) (SINGLE)

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

4

Honda 32340-ZW5-506

PANEL ASSY., CONTROL (2-LED)

Note: (Optional).

$289.99

$

Usually ships in 3-6 days

0

4

Honda 32340-ZW5-506

PANEL ASSY., CONTROL (2-LED)

Note: (Optional). Use from Frame SN 1800487.

$289.99

$

Usually ships in 3-6 days

0

5

Honda 32346-ZW1-505

SEE PART DETAILS - PRI; PANEL, CONTROL

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

6

Honda 32545-ZW1-V03

HARNESS ASSY., SWITCH PANEL DUAL QTY = (2) (SINGLE)

Note: (Optional).

$162.99

$

Usually ships in 3-6 days

0

7

Honda 32580-ZW2-D01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

Note: (Optional).

$312.99

$

Usually ships in 3-6 days

0

8

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL) DUAL QTY = (6) (SINGLE)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

9

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE)

Note: (Optional). Use up to Frame SN 1801374.

$213.99

$

Usually ships in 3-6 days

0

9

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION (SINGLE) (DUAL)

Note: (Optional). Use from Frame SN 1801375.

$132.99

$

Usually ships in 3-6 days

0

10

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE)

Note: (Optional). Use up to Frame SN 1801374.

$12.99

$

Usually ships in 3-6 days

0

11

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP (SINGLE) (DUAL)
(Superseded to 36180-ZV5-033)

Note: (Optional).

$88.99

$

Usually ships in 3-6 days

0

11

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).

$88.99

$

Usually ships in 3-6 days

0

12

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY DUAL QTY = (2) (SINGLE)
(Superseded to 36182-ZV4-651)

Note: (Optional). Use up to Frame SN 1800486.

$28.99

$

Usually ships in 3-6 days

0

12

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

Note: (Optional).

$28.99

$

Usually ships in 3-6 days

0

13

Honda 36187-ZV4-652

CLIP, EMERGENCY LOCK (SINGLE) (DUAL)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

14

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$186.99

$

Usually ships in 3-6 days

0

15

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

16

Honda 38410-ZV5-003

BUZZER, WARNING DUAL QTY = (2) (SINGLE)

Note: (Optional).

$87.99

$

Usually ships in 3-6 days

0

17

Honda 38414-ZW1-V02

BRACKET, BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

18

Honda 87120-ZW5-000

MARK, SWITCH PANEL DUAL QTY = (2) (SINGLE)
(Superseded to 87120-ZW5-010)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

19

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

22

Honda 94103-05400

WASHER, PLAIN (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-05400

WASHER, SPRING (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
