BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) BALANCER SHAFT Parts Diagram

Marine Engine, Made in Japan

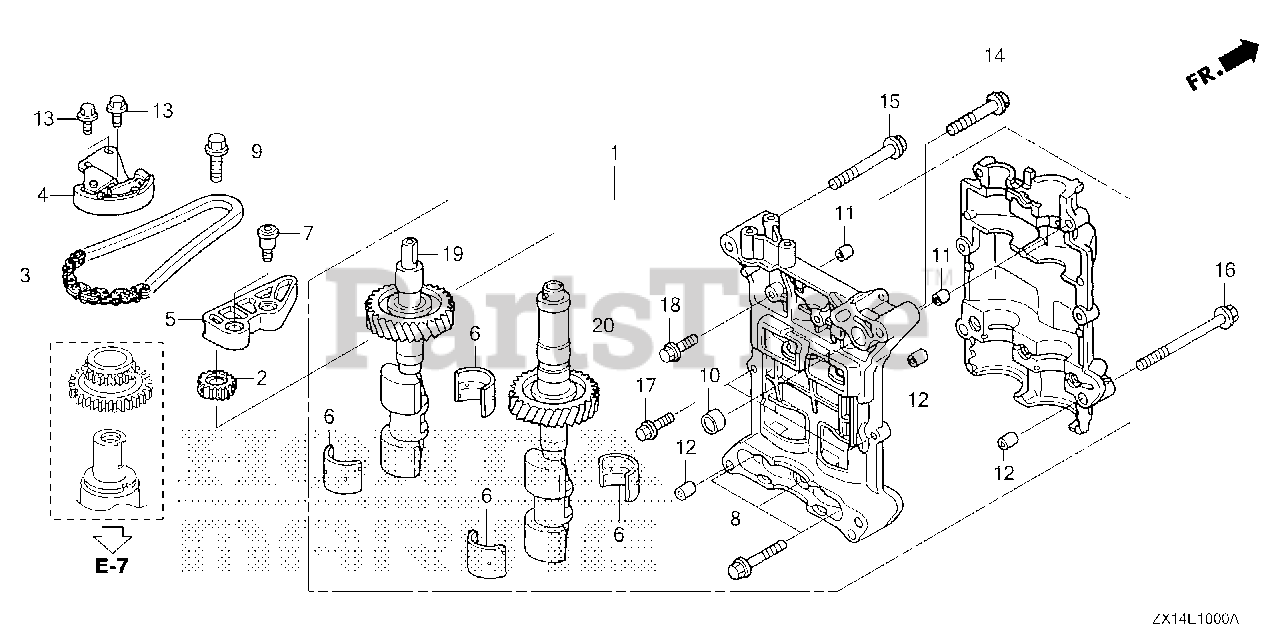

BALANCER SHAFT Parts Diagram

  • Title

1

Honda 13400-ZY6-010

SEE PART DETAILS - PRI; CASE ASSY., BALANCER HOLDER

$790.99

$

Usually ships in 3-6 days

0

2

Honda 13432-PNA-000

SPROCKET, DRIVEN (17T)

$41.99

$

Usually ships in 3-6 days

0

3

Honda 13441-PNA-004

CHAIN (62L)

$116.99

$

Usually ships in 3-6 days

0

4

Honda 13450-PNA-004

TENSIONER, BALANCER SHAFT CHAIN
(Superseded to 13450-RAA-A02)

$291.99

$

Usually ships in 3-6 days

0

4

Honda 13450-RAA-A02

TENSIONER, BALANCER SHAFT CHAIN

$291.99

$

Usually ships in 3-6 days

0

5

Honda 13460-PNA-004

GUIDE, BALANCER SHAFT CHAIN

$34.99

$

Usually ships in 3-6 days

0

6

Honda 15115-R40-A01

METAL, BALANCER SHAFT (DAIDO)

$28.99

$

Usually ships in 3-6 days

0

7

Honda 90004-PNA-000

BOLT, CHAIN GUIDE

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90020-ZY6-000

BOLT, FLANGE (8X55)

$5.49

$

Usually ships in 3-6 days

0

9

Honda 90031-PNA-004

SEE PART DETAILS - PRI; BOLT-WASHER (10X30)

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90701-ZY6-000

PIN, DOWEL (18X13)

$9.49

$

Usually ships in 3-6 days

0

11

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 94301-12160

PIN A, DOWEL (12X16)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2374742).

$2.49

$

In Stock, Qty 12

0

14

Honda 95701-08050-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 95701-08075-08

BOLT, FLANGE (8X75)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 95701-10105-08

BOLT, FLANGE (10X105)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 96300-06025-00

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 96300-06032-00

BOLT, FLANGE (6X32)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 13410-RAD-010

SHAFT, FR. BALANCER

$250.99

$

Usually ships in 3-6 days

0

20

Honda 13420-RAD-010

SHAFT, RR. BALANCER

$217.99

$

Usually ships in 3-6 days

0
