BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) CHAIN CASE@THERMOSTAT Parts Diagram

Marine Engine, Made in Japan

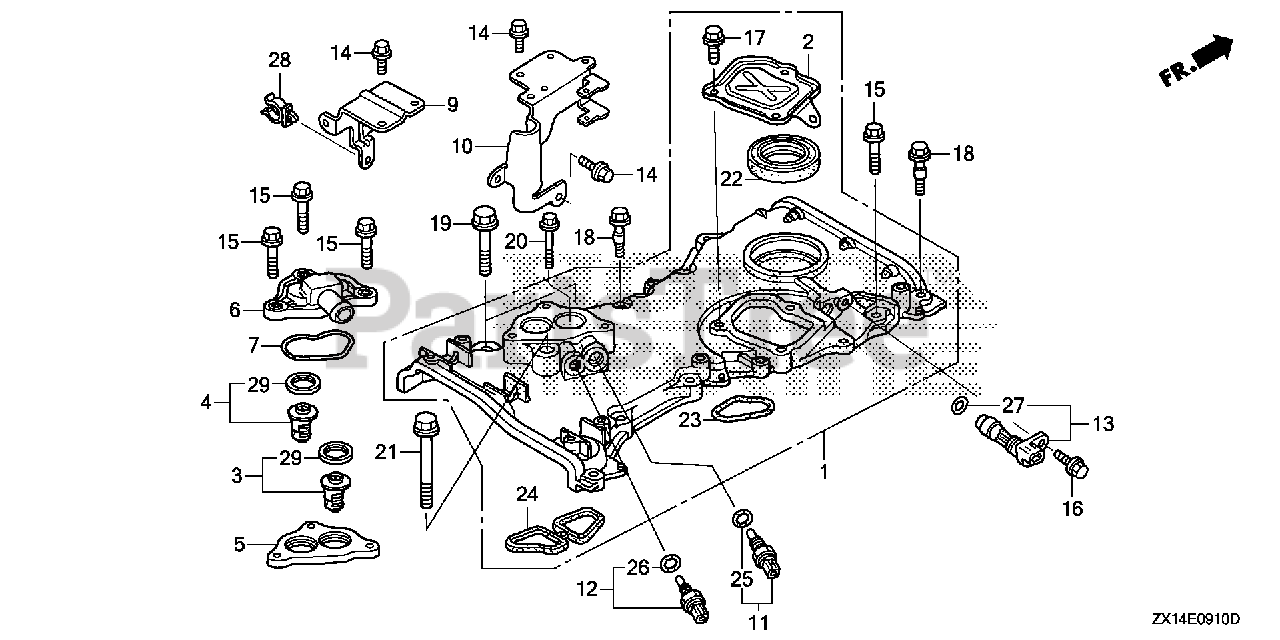

CHAIN CASE@THERMOSTAT Parts Diagram

  • Title

1

Honda 11410-ZY6-445ZA

CASE ASSY., CHAIN *NH8* (DARK GRAY)
(Superseded to 11410-ZY6-465ZA)

$418.99

$

Usually ships in 3-6 days

0

1

Honda 11410-ZY6-465ZA

CASE ASSY., CHAIN *NH8* (DARK GRAY)

$418.99

$

Usually ships in 3-6 days

0

2

Honda 11412-ZY6-000

COVER, CHAIN CASE

$14.99

$

Usually ships in 3-6 days

0

3

Honda 19300-ZY3-023

THERMOSTAT ASSY.

$46.99

$

In Stock, only 1 left!

0

4

Honda 19300-ZY6-003

THERMOSTAT ASSY.

$47.99

$

Usually ships in 3-6 days

0

5

Honda 06191-ZY6-000

SEE PART DETAILS - PRI; SPACER KIT, THERMOSTAT COVER
(Superseded to 06191-ZY6-010)

$

$

Not available

5

Honda 06191-ZY6-010

SPACER KIT, THERMOSTAT COVER

$

$

Not available

6

Honda 19315-ZY6-010

COVER, THERMOSTAT

$30.99

$

Usually ships in 3-6 days

0

7

Honda 19318-ZY6-010

GASKET, THERMOSTAT COVER
(Superseded to 19318-ZY6-003)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 32112-ZY6-000

BRACKET B, HARNESS CLIP

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32113-ZY6-000

BRACKET C, HARNESS CLIP

$39.99

$

Usually ships in 3-6 days

0

11

Honda 35673-ZW5-003

SENSOR ASSY., WATER TEMPERATURE

$24.99

$

Usually ships in 3-6 days

0

12

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$28.99

$

In Stock, only 1 left!

0

13

Honda 37500-PNB-003

SENSOR ASSY., CRANK

$216.99

$

Usually ships in 3-6 days

0

14

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

15

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 90023-ZY6-000

BOLT, SPECIAL (6X31)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90040-ZY3-000

BOLT, FLANGE (10X43)
(Superseded to 90040-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90059-ZY6-000

BOLT, FLANGE (6X38)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90162-ZW4-000

BOLT, FLANGE (10X70)
(Superseded to 90162-ZW4-030)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 91212-PNC-004

OIL SEAL (43X58X7) (ARAI)

$19.99

$

Usually ships in 3-6 days

0

23

Honda 91302-PNA-004

O-RING, CHAIN CASE

$9.99

$

Usually ships in 3-6 days

0

24

Honda 91304-ZY6-010

GASKET, CHAIN CASE

$8.99

$

Usually ships in 3-6 days

0

25

Honda 91307-PK2-005

O-RING (9.5X1.5) (HONDA KIKAKI)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 91333-PNA-003

O-RING (15X1.9)

$3.99

$

Usually ships in 3-6 days

0

28

Honda 91546-SP0-A01

CLAMP (18.5MM)

$7.99

$

Usually ships in 3-6 days

0

29

Honda 19303-ZW9-003

RUBBER, RING

$6.99

$

In Stock, only 1 left!

0

30

Honda 04104-ZY6-010

SEE PART DETAILS - PRI; CASE KIT, CHAIN
(Superseded to 04104-ZY6-040)

$627.99

$

Usually ships in 3-6 days

0

30

Honda 04104-ZY6-020

CASE KIT, CHAIN
(Superseded to 04104-ZY6-040)

$627.99

$

Usually ships in 3-6 days

0

30

Honda 04104-ZY6-030

CASE KIT, CHAIN
(Superseded to 04104-ZY6-040)

$627.99

$

Usually ships in 3-6 days

0

30

Honda 04104-ZY6-040

CASE KIT, CHAIN

$627.99

$

Usually ships in 3-6 days

0

32

Honda 32106-ZY6-305

SUB-WIRE HARNESS ASSY. (B)

Note: (Optional).

$67.99

$

Usually ships in 3-6 days

0

33

Honda 32107-ZY6-305

BRACKET, SUB-HARNESS CLIP

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

35

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0
