BF115 D LA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

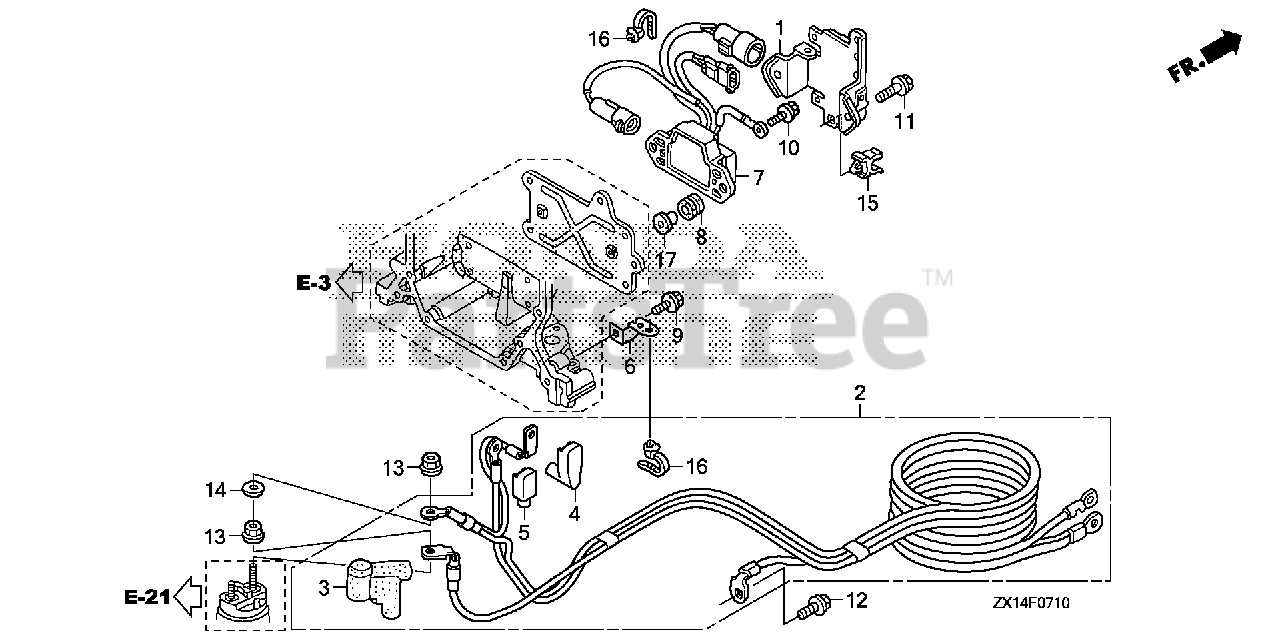

STARTER CABLE Parts Diagram

  • Title

1

Honda 32101-ZY6-000

BRACKET A, CONNECTOR

$59.99

$

Usually ships in 3-6 days

0

2

Honda 32410-ZY6-020

CABLE ASSY., STARTER

$756.99

$

Usually ships in 3-6 days

0

3

Honda 32411-ZY3-003

COVER, STARTER TERMINAL

$20.99

$

Usually ships in 3-6 days

0

4

Honda 32414-ZY6-300

COVER B, TERMINAL (L)

$6.49

$

Usually ships in 3-6 days

0

5

Honda 32414-ZY6-640

COVER B, TERMINAL

$5.99

$

Usually ships in 3-6 days

0

6

Honda 32419-ZY6-000

BRACKET B, CABLE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 38550-ZY6-003

RELAY ASSY., POWER TILT

$399.99

$

Usually ships in 3-6 days

0

8

Honda 38551-ZW1-000

GROMMET, RELAY

$9.99

$

Usually ships in 3-6 days

0

9

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 90107-ZY3-000

BOLT, FLANGE (8X18)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90405-ZY3-000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90687-SB2-003

CLIP, FUEL TUBE (14) (NOT AVAILABLE)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.99

$

In Stock, only 1 left!

0

17

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$4.49

$

Usually ships in 3-6 days

0
