BF115 D XA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1000001 - BBHJ-9999999) EXHAUST PIPE Parts Diagram

Marine Engine, Made in Japan

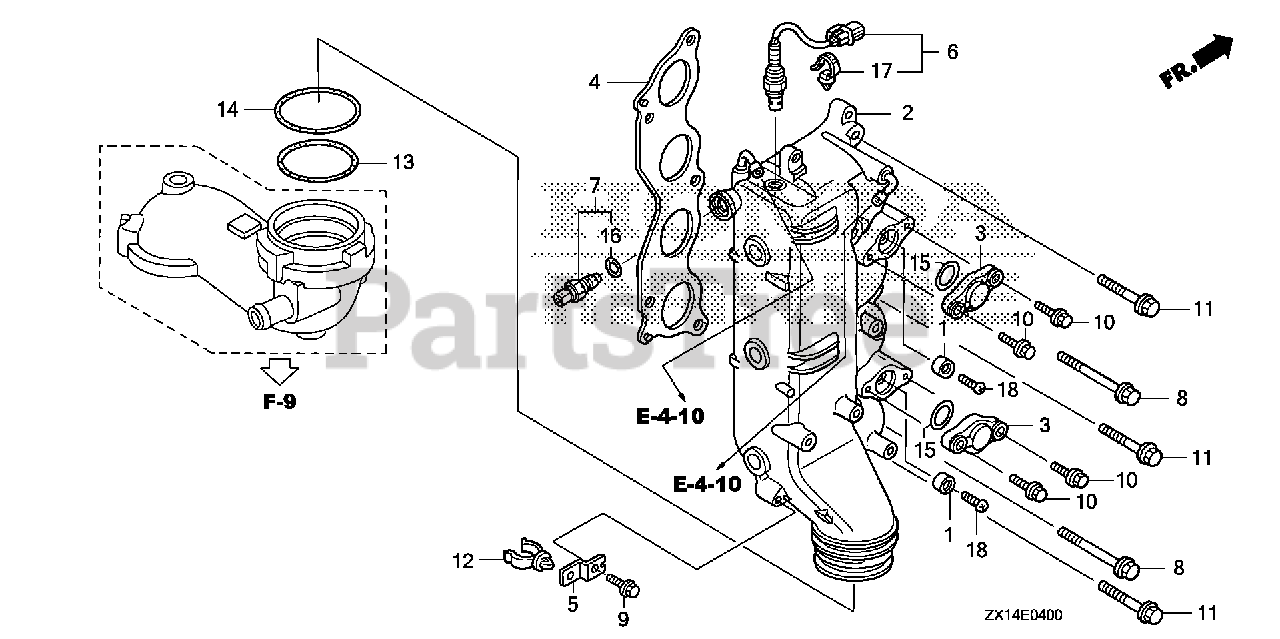

EXHAUST PIPE Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE
(Superseded to 12155-ZV5-010)

$14.99

$

In Stock, only 2 left!

0

2

Honda 18110-ZY6-415ZA

SEE PART DETAILS - PRI; MANIFOLD, EX. *NH8* (DARK GRAY)
(Superseded to 04106-ZY6-000ZA)

$212.99

$

Usually ships in 3-6 days

0

3

Honda 18112-ZY6-030ZA

COVER, EX. MANIFOLD *NH8* (DARK GRAY)

$41.99

$

Usually ships in 3-6 days

0

4

Honda 18115-ZY6-003

GASKET, EX. MANIFOLD

$50.99

$

Usually ships in 3-6 days

0

5

Honda 19268-ZY6-000

BRACKET, WATER TUBE CLAMP
(Superseded to 19268-ZY6-010)

$5.99

$

Usually ships in 3-6 days

0

6

Honda 35668-ZY6-003

SENSOR, LAF

$506.99

$

Usually ships in 3-6 days

0

7

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$34.99

$

Usually ships in 3-6 days

0

8

Honda 90013-ZY6-000

BOLT, FLANGE (10X75)
(Superseded to 90013-ZY9-M01)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90170-ZW4-000

BOLT, FLANGE (10X45)
(Superseded to 90170-ZW4-020)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90604-ZY6-003

CLAMP B, WATER TUBE

$8.49

$

Usually ships in 3-6 days

0

13

Honda 91301-ZY6-003

O-RING (76.4X3.1)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 91302-ZY6-003

O-RING (79.8X3.1)

$14.99

$

Usually ships in 3-6 days

0

15

Honda 91305-HN0-A00

O-RING (37X2.4)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 91307-PNA-003

O-RING (9.5X1.9)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 91540-SV4-003

CLIP, HARNESS BAND (145.2MM) (NATURAL)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 93500-06018-4J

SCREW, PAN (6X18)

$2.49

$

Usually ships in 3-6 days

0
