BF115 DK1 XA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-1100001 - BBHJ-9999999) METER KIT (ANALOG) Parts Diagram

Marine Engine, Made in Japan

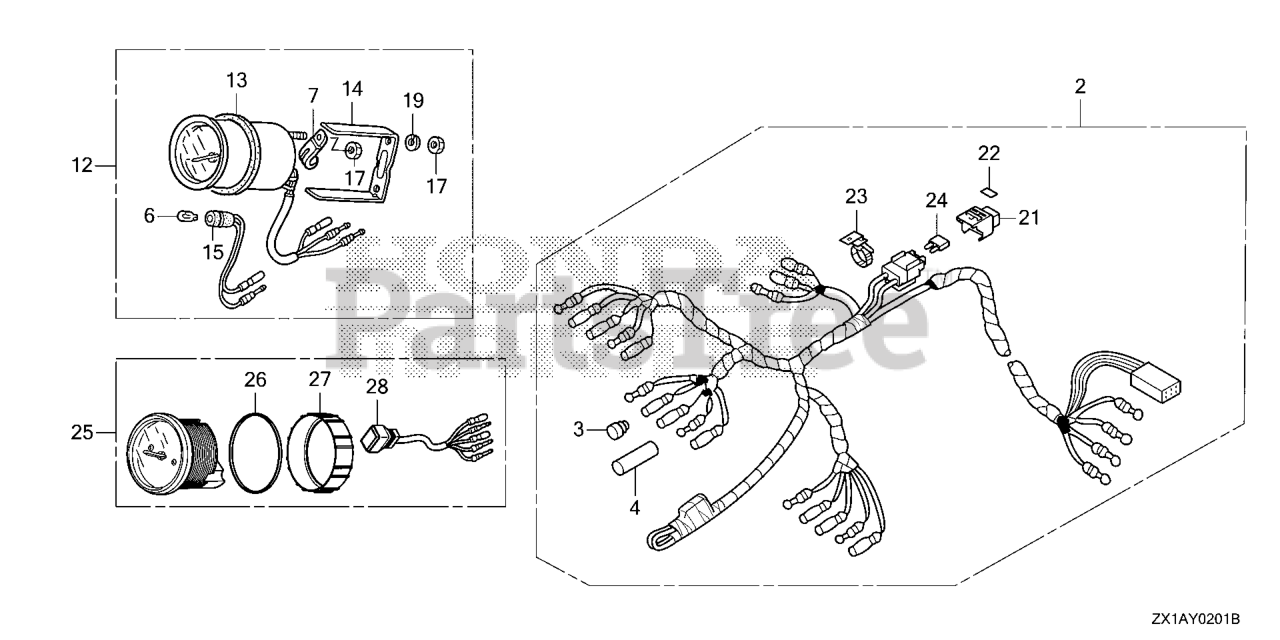

METER KIT (ANALOG) Parts Diagram

  • Title

1

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

Note: (Optional)

$3.49

$

In Stock, only 4 left!

0

2

Honda 32540-ZZ3-010

HARNESS ASSY., METER (A)

Note: (Optional)

$147.99

$

Usually ships in 3-6 days

0

3

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 34908-MG9-951

BULB, WEDGE BASE (12V1.7W) (TOSHIBA)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

7

Honda 37215-KM1-670

CLAMP

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 37250-ZV7-913

SEE PART DETAILS - PRI; TACHOMETER ASSY.

Note: (Optional)

$351.99

$

Usually ships in 3-6 days

0

9

Honda 37253-ZV5-821

GASKET

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 37256-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

11

Honda 37258-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

12

Honda 37260-ZV5-822

SEE PART DETAILS - PRI; METER ASSY., TRIM

Note: (Optional)

$355.99

$

Usually ships in 3-6 days

0

13

Honda 37263-ZV5-821

GASKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 37266-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

15

Honda 37268-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$26.99

$

Usually ships in 3-6 days

0

16

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 98200-11000

SEE PART DETAILS - PRI; FUSE A (10A)

Note: (Optional)

$2.99

$

In Stock, only 1 left!

0

21

Honda 38216-Z2E-003

COVER ASSY., FUSE

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 87116-ZZ3-000

LABEL, FUSE (10A)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

23

Honda 91531-SR3-003

HOLDER, CONNECTOR (128.6MM) (NATURAL)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

24

Honda 98200-41000

FUSE, MINI (10A)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 06375-ZY6-U10

TACHO METER KIT

Note: (Optional)

$167.99

$

Usually ships in 3-6 days

0

25

Honda 06375-ZY6-U90

TACHO METER KIT

Note: (Optional)

$167.99

$

Usually ships in 3-6 days

0

26

Honda 37251-ZY6-U11

CUSHION RUBBER

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 37252-ZY6-U11

RING

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

28

Honda 37253-ZY6-U11

WIRE ASSY.

Note: (Optional)

$16.99

$

Usually ships in 3-6 days

0
