BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

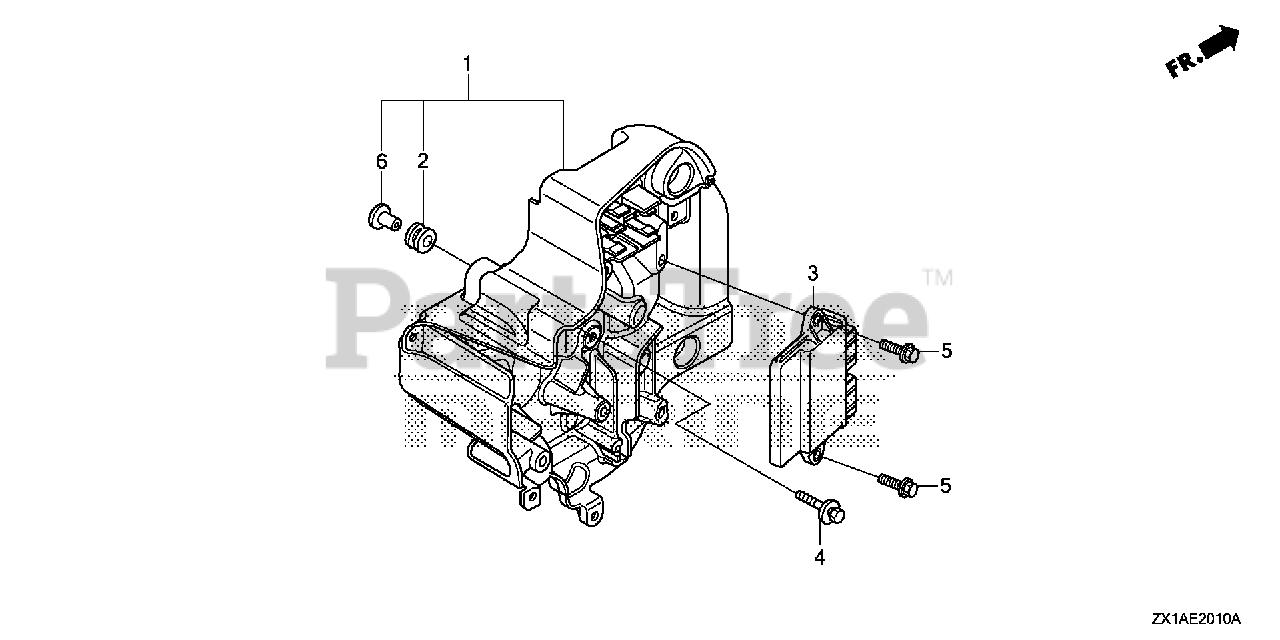

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title

1

Honda 30410-ZY6-000

CASE ASSY., ELECTRONIC PARTS
(Superseded to 30410-ZY6-030)

$148.99

$

Usually ships in 3-6 days

0

1

Honda 30410-ZY6-030

CASE ASSY.

$148.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.49

$

Usually ships in 3-6 days

0

3

Honda 34750-ZX1-A01

CONTROL UNIT, ELECTRONIC

Note: Use from Engine SN 1011824.

$1262.99

$

Usually ships in 3-6 days

0

3

Honda 34750-ZX1-033

SEE PART DETAILS - PRI; CONTROL UNIT, ELECTRONIC

Note: Use up to Engine SN 1011823.

$1399.99

$

Usually ships in 3-6 days

0

4

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

6

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.49

$

Usually ships in 3-6 days

0
