BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) GASKET KIT Parts Diagram

Marine Engine, Made in Japan

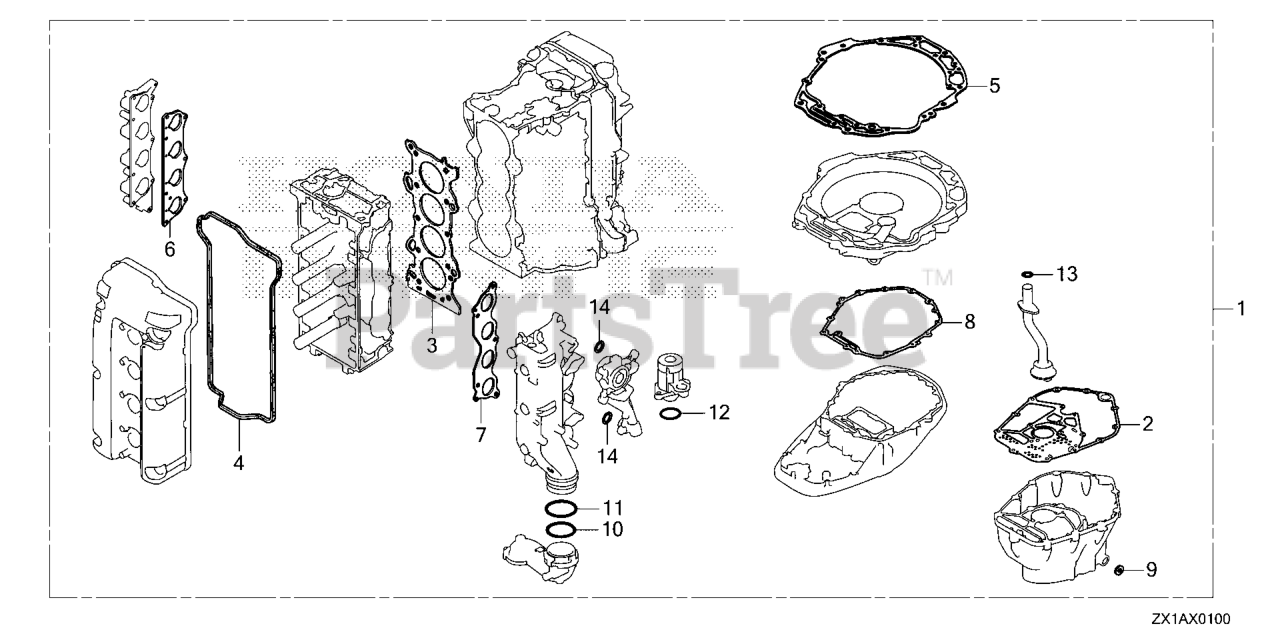

GASKET KIT Parts Diagram

  • Title

1

Honda 06115-ZY6-020

GASKET KIT (BF135
(Superseded to 06115-ZVT-000)

Note: (Optional)

$364.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZY6-010

GASKET, OIL PAN

Note: (Optional)

$86.99

$

Usually ships in 3-6 days

0

3

Honda 12251-ZY6-003

GASKET, CYLINDER HEAD

Note: (Optional)

$175.99

$

Usually ships in 3-6 days

0

4

Honda 12341-RTA-000

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

5

Honda 15112-ZY6-000

GASKET, OIL PUMP BODY

Note: (Optional)

$99.99

$

Usually ships in 3-6 days

0

6

Honda 17055-PNA-004

GASKET A, INJECTOR BASE

Note: (Optional)

$28.99

$

Usually ships in 3-6 days

0

7

Honda 18115-ZY6-003

GASKET, EX. MANIFOLD

Note: (Optional)

$41.99

$

Usually ships in 3-6 days

0

8

Honda 23172-ZY6-000

GASKET, MOUNT CASE

Note: (Optional)

$128.99

$

Usually ships in 3-6 days

0

9

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 91301-ZY6-003

O-RING (76.4X3.1)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 91302-ZY6-003

O-RING (79.8X3.1)

Note: (Optional)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 91303-ZY3-000

O-RING (59.4X3.1)

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

13

Honda 91324-PC6-000

O-RING (20.6X2.6)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 91360-VD6-003

O-RING (22.5X2.4)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
