BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

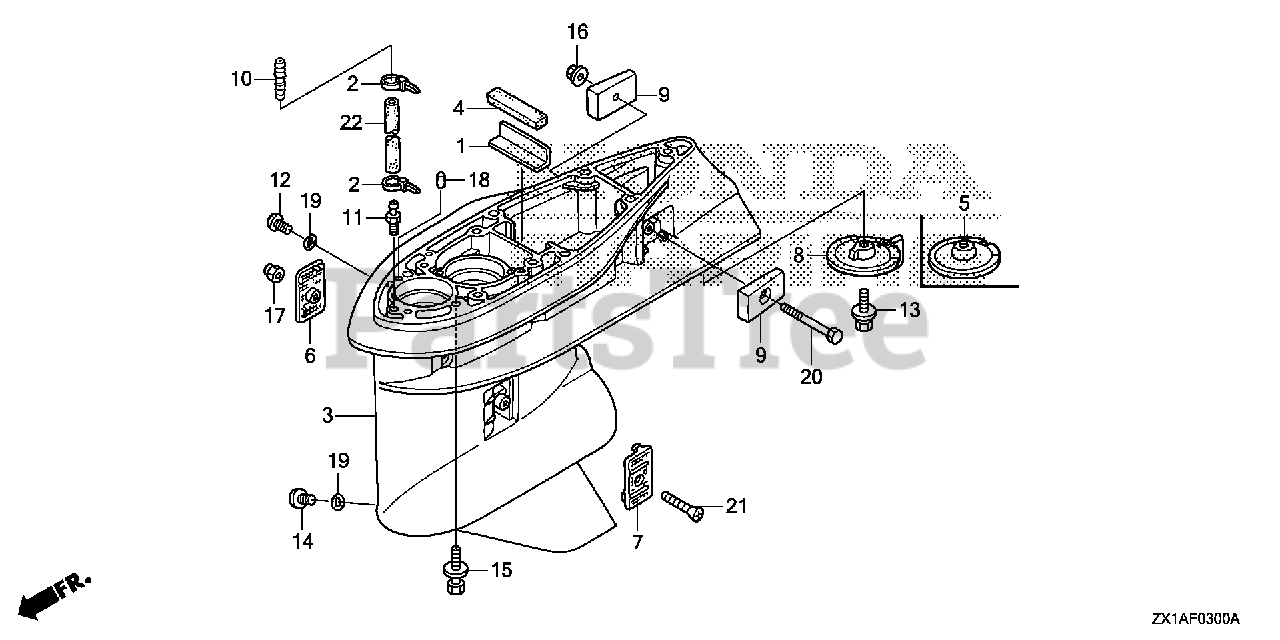

GEAR CASE Parts Diagram

  • Title

1

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$7.99

$

Usually ships in 3-6 days

0

2

Honda 32161-KM3-003

BAND, WIRE

$3.49

$

Usually ships in 3-6 days

0

3

Honda 41101-ZY6-020ZB

CASE, GEAR *NHB14M* (AQUA MARINE SILVER METALLIC)

$1308.99

$

Usually ships in 3-6 days

0

3

Honda 41101-ZY6-020ZD

CASE,GEAR*NH565*

$1063.99

$

Usually ships in 3-6 days

0

4

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$7.99

$

Usually ships in 3-6 days

0

5

Honda 41102-ZX2-E00ZA

COVER, GEAR CASE *NHB14M* (AQUA MARINE SILVER METALLIC)

$45.99

$

Usually ships in 3-6 days

0

5

Honda 41102-ZX2-E00ZD

COVER, GEAR CASE *NH565* (GRAND PRIX WHITE)

$43.99

$

Usually ships in 3-6 days

0

6

Honda 41104-ZY6-010

SCREEN, R. WATER

$12.99

$

Usually ships in 3-6 days

0

7

Honda 41105-ZY6-010

SCREEN, L. WATER

$12.99

$

Usually ships in 3-6 days

0

9

Honda 41109-ZW1-B00

METAL, ANODE

$22.99

$

Usually ships in 3-6 days

0

10

Honda 41171-ZV5-000

END, NIPPLE

$7.99

$

Usually ships in 3-6 days

0

11

Honda 41172-ZV5-000

NIPPLE, SENSOR

$9.99

$

In Stock, only 1 left!

0

12

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90103-ZY6-000

BOLT-WASHER (10X32)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$18.99

$

Usually ships in 3-6 days

0

15

Honda 90123-ZY6-000

BOLT-WASHER (10X40)

$8.49

$

Usually ships in 3-6 days

0

16

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.49

$

Usually ships in 3-6 days

0

18

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 3 left!

0

20

Honda 92101-06050-4J

BOLT, HEX. (6X50)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 93700-05050-4J

SCREW, OVAL (5X50)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X250)

$29.99

$

Usually ships in 3-6 days

0
