BF115 DK1 XCA (BBHJ) - Honda Marine Engine, Made in Japan (SN: BBHJ-8100001 - BBHJ-9999999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

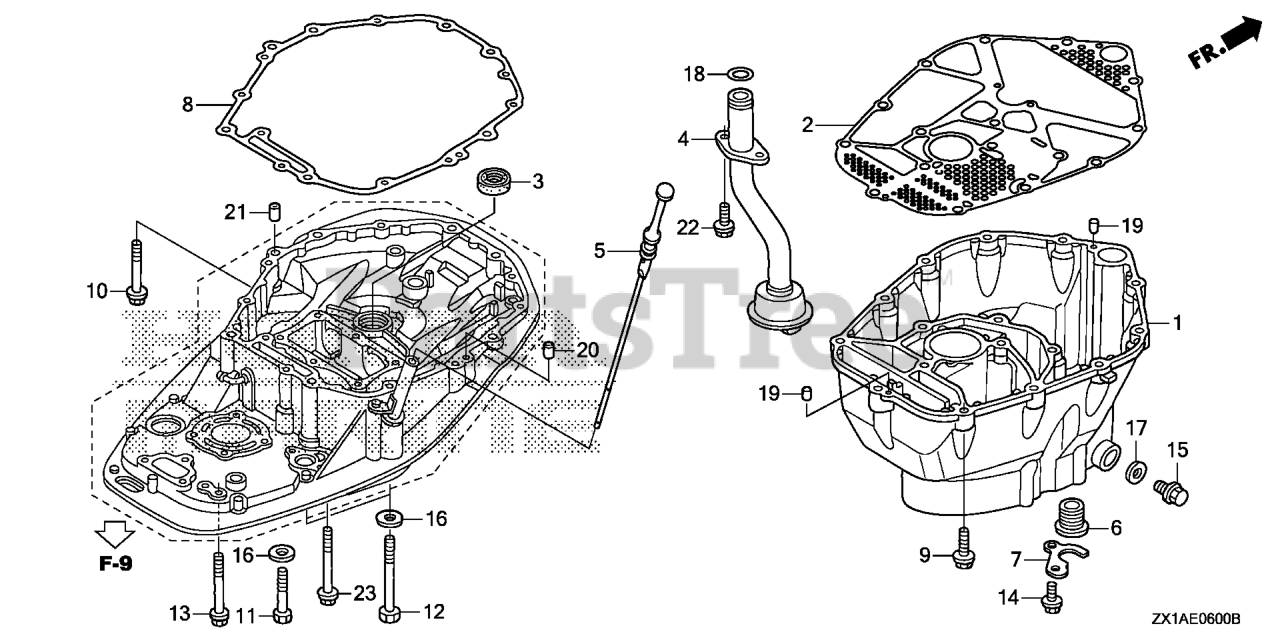

OIL PAN Parts Diagram

  • Title

1

Honda 11321-ZY6-010ZB

SEE PART DETAILS - SUP; CASE, OIL *TGRAY* (GRAY)
(Superseded to 11321-ZY6-020ZB)

Note: Use up to Engine SN 1007656.

$641.99

$

Usually ships in 3-6 days

0

1

Honda 11321-ZY6-020ZB

SEE PART DETAILS - PRI; CASE, OIL *TGRAY* (GRAY)

Note: Use up to Engine SN 1007656.

$641.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZY6-010

GASKET, OIL PAN

$86.99

$

Usually ships in 3-6 days

0

3

Honda 15113-ZW5-000

RUBBER, OIL PUMP

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15220-ZY6-010

STRAINER, OIL

$83.99

$

Usually ships in 3-6 days

0

5

Honda 15655-ZY6-010

DIPSTICK, OIL

$17.99

$

Usually ships in 3-6 days

0

6

Honda 19252-ZW1-000

GROMMET, WATER TUBE

$9.49

$

Usually ships in 3-6 days

0

7

Honda 19254-ZY6-000

PLATE, WATER TUBE

$4.49

$

Usually ships in 3-6 days

0

8

Honda 23172-ZY6-000

GASKET, MOUNT CASE

$128.99

$

Usually ships in 3-6 days

0

9

Honda 90002-ZY6-000

BOLT, FLANGE (10X40)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 90017-ZY6-000

BOLT, FLANGE (10X80)

$9.99

$

Usually ships in 3-6 days

0

11

Honda 90018-ZY6-000

BOLT, HEX. (12X70)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90019-ZY6-000

BOLT, HEX. (12X130)

$13.99

$

Usually ships in 3-6 days

0

13

Honda 90046-ZY3-000

BOLT, FLANGE (8X100)

$9.49

$

Usually ships in 3-6 days

0

14

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$9.49

$

Usually ships in 3-6 days

0

16

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

$3.49

$

Usually ships in 3-6 days

0

18

Honda 91324-PC6-000

O-RING (20.6X2.6)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 94301-06100

SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256).

$2.99

$

Usually ships in 3-6 days

0

20

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$2.99

$

In Stock, only 3 left!

0

21

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$1.99

$

In Stock, Qty 6

0

23

Honda 95701-10110-09

BOLT, FLANGE (10X110)

$3.99

$

Usually ships in 3-6 days

0
