BF115 J LDA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) EXHAUST PIPE Parts Diagram

Marine Engine, Made in Japan

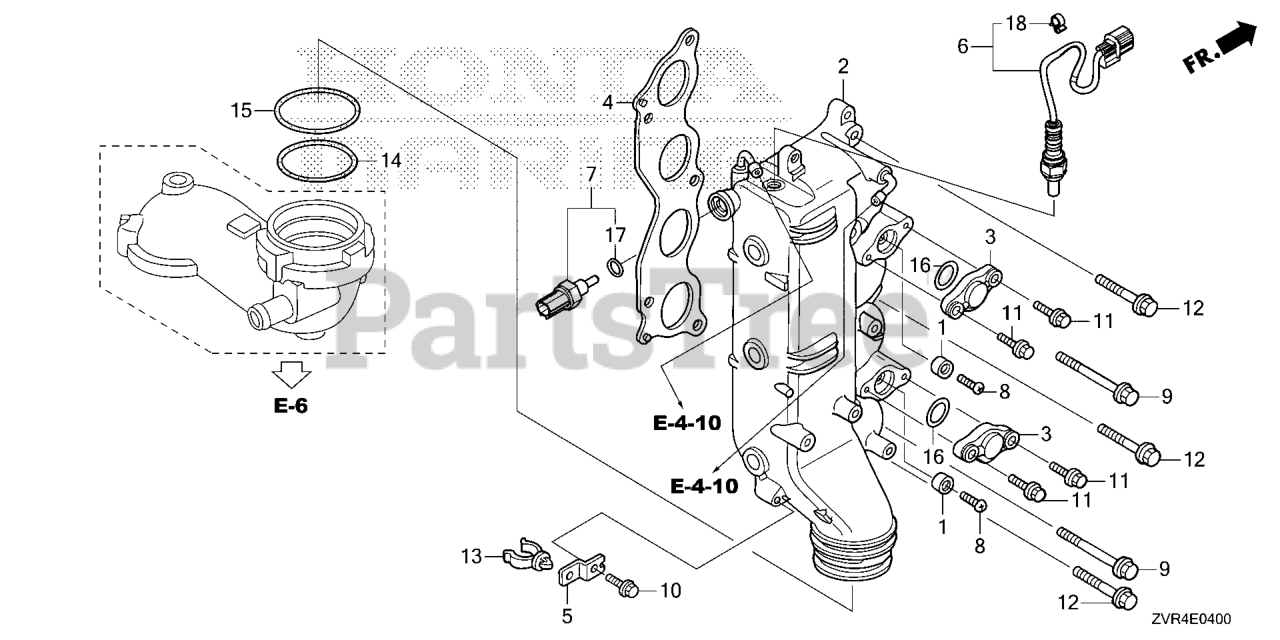

EXHAUST PIPE Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 18110-ZVT-405ZA

MANIFOLD COMP *NH8*

$143.99

$

Usually ships in 3-6 days

0

3

Honda 18112-ZY6-030ZA

COVER, EX. MANIFOLD *NH8* (DARK GRAY)

$37.99

$

Usually ships in 3-6 days

0

4

Honda 18115-ZY6-003

GASKET, EX. MANIFOLD

$41.99

$

Usually ships in 3-6 days

0

5

Honda 19268-ZVT-000

BRACKET

$6.99

$

Usually ships in 3-6 days

0

6

Honda 35655-ZY9-H01

SENSOR, OXYGEN

$408.99

$

Usually ships in 3-6 days

0

7

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$28.99

$

In Stock, only 1 left!

0

8

Honda 90004-ZX2-000

BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90013-ZY9-M01

BOLT, FLANGE (10X75)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90021-ZZ5-M01

BOLT, FLANGE (6X14)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90030-ZZ5-M01

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90170-ZW4-030

BOLT, FLANGE (10X45)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90604-ZY6-003

CLAMP B, WATER TUBE

$7.49

$

Usually ships in 3-6 days

0

14

Honda 91301-ZY6-003

O-RING (76.4X3.1)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 91302-ZY6-003

O-RING (79.8X3.1)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91305-HN0-A00

O-RING (37X2.4)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0
