BF115 J XRA (BBWJ) - Honda Marine Engine, Made in Japan (SN: BBWJ-1000001 - BBWJ-9999999) METER Parts Diagram

Marine Engine, Made in Japan

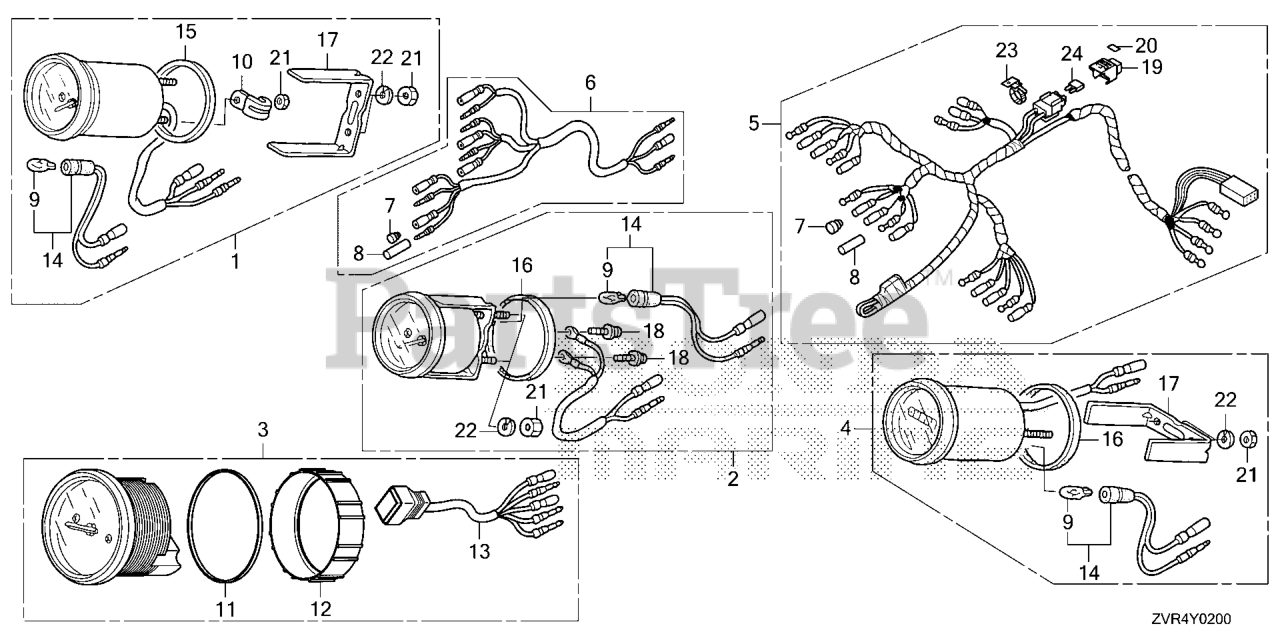

METER Parts Diagram

  • Title

1

Honda 06372-ZW5-U01

SEE PART DETAILS - PRI; METER KIT, TRIM (WHITE)
(Superseded to 06372-ZW5-U02)

Note: (Optional)

$124.99

$

Usually ships in 3-6 days

0

1

Honda 06372-ZW5-U11

METER KIT, TRIM (B) (BLACK)
(Superseded to 06372-ZW5-U12)

Note: (Optional)

$289.99

$

Usually ships in 3-6 days

0

2

Honda 06374-ZW5-U00

METER KIT, VOLT (WHITE)
(Superseded to 06374-ZW5-U01)

Note: (Optional)

$81.99

$

Usually ships in 3-6 days

0

2

Honda 06374-ZW5-U10

METER KIT, VOLT *NHA85* (B) (BLACK)

Note: (Optional)

$68.99

$

Usually ships in 3-6 days

0

3

Honda 06375-ZY6-U10

TACHO METER KIT

Note: (Optional)

$167.99

$

Usually ships in 3-6 days

0

3

Honda 06375-ZY6-U90

TACHO METER KIT

Note: (Optional)

$167.99

$

Usually ships in 3-6 days

0

4

Honda 06397-ZW5-U00

METER KIT, HOUR (WHITE) (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional)

$

$

Currently unavailable

4

Honda 06397-ZW5-U10

METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional)

$

$

Currently unavailable

5

Honda 32540-ZZ3-010

HARNESS ASSY., METER (A)

Note: (Optional)

$151.99

$

Usually ships in 3-6 days

0

6

Honda 32550-ZW5-U00

HARNESS ASSY., METER (B)

Note: (Optional)

$51.99

$

Usually ships in 3-6 days

0

7

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 34908-MG9-951

BULB, WEDGE BASE (12V1.7W) (TOSHIBA)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 37215-KM1-670

CLAMP

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 37251-ZY6-U11

CUSHION RUBBER

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 37252-ZY6-U11

RING

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 37253-ZY6-U11

WIRE ASSY.

Note: (Optional)

$17.99

$

Usually ships in 3-6 days

0

14

Honda 37258-ZW5-U01

SOCKET

Note: (Optional)

$20.99

$

Usually ships in 3-6 days

0

15

Honda 37263-ZV5-821

GASKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 37264-ZV5-821

GASKET

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 37266-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$25.99

$

Usually ships in 3-6 days

0

18

Honda 37305-KE5-008

SCREW-WASHER (3X22)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 38216-Z2E-003

COVER ASSY., FUSE

Note: (Optional)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 87116-ZZ3-000

LABEL, FUSE (10A)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 91531-SR3-003

HOLDER, CONNECTOR (128.6MM) (NATURAL)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

24

Honda 98200-41000

FUSE, MINI (10A)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
