BF130 A2 XA (BZBE) - Honda Marine Engine, Made in Japan (SN: BZBE-1300001 - BZBE-1400000) FUEL TANK Parts Diagram

Marine Engine, Made in Japan

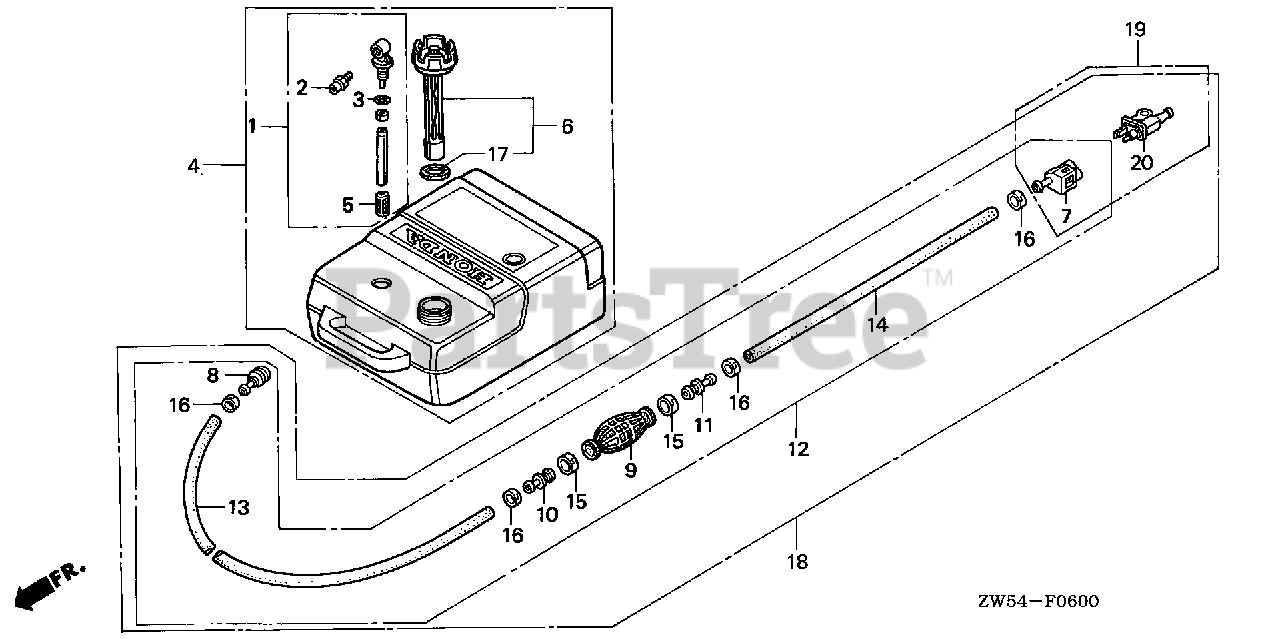

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV5-901

SEE PART DETAILS - SUP; JOINT ASSY., FUEL Use up to Frame SN 1303827.
(Superseded to 16900-ZV5-902)

$36.99

$

Usually ships in 3-6 days

0

1

Honda 16900-ZV5-902

SEE PART DETAILS - PRI; JOINT ASSY., FUEL Use from Frame SN 1303828.

$36.99

$

Usually ships in 3-6 days

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

$17.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-900

SEE PART DETAILS - SUP; O-RING Use up to Frame SN 1303827.

$0.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-901

SEE PART DETAILS - PRI; O-RING Use from Frame SN 1303828.

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV5-904

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-711)

$235.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-900

SEE PART DETAILS - SUP; FILTER, FUEL Use up to Frame SN 1303827.
(Superseded to 17583-ZV5-901)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-901

SEE PART DETAILS - PRI; FILTER, FUEL

$2.99

$

Usually ships in 3-6 days

0

6

Honda 17620-ZV5-900

SEE PART DETAILS - SUP; CAP, FUEL FILLER Use up to Frame SN 1303827.
(Superseded to 17620-ZV5-903)

$

$

Not available

6

Honda 17620-ZV5-901

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZV5-903)

$

$

Not available

7

Honda 17650-ZW9-003

SEE PART DETAILS - SUP; CONNECTOR ASSY., FUEL (A)

$

$

Currently unavailable

7

Honda 17650-ZW9-013

SEE PART DETAILS - SUP; CONNECTOR ASSY., FUEL (A)
(Superseded to 17650-ZW9-023)

$42.99

$

Usually ships in 3-6 days

0

7

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

$42.99

$

Usually ships in 3-6 days

0

8

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL

$39.99

$

Usually ships in 3-6 days

0

9

Honda 17661-921-000

SEE PART DETAILS - SUP; BULB, PRIMER
(Superseded to 17661-921-010)

$16.99

$

Usually ships in 3-6 days

0

9

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

$16.99

$

Usually ships in 3-6 days

0

10

Honda 17665-ZV5-000

VALVE, IN.

$14.99

$

Usually ships in 3-6 days

0

11

Honda 17680-ZV4-000

VALVE, OUTLET

$14.99

$

Usually ships in 3-6 days

0

12

Honda 17700-ZW9-030

SEE PART DETAILS - PRI; TUBE ASSY., FUEL

$79.99

$

In Stock, only 1 left!

0

13

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000)

$58.99

$

Usually ships in 3-6 days

0

14

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 17704-ZV4-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (12.5MM)
(Superseded to 17704-ZV4-010)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 17624-ZV5-900

GASKET, FUEL CAP Use up to Frame SN 1303827.

$

$

Not available

17

Honda 17624-ZV5-901

GASKET, FUEL CAP Use from Frame SN 1303828.

$8.49

$

Usually ships in 3-6 days

0

20

Honda 17710-ZW9-033

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (B)

$56.99

$

Usually ships in 3-6 days

0
