BF135 A4 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1000001 - BASJ-1099999) CHAIN CASE + THERMOSTAT Parts Diagram

Marine Engine, Made in Japan

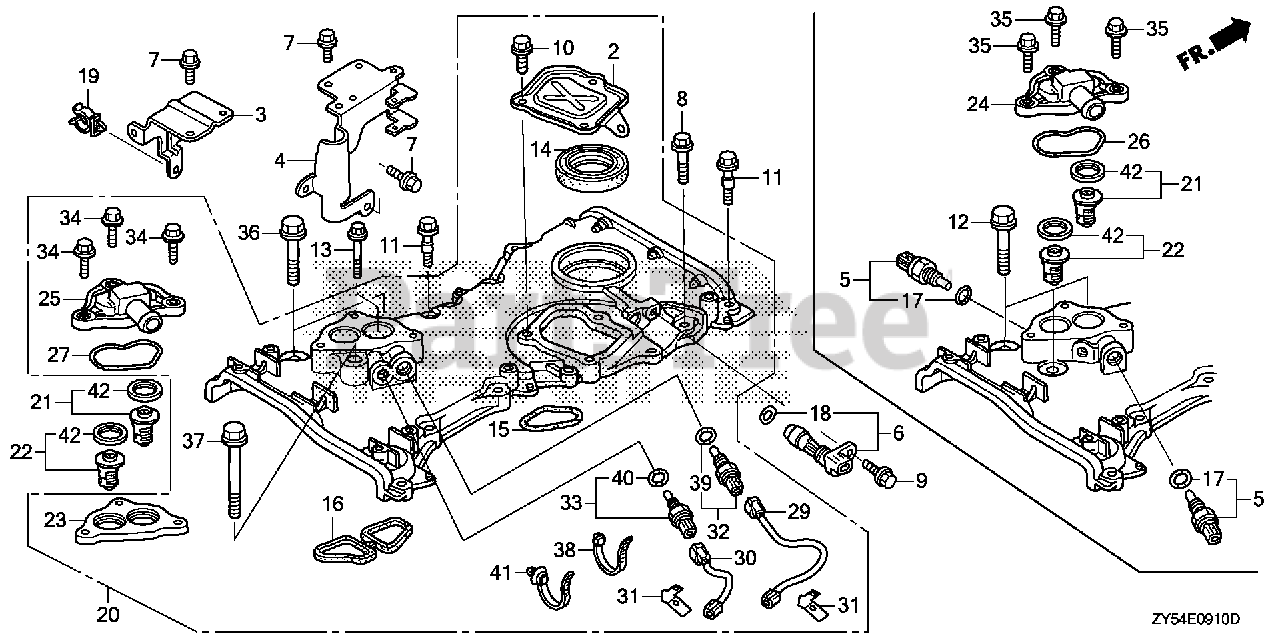

CHAIN CASE + THERMOSTAT Parts Diagram

  • Title

2

Honda 11412-ZY6-000

COVER, CHAIN CASE

$14.99

$

Usually ships in 3-6 days

0

3

Honda 32112-ZY6-000

BRACKET B, HARNESS CLIP

$14.99

$

Usually ships in 3-6 days

0

4

Honda 32113-ZY6-000

BRACKET C, HARNESS CLIP

$43.99

$

Usually ships in 3-6 days

0

5

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$34.99

$

Usually ships in 3-6 days

0

6

Honda 37500-PNB-003

SENSOR ASSY., CRANK

$250.99

$

Usually ships in 3-6 days

0

7

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, only 4 left!

0

10

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90023-ZY6-000

BOLT, SPECIAL (6X31)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 90040-ZY3-000

BOLT, FLANGE (10X43)
(Superseded to 90040-ZVL-010)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90059-ZY6-000

BOLT, FLANGE (6X38)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 91212-PNC-004

OIL SEAL (43X58X7) (ARAI)

$22.99

$

Usually ships in 3-6 days

0

15

Honda 91302-PNA-004

O-RING, CHAIN CASE

$11.99

$

Usually ships in 3-6 days

0

16

Honda 91304-ZY6-010

GASKET, CHAIN CASE

$10.99

$

Usually ships in 3-6 days

0

17

Honda 91307-PNA-003

O-RING (9.5X1.9)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 91333-PNA-003

O-RING (15X1.9)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 91546-SP0-A01

CLAMP (18.5MM)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 04103-ZY6-000ZA

SEE PART DETAILS - SUP; CASE KIT, CHAIN *NH8* (DARK GRAY)
(Superseded to 04103-ZY6-020)

$

$

Not available

20

Honda 04103-ZY6-010

SEE PART DETAILS - SUP; CASE KIT, CHAIN
(Superseded to 04103-ZY6-020)

$

$

Not available

20

Honda 04103-ZY6-020

SEE PART DETAILS - PRI; CASE KIT, CHAIN
(Superseded to 04103-ZY6-040)

$

$

Not available

21

Honda 19300-ZY3-023

THERMOSTAT ASSY.

$55.99

$

In Stock, only 2 left!

0

22

Honda 19300-ZY6-003

THERMOSTAT ASSY.

$57.99

$

In Stock, only 1 left!

0

23

Honda 06191-ZY6-000

SEE PART DETAILS - PRI; SPACER KIT, THERMOSTAT COVER
(Superseded to 06191-ZY6-010)

Note: (Optional).

$

$

Not available

23

Honda 19313-ZY6-000ZA

SPACER, THERMOSTAT COVER *NH8* (DARK GRAY)
(Superseded to 06191-ZY6-R01)

Note: (Optional).

$62.99

$

Usually ships in 3-6 days

0

24

Honda 19315-ZY6-000

COVER, THERMOSTAT

$

$

Not available

25

Honda 19315-ZY6-010

COVER, THERMOSTAT

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

26

Honda 19318-ZY6-000

GASKET, THERMOSTAT COVER

$13.99

$

In Stock, only 1 left!

0

27

Honda 19318-ZY6-010

GASKET, THERMOSTAT COVER
(Superseded to 19318-ZY6-003)

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

32

Honda 35673-ZW5-003

SENSOR ASSY., WATER TEMPERATURE

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

33

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

Note: (Optional).

$34.99

$

Usually ships in 3-6 days

0

34

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

35

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 90162-ZW4-000

BOLT, FLANGE (10X70)
(Superseded to 90162-ZW4-030)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

38

Honda 90652-ZY9-003

BAND, WIRE HARNESS

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

39

Honda 91307-PK2-005

O-RING (9.5X1.5) (HONDA KIKAKI)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

40

Honda 91307-PNA-003

O-RING (9.5X1.9)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

41

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

42

Honda 19303-ZW9-003

RUBBER, RING

$8.49

$

In Stock, only 2 left!

0
