BF135 AK0 LA (BARJ) - Honda Marine Engine, Made in Japan (SN: BARJ-1300001 - BARJ-9999999) CYLINDER HEAD Parts Diagram

Marine Engine, Made in Japan

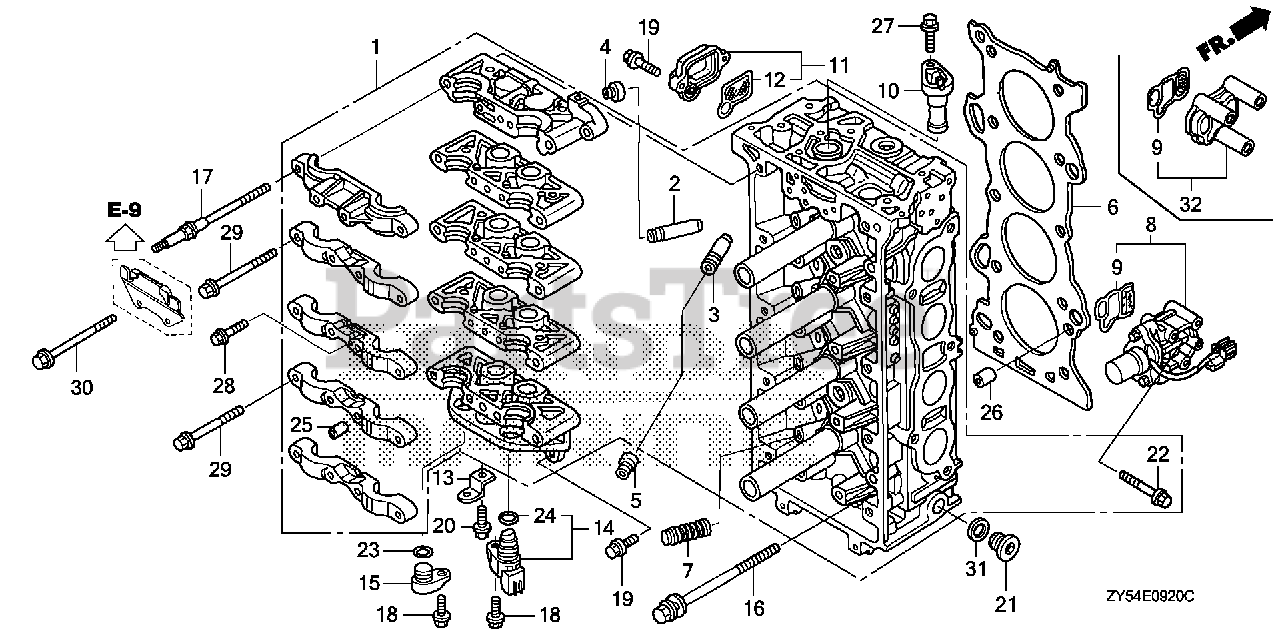

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 06122-ZY6-010ZA

CYLINDER HEAD KIT *NH8* (DARK GRAY)
(Superseded to 06122-ZY6-040ZA)

$2195.99

$

Usually ships in 3-6 days

0

1

Honda 06122-ZY6-030ZA

CYLINDER HEAD KIT *N
(Superseded to 06122-ZY6-040ZA)

$2195.99

$

Usually ships in 3-6 days

0

2

Honda 12204-PNA-305

GUIDE, VALVE (OVER SIZE)

$23.99

$

Usually ships in 3-6 days

0

3

Honda 12205-PNA-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12210-PZ1-004

SEE PART DETAILS - PRI; SEAL A, VALVE STEM (NOK)

$6.99

$

In Stock, Qty 5

0

5

Honda 12211-PZ1-004

SEE PART DETAILS - PRI; SEAL B, VALVE STEM (NOK)

$6.99

$

In Stock, Qty 5

0

6

Honda 12251-ZY6-003

GASKET, CYLINDER HEAD

$210.99

$

Usually ships in 3-6 days

0

8

Honda 15815-ZY9-000

COVER ASSY., OIL PASSAGE

Note: Use up to Engine SN 1008465.

$61.99

$

Usually ships in 3-6 days

0

9

Honda 15815-RAA-A02

FILTER ASSY., SPOOL VALVE

Note: Use from Engine SN 1002848.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 15834-ZY6-000

PLUG, VTC HOLE

$79.99

$

Usually ships in 3-6 days

0

11

Honda 15840-ZY6-000ZA

STRAINER ASSY., VTC *NH8* (DARK GRAY)

$34.99

$

Usually ships in 3-6 days

0

12

Honda 15845-RAA-A01

FILTER ASSY., VTC

$15.99

$

Usually ships in 3-6 days

0

13

Honda 32116-ZY6-000

BRACKET F, CLIP

$8.99

$

Usually ships in 3-6 days

0

14

Honda 37510-PNB-003

SENSOR ASSY., TDC

$250.99

$

Usually ships in 3-6 days

0

15

Honda 37521-ZY6-000

PLUG, TDC HOLE

$22.99

$

Usually ships in 3-6 days

0

16

Honda 90005-PNA-003

BOLT-WASHER (11X155)

$16.99

$

Usually ships in 3-6 days

0

17

Honda 90011-PNA-003

BOLT A, HEAD COVER

$17.99

$

Usually ships in 3-6 days

0

18

Honda 90017-ZY3-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, only 4 left!

0

19

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90021-ZY3-000

BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90048-ZY6-010

BOLT, SEALING (20MM)
(Superseded to 90048-ZY6-030)

Note: Use from Engine SN 1001601.

$

$

Not available

21

Honda 90048-ZY6-030

BOLT, SEALING (20MM)

$

$

Not available

22

Honda 90011-ZY6-000

BOLT, FLANGE (6X52)
(Superseded to 90011-ZY6-020)

$

$

Not available

23

Honda 91303-ZY6-003

O-RING (15X1.9)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 91333-PNA-003

O-RING (15X1.9)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

26

Honda 94301-14200

SEE PART DETAILS - PRI; PIN A, DOWEL (14X20)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759).

$0.99

$

Usually ships in 3-6 days

0

28

Honda 95701-06032-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2581361).

$2.99

$

In Stock, only 2 left!

0

29

Honda 95701-08090-08

BOLT, FLANGE (8X90)

$4.49

$

Usually ships in 3-6 days

0

30

Honda 95701-08110-08

BOLT, FLANGE (8X110)

$6.49

$

Usually ships in 3-6 days

0

31

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

Note: Use from Engine SN 1005909.

$1.99

$

In Stock, Qty 15

0

32

Honda 15815-ZY9-000

COVER ASSY., OIL PASSAGE

Note: Use from Engine SN 1008466.

$61.99

$

Usually ships in 3-6 days

0
