BF135 AK0 XA (BARJ) - Honda Marine Engine, Made in Japan (SN: BARJ-1300001 - BARJ-9999999) CONTROL PANEL (1) Parts Diagram

Marine Engine, Made in Japan

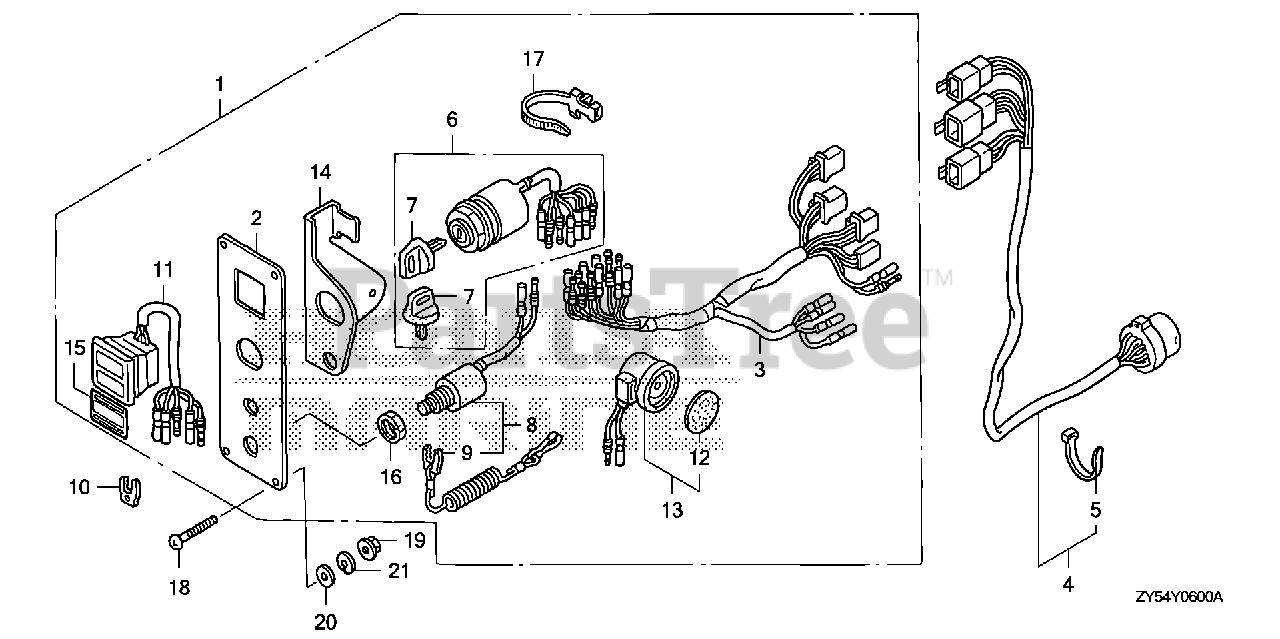

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 32340-ZW5-505

PANEL ASSY., CONTROL (2-LED)
(Superseded to 32340-ZW5-506)

Note: (Optional).Use up to Frame SN 1301770.

$289.99

$

Usually ships in 3-6 days

0

1

Honda 32340-ZW5-506

PANEL ASSY., CONTROL (2-LED)

Note: (Optional).Use up to Frame SN 1301770.

$289.99

$

Usually ships in 3-6 days

0

2

Honda 32346-ZW1-505

SEE PART DETAILS - PRI; PANEL, CONTROL

Note: (Optional).Use up to Frame SN 1301770.

$37.99

$

Usually ships in 3-6 days

0

3

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

Note: (Optional).Use up to Frame SN 1301770.

$162.99

$

Usually ships in 3-6 days

0

4

Honda 32580-ZW2-D01

SEE PART DETAILS - PRI; CABLE ASSY., SWITCH PANEL

Note: (Optional).Use up to Frame SN 1301770.

$312.99

$

Usually ships in 3-6 days

0

5

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional).Use up to Frame SN 1301770.

$3.49

$

Usually ships in 3-6 days

0

6

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301307.

$213.99

$

Usually ships in 3-6 days

0

6

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION (SINGLE) (DUAL)

Note: (Optional).Use from Frame SN 1301308 to 1301770.

$132.99

$

Usually ships in 3-6 days

0

7

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH (35100-ZV5-003 ONLY) DUAL QTY = (4) (SINGLE)

Note: (Optional).Use up to Frame SN 1301307.

$12.99

$

Usually ships in 3-6 days

0

8

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional).Use up to Frame SN 1301770.

$88.99

$

Usually ships in 3-6 days

0

9

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY (SINGLE) (DUAL)

Note: (Optional).Use up to Frame SN 1301770.

$28.99

$

Usually ships in 3-6 days

0

10

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

10

Honda 36187-ZV4-652

SEE PART DETAILS - PRI; CLIP, EMERGENCY LOCK

Note: (Optional).Use up to Frame SN 1301770.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 37210-ZW1-702

LAMP ASSY., INDICATION (2-LED) DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$186.99

$

Usually ships in 3-6 days

0

12

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$7.49

$

Usually ships in 3-6 days

0

13

Honda 38410-ZV5-003

BUZZER, WARNING DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$87.99

$

Usually ships in 3-6 days

0

14

Honda 38414-ZW1-V02

BRACKET, BUZZER DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$47.99

$

Usually ships in 3-6 days

0

15

Honda 87120-ZW5-000

MARK, SWITCH PANEL DUAL QTY = (2) (SINGLE)
(Superseded to 87120-ZW5-010)

Note: (Optional).Use up to Frame SN 1301770.

$25.99

$

Usually ships in 3-6 days

0

16

Honda 90302-921-000

NUT, HEX. (16MM) DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL) DUAL QTY = (2) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$9.99

$

Usually ships in 3-6 days

0

18

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$1.99

$

Usually ships in 3-6 days

0

19

Honda 18334-MT8-770

NUT, FLANGE (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94103-05400

WASHER, PLAIN (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94111-05400

WASHER, SPRING (5MM) DUAL QTY = (8) (SINGLE)

Note: (Optional).Use up to Frame SN 1301770.

$1.49

$

Usually ships in 3-6 days

0
