BF135 AK0 XCA (BASJ) - Honda Marine Engine, Made in Japan (SN: BASJ-1300001 - BASJ-9999999) CONTROL PANEL (4) Parts Diagram

Marine Engine, Made in Japan

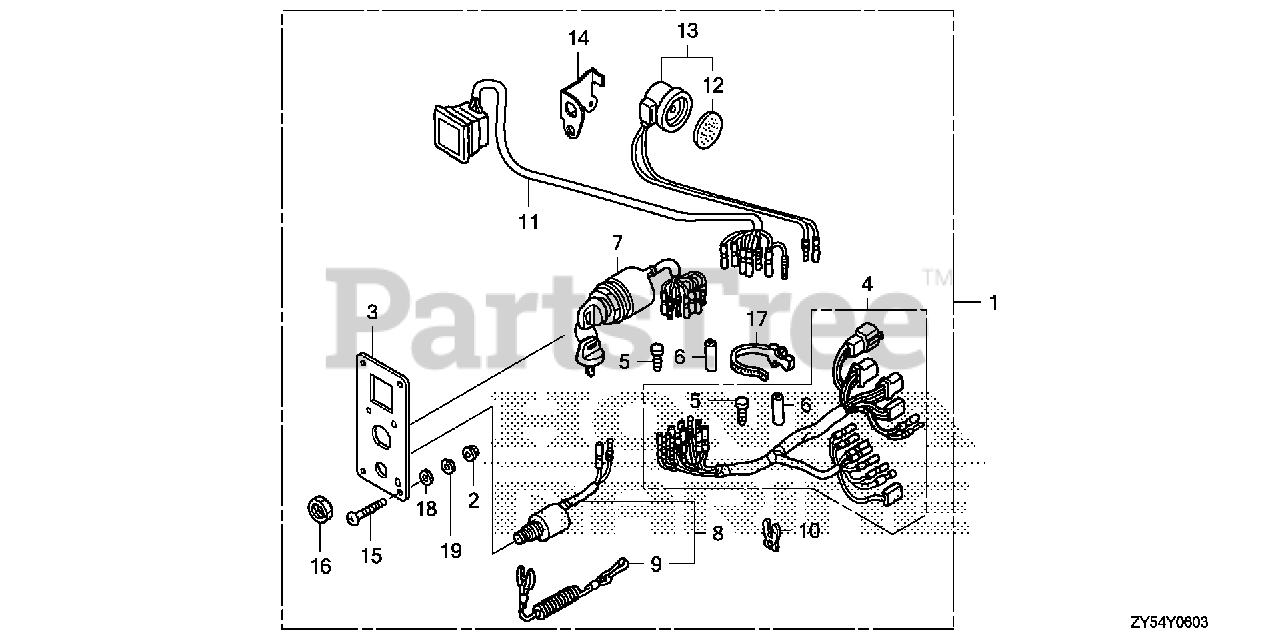

CONTROL PANEL (4) Parts Diagram

  • Title

1

Honda 06323-ZZ5-764

PANEL KIT, SWITCH (4-LED)
(Superseded to 06323-ZZ5-M01)

Note: (Optional). Use from Frame SN 1300175.

$393.99

$

Usually ships in 3-6 days

0

2

Honda 18334-MT8-770

NUT, FLANGE (5MM)

Note: (Optional). Use from Frame SN 1300175.

$2.49

$

Usually ships in 3-6 days

0

3

Honda 32346-ZZ5-003

PANEL, CONTROL

Note: (Optional). Use from Frame SN 1300175.

$30.99

$

Usually ships in 3-6 days

0

4

Honda 32545-ZZ5-000

HARNESS ASSY., SWITCH PANEL

Note: (Optional). Use from Frame SN 1300175.

$132.99

$

Usually ships in 3-6 days

0

5

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER)

Note: (Optional). Use from Frame SN 1300175.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER)

Note: (Optional). Use from Frame SN 1300175.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 35100-ZV5-013

SWITCH ASSY., COMBINATION

Note: (Optional). Use from Frame SN 1300175.

$129.99

$

Usually ships in 3-6 days

0

8

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

Note: (Optional). Use from Frame SN 1300175.

$86.99

$

Usually ships in 3-6 days

0

8

Honda 36180-ZV5-033

SEE PART DETAILS - PRI; SWITCH ASSY., EMERGENCY STOP

Note: (Optional). Use from Frame SN 1300175.

$86.99

$

Usually ships in 3-6 days

0

9

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

Note: (Optional). Use from Frame SN 1300175.

$27.99

$

Usually ships in 3-6 days

0

10

Honda 36187-ZV4-652

CLIP, EMERGENCY LOCK

Note: (Optional). Use from Frame SN 1300175.

$6.49

$

Usually ships in 3-6 days

0

11

Honda 37210-ZZ5-712

LAMP ASSY., INDICATION (4-LED)
(Superseded to 37210-ZZ5-713)

Note: (Optional). Use from Frame SN 1300175.

$170.99

$

Usually ships in 3-6 days

0

12

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

Note: (Optional). Use from Frame SN 1300175.

$7.49

$

Usually ships in 3-6 days

0

13

Honda 38410-ZV5-003

BUZZER, WARNING

Note: (Optional). Use from Frame SN 1300175.

$85.99

$

Usually ships in 3-6 days

0

14

Honda 38414-ZZ5-003

BRACKET, BUZZER

Note: (Optional). Use from Frame SN 1300175.

$21.99

$

Usually ships in 3-6 days

0

15

Honda 90109-ZW5-000

SCREW, PAN (5X40)

Note: (Optional). Use from Frame SN 1300175.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90302-921-000

NUT, HEX. (16MM)

Note: (Optional). Use from Frame SN 1300175.

$6.49

$

In Stock, only 1 left!

0

17

Honda 90649-SC2-003

BAND, WIRE HARNESS (150MM) (NATURAL)

Note: (Optional). Use from Frame SN 1300175.

$9.99

$

Usually ships in 3-6 days

0

18

Honda 94103-05400

WASHER, PLAIN (5MM)

Note: (Optional). Use from Frame SN 1300175.

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94111-05400

WASHER, SPRING (5MM)

Note: (Optional). Use from Frame SN 1300175.

$1.49

$

Usually ships in 3-6 days

0
