BF15 A1 SA (BAAS) - Honda Outboard Engine, Made in Japan (SN: BAAS-1600001 - BAAS-1699999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

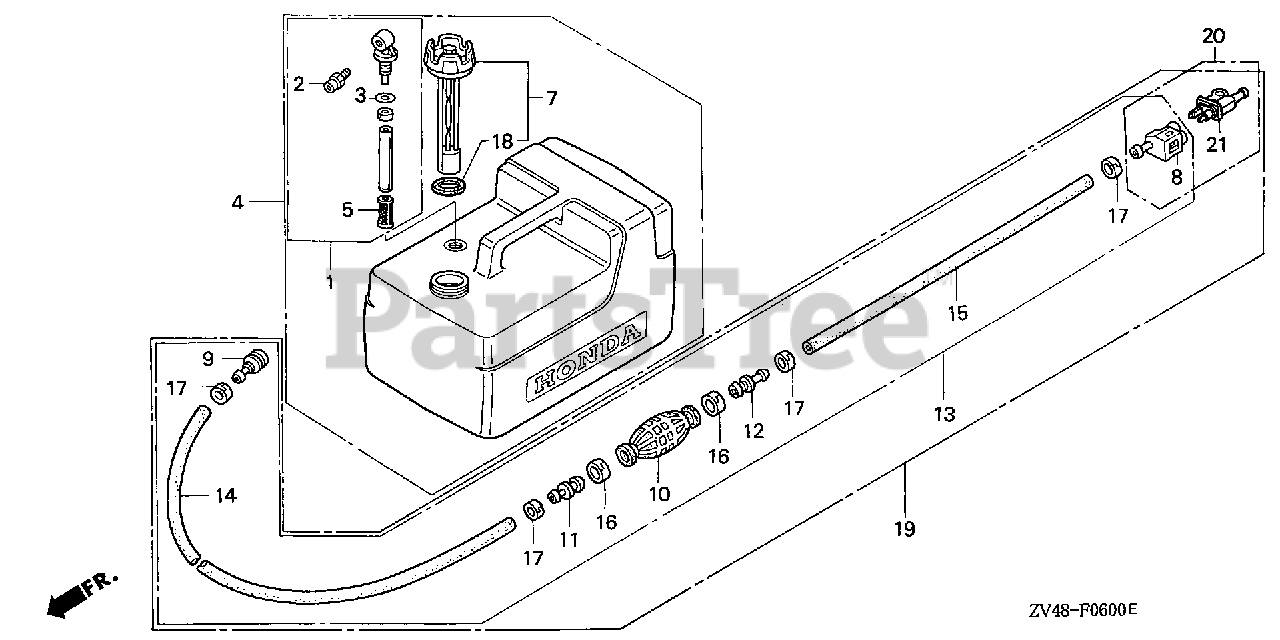

FUEL TANK Parts Diagram

  • Title

1

Honda 16900-ZV4-A21

JOINT ASSY., FUEL
(Superseded to 16900-ZV4-A22)

$42.99

$

In Stock, only 1 left!

0

2

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

$22.99

$

Usually ships in 3-6 days

0

3

Honda 16979-ZV5-900

SEE PART DETAILS - SUP; O-RING
(Superseded to 16979-ZV5-901)

$0.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A21

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$261.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A22

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$261.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZV4-A24

SEE PART DETAILS - SUP; TANK ASSY., FUEL
(Superseded to 17500-ZZ5-003)

$261.99

$

Usually ships in 3-6 days

0

4

Honda 17500-ZZ5-003

SEE PART DETAILS - PRI; TANK ASSY., FUEL

$261.99

$

Usually ships in 3-6 days

0

5

Honda 17583-ZV5-900

SEE PART DETAILS - SUP; FILTER, FUEL
(Superseded to 17583-ZV5-901)

$2.99

$

In Stock, only 2 left!

0

7

Honda 17620-ZV4-A20

SEE PART DETAILS - SUP; CAP, FUEL FILLER

$

$

Currently unavailable

7

Honda 17620-ZV4-A21

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZV4-A23)

$

$

Not available

7

Honda 17620-ZV4-A22

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZV4-A23)

$

$

Not available

7

Honda 17620-ZV4-A23

SEE PART DETAILS - PRI; CAP, FUEL FILLER

$

$

Not available

8

Honda 17650-ZW9-013

SEE PART DETAILS - SUP; CONNECTOR ASSY., FUEL (A)
(Superseded to 17650-ZW9-023)

Note: Use from Frame SN 1602103.

$54.99

$

In Stock, only 1 left!

0

8

Honda 17650-ZW9-023

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (A)

Note: Use from Frame SN 1602103.

$54.99

$

In Stock, only 1 left!

0

9

Honda 17660-ZV5-A00

SEE PART DETAILS - SUP; CONNECTOR, FUEL
(Superseded to 17660-ZW9-003)

Note: Use up to Frame SN 1602102.

$50.99

$

Usually ships in 3-6 days

0

9

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL

$50.99

$

Usually ships in 3-6 days

0

10

Honda 17661-921-000

SEE PART DETAILS - SUP; BULB, PRIMER
(Superseded to 17661-921-010)

$20.99

$

In Stock, only 1 left!

0

11

Honda 17665-ZV5-000

VALVE, IN.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 17680-ZV4-000

VALVE, OUTLET

$18.99

$

Usually ships in 3-6 days

0

13

Honda 17700-ZW9-030

SEE PART DETAILS - PRI; TUBE ASSY., FUEL

Note: Use from Frame SN 1602103.

$102.99

$

Usually ships in 3-6 days

0

14

Honda 17701-ZV5-000

TUBE, FUEL LONG (7.3X2000)

$71.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZV4-000

TUBE, FUEL SHORT (6.3X500)

$

$

Not available

16

Honda 17703-921-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (20MM)
(Superseded to 17703-921-010)

$5.99

$

Usually ships in 3-6 days

0

17

Honda 17704-ZV4-000

SEE PART DETAILS - SUP; BAND, TUBE CLIP (12.5MM)
(Superseded to 17704-ZV4-010)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 17624-ZV4-A20

GASKET, FUEL CAP
(Superseded to 17624-ZV5-902)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 04101-ZW9-010

SEE PART DETAILS - PRI; CONNECTOR SET, FUEL TUBE

Note: Use up to Frame SN 1602102.

$148.99

$

Usually ships in 3-6 days

0

20

Honda 04104-ZW9-010

SEE PART DETAILS - PRI; CONNECTOR SET, FUEL

Note: Use up to Frame SN 1602102.

$81.99

$

Usually ships in 3-6 days

0

21

Honda 17710-ZW9-033

SEE PART DETAILS - PRI; CONNECTOR ASSY., FUEL (B)

Note: Use from Frame SN 1602103.

$71.99

$

In Stock, only 1 left!

0
