BF15 DK3 LHA (BALJ) - Honda Outboard Engine, Made in Japan (SN: BALJ-1600001 - BALJ-9999999) SWIVEL CASE (1) Parts Diagram

Outboard Engine, Made in Japan

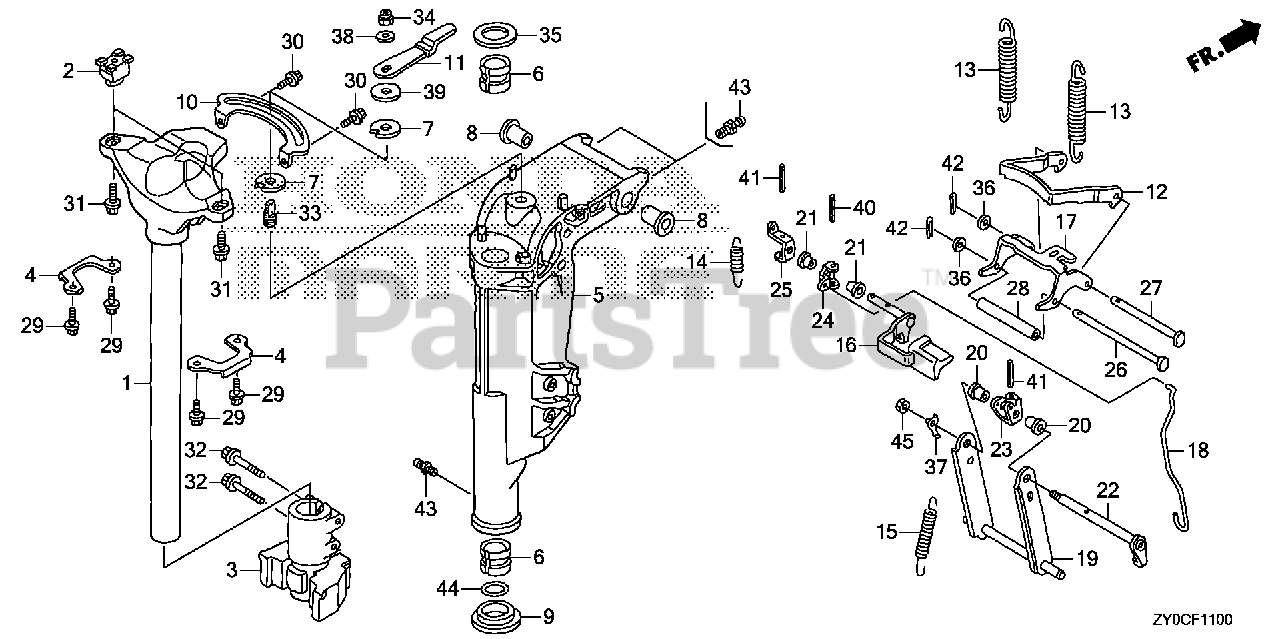

SWIVEL CASE (1) Parts Diagram

  • Title

1

Honda 50100-ZW9-631

SEE PART DETAILS - PRI; FRAME, MOUNTING (L)

$300.99

$

Usually ships in 3-6 days

0

2

Honda 50150-ZY1-000

SEE PART DETAILS - PRI; RUBBER, MOUNTING (UPPER)

$30.99

$

Usually ships in 3-6 days

0

3

Honda 50152-ZW9-000

RUBBER, MOUNTING (LOWER)

$121.99

$

Usually ships in 3-6 days

0

4

Honda 50153-ZW9-000

COVER, MOUNTING RUBBER (UPPER)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 50201-ZY1-C00ZB

SEE PART DETAILS - PRI; CASE, SWIVEL *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

Note: Use up to Frame SN 1602501.

$271.99

$

Usually ships in 3-6 days

0

5

Honda 50201-ZY1-613ZB

CASE, SWIVEL *NHB14M* (L) (AQUA MARINE SILVER METALLIC)

Note: Use from Frame SN 1602502.

$

$

Currently unavailable

6

Honda 50211-ZW9-000

LINER, SWIVEL CASE

$6.49

$

Usually ships in 3-6 days

0

7

Honda 50212-ZW9-003

BLOCK, FRICTION

$16.99

$

Usually ships in 3-6 days

0

8

Honda 50214-ZV5-003

BUSH, SWIVEL CASE

$11.99

$

Usually ships in 3-6 days

0

9

Honda 50215-ZW9-000

COLLAR, SWIVEL CASE

$7.49

$

Usually ships in 3-6 days

0

10

Honda 50218-ZW9-010

SEE PART DETAILS - PRI; PLATE, FRICTION

$14.99

$

Usually ships in 3-6 days

0

11

Honda 50219-ZW9-010

LEVER, FRICTION

$11.99

$

Usually ships in 3-6 days

0

12

Honda 50512-ZW9-010

HOOK, REVERSE LOCK

$27.99

$

Usually ships in 3-6 days

0

13

Honda 50514-ZW9-A30

SPRING, REVERSE LOCK

$27.99

$

Usually ships in 3-6 days

0

14

Honda 50515-ZW9-300

SPRING, TILT LEVER

$5.99

$

Usually ships in 3-6 days

0

15

Honda 50516-ZV4-300

SPRING, TILT LINK

$7.49

$

In Stock, only 3 left!

0

16

Honda 50517-ZW9-A32

LEVER, TILT

$55.99

$

Usually ships in 3-6 days

0

17

Honda 50518-ZW9-000

ARM, REVERSE LOCK

$31.99

$

Usually ships in 3-6 days

0

18

Honda 50519-ZW9-A30

ROD, RELEASE SWIVEL CASE

$13.99

$

Usually ships in 3-6 days

0

19

Honda 50520-ZW9-A31

ARM, TILT

$112.99

$

Usually ships in 3-6 days

0

20

Honda 50521-ZV1-000

BUSH, TILT LEVER

$8.99

$

Usually ships in 3-6 days

0

21

Honda 50522-ZV4-000

BUSH, TILT LEVER

$7.99

$

In Stock, only 1 left!

0

22

Honda 50525-ZV4-010

SEE PART DETAILS - PRI; SHAFT, TILT

$33.99

$

Usually ships in 3-6 days

0

23

Honda 50526-ZV4-000

BRACKET, TILT SHAFT

$13.99

$

Usually ships in 3-6 days

0

24

Honda 50527-ZV4-010

BRACKET, RELEASE ROD

$7.99

$

In Stock, only 1 left!

0

25

Honda 50528-ZV4-010

BRACKET, TILT LEVER

$7.99

$

Usually ships in 3-6 days

0

26

Honda 50531-ZV7-000

SHAFT, REVERSE LOCK (A)

$14.99

$

Usually ships in 3-6 days

0

27

Honda 50532-ZV4-000

SHAFT, REVERSE LOCK (B)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 50533-ZW9-000

COLLAR, REVERSE LOCK

$15.99

$

Usually ships in 3-6 days

0

29

Honda 90102-ZW9-000

BOLT, FLANGE (6X12)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90103-ZW9-010

BOLT, FLANGE (6X12)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90154-ZW9-000

BOLT, FLANGE (10X25)

$4.99

$

Usually ships in 3-6 days

0

32

Honda 90159-ZW9-000

BOLT, FLANGE (8X45)

$5.99

$

Usually ships in 3-6 days

0

33

Honda 90162-ZW9-000

BOLT, STUD (8X26)

$7.49

$

Usually ships in 3-6 days

0

34

Honda 90305-ZW9-000

NUT, SELF-LOCK (8MM)

$7.49

$

Usually ships in 3-6 days

0

35

Honda 90454-881-000

WASHER, THRUST

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, Qty 6

0

37

Honda 90505-ZV4-000

WASHER, LOCK

$4.99

$

Usually ships in 3-6 days

0

38

Honda 90514-921-000

WASHER (8MM)

$1.99

$

In Stock, Qty 9

0

39

Honda 90517-ZW9-000

WASHER, NYLON (8MM)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 90751-ZV4-C21

SEE PART DETAILS - PRI; PIN, SPRING (3.0X22)

$4.49

$

Usually ships in 3-6 days

0

41

Honda 90752-ZV4-C21

SEE PART DETAILS - PRI; PIN, SPRING (3.0X25)

$4.49

$

Usually ships in 3-6 days

0

42

Honda 90759-ZV1-000

PIN, SPLIT (2.0)

$2.49

$

Usually ships in 3-6 days

0

43

Honda 90951-ZV7-010

NIPPLE, GREASE

$2.99

$

In Stock, only 4 left!

0

44

Honda 91361-VD6-003

O-RING (34X2.4)

$3.49

$

Usually ships in 3-6 days

0

45

Honda 94002-06490-0S

NUT, HEX. (6MM)

$3.99

$

Usually ships in 3-6 days

0
