BF150 AK0 LA (BANJ) - Honda Marine Engine, Made in Japan (SN: BANJ-1300001 - BANJ-9999999) ELECTRONIC CONTROL UNIT (2) Parts Diagram

Marine Engine, Made in Japan

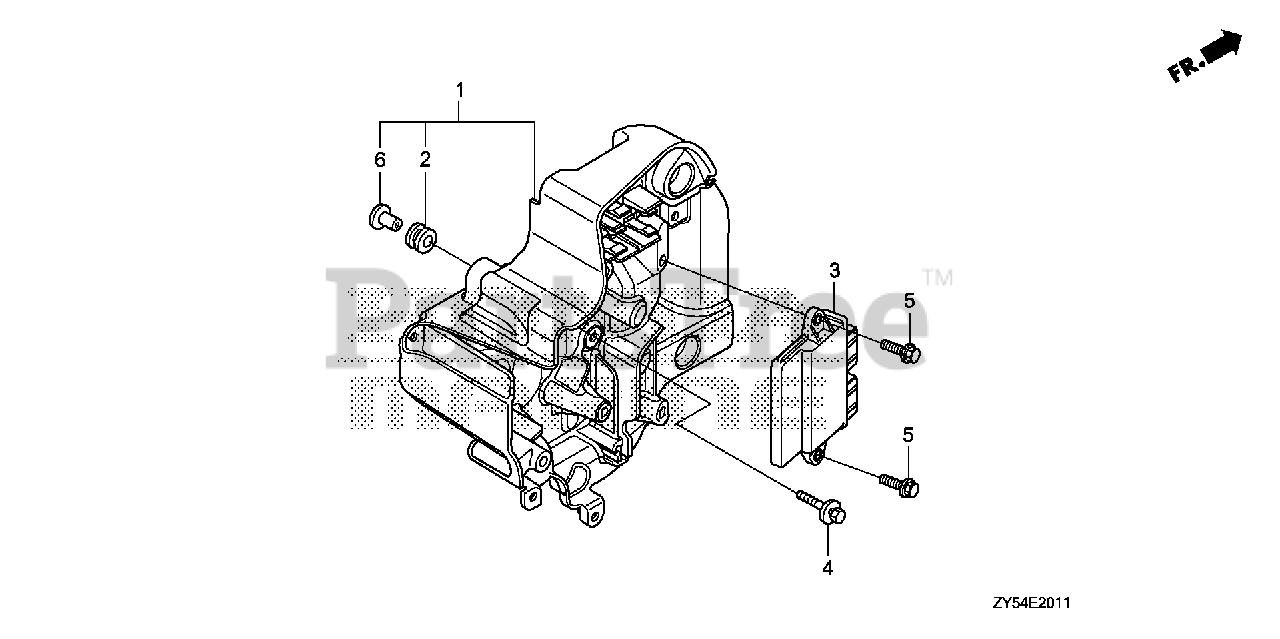

ELECTRONIC CONTROL UNIT (2) Parts Diagram

  • Title

1

Honda 30410-ZY6-000

CASE ASSY., ELECTRONIC PARTS
(Superseded to 30410-ZY6-030)

Note: Use from Engine SN 1022380.

$159.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

Note: Use from Engine SN 1022380.

$5.99

$

Usually ships in 3-6 days

0

3

Honda 34750-ZY6-063

SEE PART DETAILS - PRI; CONTROL UNIT, ELECTRONIC

Note: Use from Engine SN 1022380.

$1477.99

$

Usually ships in 3-6 days

0

4

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)

Note: Use from Engine SN 1022380.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

Note: Use from Engine SN 1022380.

$2.49

$

Usually ships in 3-6 days

0

6

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

Note: Use from Engine SN 1022380.

$3.99

$

Usually ships in 3-6 days

0
