BF2.3 DH LCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) STERN BRACKET Parts Diagram

Outboard Engine, Made in China

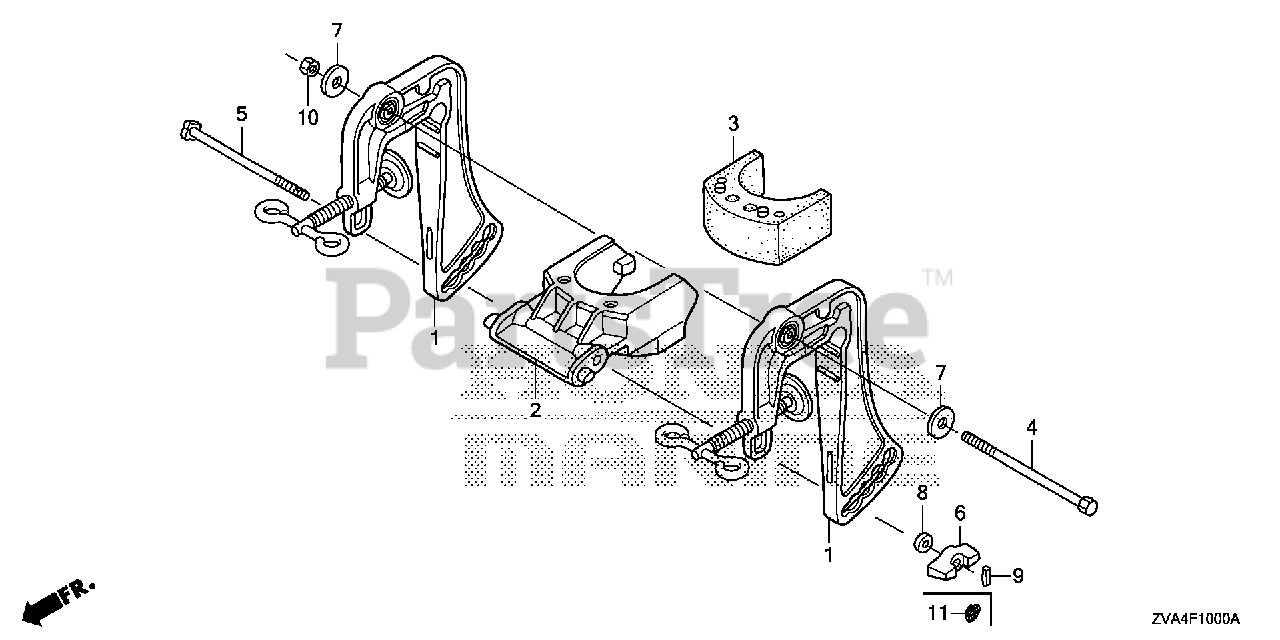

STERN BRACKET Parts Diagram

  • Title

1

Honda 50300-ZVA-000ZA

SEE PART DETAILS - PRI; BRACKET, STERN *NH246* (LOOSY GRAY)

$295.99

$

Usually ships in 3-6 days

0

2

Honda 50302-ZVA-000

SEE PART DETAILS - PRI; RECEIVER, THRUST

$26.99

$

Usually ships in 3-6 days

0

3

Honda 50303-ZVA-000

RUBBER, THRUST

$21.99

$

Usually ships in 3-6 days

0

4

Honda 90107-ZVA-000

BOLT, HEX. (8X110)

Note: Use up to Frame SN 1003874.

$13.99

$

Usually ships in 3-6 days

0

4

Honda 90107-ZVA-010

BOLT, HEX. (8X114)

Note: Use from Frame SN 1003875.

$13.99

$

Usually ships in 3-6 days

0

5

Honda 90108-ZV0-000

BOLT, DIAMOND (6X110)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 90301-ZVA-000

SEE PART DETAILS - PRI; WINGNUT

$10.99

$

Usually ships in 3-6 days

0

7

Honda 90501-ZVA-000

WASHER, PLAIN (8MM)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90512-ZVA-000

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90751-ZVA-000

PIN, SPRING (2.5X8)
(Superseded to 90751-ZW6-000)

Note: Use up to Frame SN 1011072.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90751-ZW6-000

PIN, SPRING (2.5X8)

Note: Use up to Frame SN 1011072.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90305-ZV4-000

NUT, SELF-LOCK (8MM)

Note: Use from Frame SN 1003875.

$7.49

$

Usually ships in 3-6 days

0

10

Honda 94001-08490-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

Note: Use up to Frame SN 1003874.

$3.99

$

Usually ships in 3-6 days

0

11

Honda 91452-ZVD-000

RING, STOPPER

Note: Use from Frame SN 1011073.

$1.99

$

Usually ships in 3-6 days

0
