BF2.3 DH SCHA (BABC) - Honda Outboard Engine, Made in China (SN: BABC-1000001 - BABC-9999999) CRANKCASE SIDE COVER Parts Diagram

Outboard Engine, Made in China

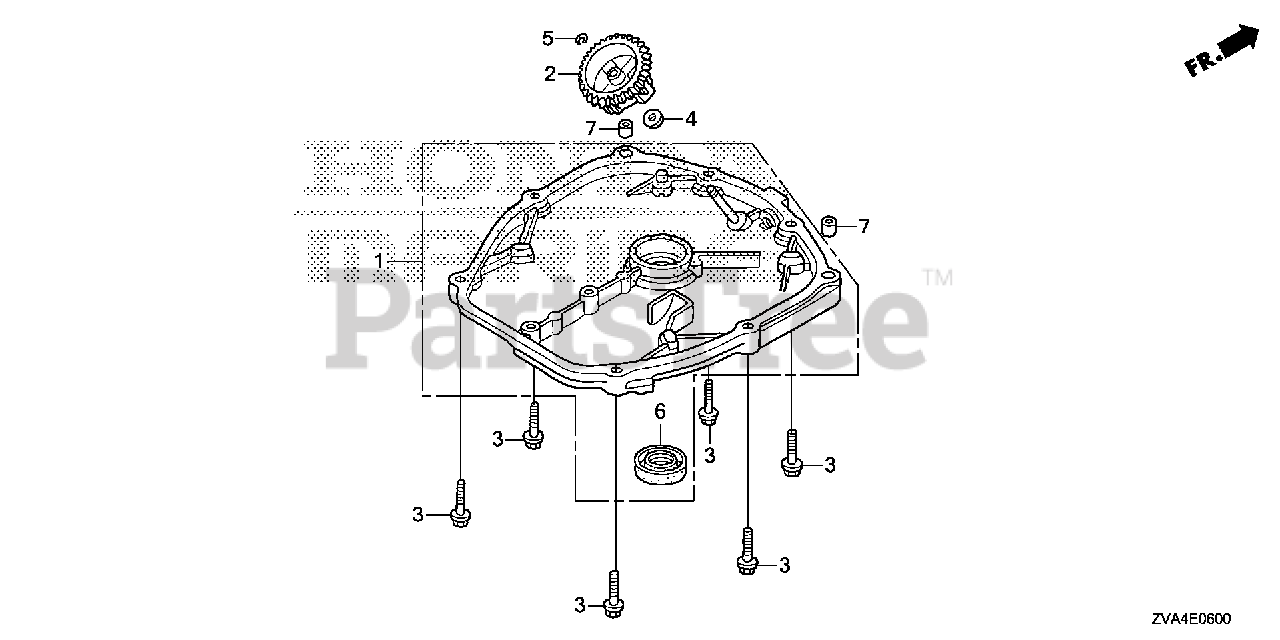

CRANKCASE SIDE COVER Parts Diagram

  • Title

1

Honda 11340-ZVA-000

COVER COMP

Note: Use from Engine SN 1018141.

$74.99

$

Usually ships in 3-6 days

0

1

Honda 11340-ZW6-T00

COVER, CRANKCASE SIDE
(Superseded to 11340-ZVA-000)

Note: Use up to Engine SN 1018140.

$74.99

$

Usually ships in 3-6 days

0

2

Honda 16512-ZM7-D00

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 1018140.

$7.99

$

In Stock, only 1 left!

0

2

Honda 16512-ZVA-000

HOLDER, GOV WEIGHT

Note: Use from Engine SN 1018141.

$6.99

$

Usually ships in 3-6 days

0

3

Honda 90174-ZW4-000

BOLT, FLANGE (5X23) (CT200)

$2.49

$

Usually ships in 3-6 days

0

4

Honda 90441-ZM7-000

WASHER (4.2X13)

Note: Use up to Engine SN 1018140.

$2.49

$

Usually ships in 3-6 days

0

4

Honda 90441-ZVA-000

WASHER (4.2X13)

Note: Use from Engine SN 1018141.

$2.49

$

Usually ships in 3-6 days

0

5

Honda 90602-ZM7-000

CLIP, GOVERNOR HOLDER

Note: Use up to Engine SN 1018140.

$1.99

$

Usually ships in 3-6 days

0

5

Honda 90603-ZVA-000

CLIP, GOV HOLDER

Note: Use from Engine SN 1018141.

$1.49

$

Usually ships in 3-6 days

0

6

Honda 91202-HC5-005

SEE PART DETAILS - PRI; OIL SEAL (17X27X5) (KOYO)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 94301-06100

SEE PART DETAILS - PRI; PIN A, DOWEL (6X10) (Honda Code 0294256).

$2.99

$

Usually ships in 3-6 days

0
