BF2.3 DK2 LCHA (BAVJ) - Honda Outboard Engine, Made in Japan (SN: BAVJ-2300001 - BAVJ-9999999) FUEL TANK Parts Diagram

Outboard Engine, Made in Japan

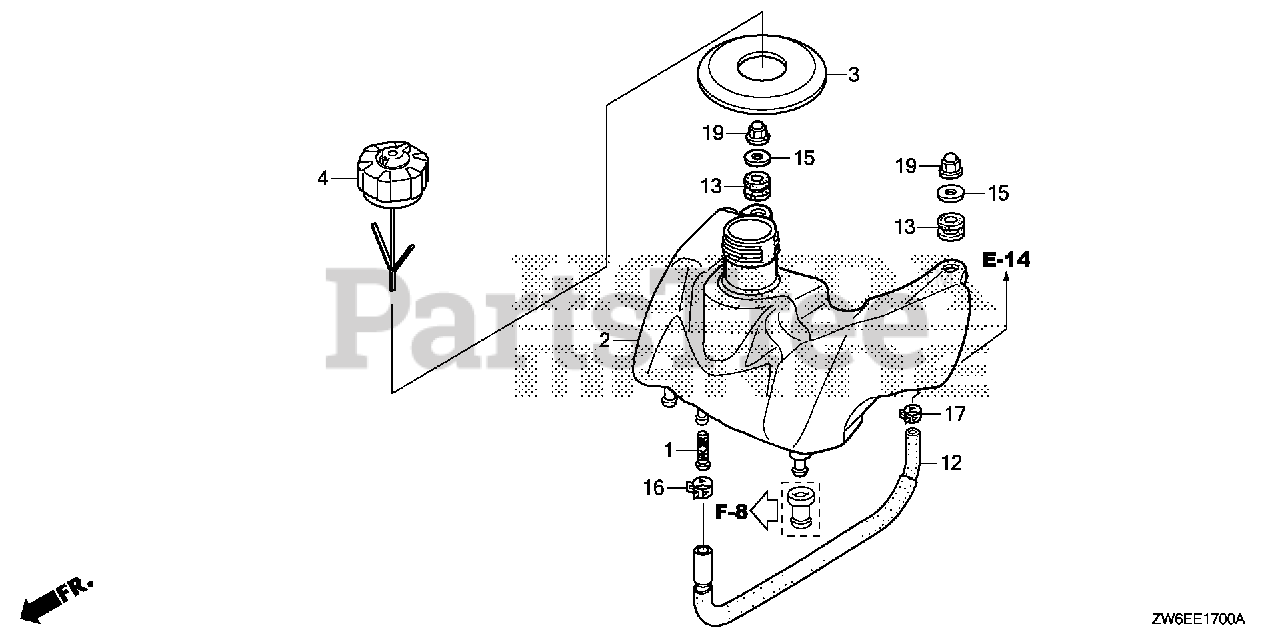

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$10.99

$

In Stock, Qty 16

0

2

Honda 17511-ZW6-305

TANK, FUEL (FOR U.S.A.)
(Superseded to 17511-ZW6-E10)

$156.99

$

Usually ships in 3-6 days

0

3

Honda 17515-ZW6-E10

RUBBER, TANK CAP
(Superseded to 17515-ZVA-E10)

$6.49

$

Usually ships in 3-6 days

0

4

Honda 17620-ZW6-E11

CAP ASSY., FUEL TANK
(Superseded to 17620-ZW6-E12)

$150.99

$

Usually ships in 3-6 days

0

5

Honda 17622-ZW6-E10

INNER, FUEL CAP (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 1 left!

0

7

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.99

$

In Stock, only 1 left!

0

8

Honda 17626-Z07-R30

VALVE, BREATHER

$14.99

$

Usually ships in 3-6 days

0

9

Honda 17629-ZW6-E10

SPRING, FUEL CAP

$

$

Currently unavailable

10

Honda 17632-Z07-R31

GASKET, BREATHER VALVE (NOT AVAILABLE)

$

$

Not available

11

Honda 17633-ZW6-E10

TETHER, FUEL CAP

$2.99

$

Usually ships in 3-6 days

0

12

Honda 17701-ZVA-E01

SEE PART DETAILS - PRI; TUBE, FUEL

$16.99

$

Usually ships in 3-6 days

0

12

Honda 17701-ZW6-E10

SEE PART DETAILS - SUP; TUBE, FUEL
(Superseded to 17701-ZVA-E01)

$16.99

$

Usually ships in 3-6 days

0

13

Honda 80105-MG9-000

CUSHION, AIR CLEANER

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90401-ZW6-E10

COLLAR

$

$

Currently unavailable

15

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90601-ZY3-030

CLAMP, TUBE (D10.5)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90607-ZY6-000

CLAMP, TUBE (8.0)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90751-ZV5-000

PIN, LOCK (6MM)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 94021-06020

NUT, CAP (6MM)

$2.99

$

Usually ships in 3-6 days

0
