BF2.3 DK2 SCHA (BAVJ) - Honda Outboard Engine, Made in Japan (SN: BAVJ-2300001 - BAVJ-9999999) GEAR CASE + PROPELLER Parts Diagram

Outboard Engine, Made in Japan

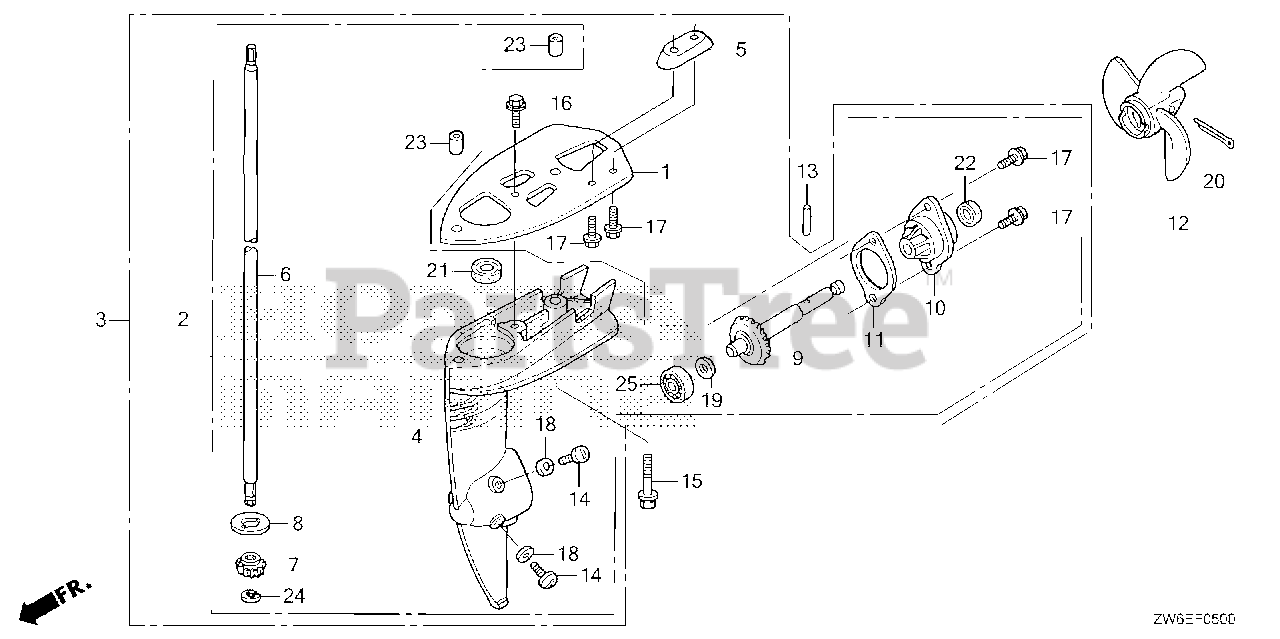

GEAR CASE + PROPELLER Parts Diagram

  • Title

2

Honda 41005-ZW6-C01ZA

CASE ASSY., GEAR *NH246* (S) (LOOSY GRAY)
(Superseded to 41005-ZVA-000ZA)

$579.99

$

Usually ships in 3-6 days

0

4

Honda 41100-ZW6-C01ZA

SEE PART DETAILS - PRI; CASE, GEAR *NH246* (LOOSY GRAY)
(Superseded to 41100-ZVA-000ZA)

Note: Use up to Frame SN 2328717.

$316.99

$

Usually ships in 3-6 days

0

4

Honda 41100-ZW6-C10ZA

CASE, GEAR *NH246* (LOOSY GRAY)
(Superseded to 41100-ZVA-000ZA)

Note: Use from Frame SN 2328718.

$316.99

$

Usually ships in 3-6 days

0

6

Honda 41112-ZW6-C00

SEE PART DETAILS - PRI; SHAFT, VERTICAL (S)

Note: Use from Frame SN 2328718.

$157.99

$

Usually ships in 3-6 days

0

7

Honda 41131-ZW6-000

GEAR, PINION

$56.99

$

Usually ships in 3-6 days

0

8

Honda 41135-ZV0-000

WASHER, PINION THRUST
(Superseded to 41135-ZVA-000)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 41160-ZW6-000

SHAFT, PROPELLER

$

$

Not available

10

Honda 41200-ZW6-C10ZA

HOLDER ASSY., PROPELLER SHAFT *NH246* (LOOSY GRAY)

Note: Use from Frame SN 2328718 to 2329547.

$70.99

$

Usually ships in 3-6 days

0

10

Honda 41200-ZW6-305ZA

HOLDER ASSY., PROPELLER SHAFT *NH246* (LOOSY GRAY)

Note: Use from Frame SN 2329548.

$887.99

$

Usually ships in 3-6 days

0

11

Honda 41281-ZVA-000

SEE PART DETAILS - PRI; GASKET, PROPELLER SHAFT HOLDER

$3.49

$

In Stock, only 2 left!

0

11

Honda 41281-ZV0-850

SEE PART DETAILS - SUP; GASKET, PROPELLER SHAFT HOLDER
(Superseded to 41281-ZVA-000)

$3.49

$

In Stock, only 2 left!

0

12

Honda 58130-ZV0-841ZB

SEE PART DETAILS - PRI; PROPELLER, THREE-BLADE *NH283* (STIN GRAY)

$70.99

$

In Stock, only 1 left!

0

13

Honda 58131-ZV0-000

PIN, SHEAR

$5.49

$

In Stock, Qty 14

0

14

Honda 90105-ZVA-000

SEE PART DETAILS - PRI; BOLT, OIL CHECK

$6.99

$

In Stock, only 2 left!

0

14

Honda 90105-ZV4-650

SEE PART DETAILS - SUP; BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$6.99

$

In Stock, only 2 left!

0

15

Honda 90106-ZW6-C00

BOLT-WASHER (6X35)
(Superseded to 90109-ZVA-000)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90215-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90531-ZV0-000

WASHER, GEAR (1.00) (A)
(Superseded to 90531-ZVA-000)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 90757-ZV0-000

PIN, SPLIT (3MM)
(Superseded to 94201-30402)

$3.49

$

In Stock, only 3 left!

0

20

Honda 94201-30402

PIN, SPLIT (3.0)

$3.49

$

In Stock, only 3 left!

0

21

Honda 91251-ZV0-003

SEAL, WATER (11X21X8)

$7.99

$

Usually ships in 3-6 days

0

22

Honda 91253-ZV0-003

SEAL, WATER (11X21X8)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 94301-08140

PIN, DOWEL (8X14)

$3.49

$

In Stock, Qty 6

0

24

Honda 94540-06018

E-RING (6MM)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 96100-60000-00

BEARING, RADIAL BALL (6000)

$12.99

$

Usually ships in 3-6 days

0
