BF2 AK LA (BAEL) - Honda Outboard Engine, Made in Japan (SN: BAEL-1100001 - BAEL-9999999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

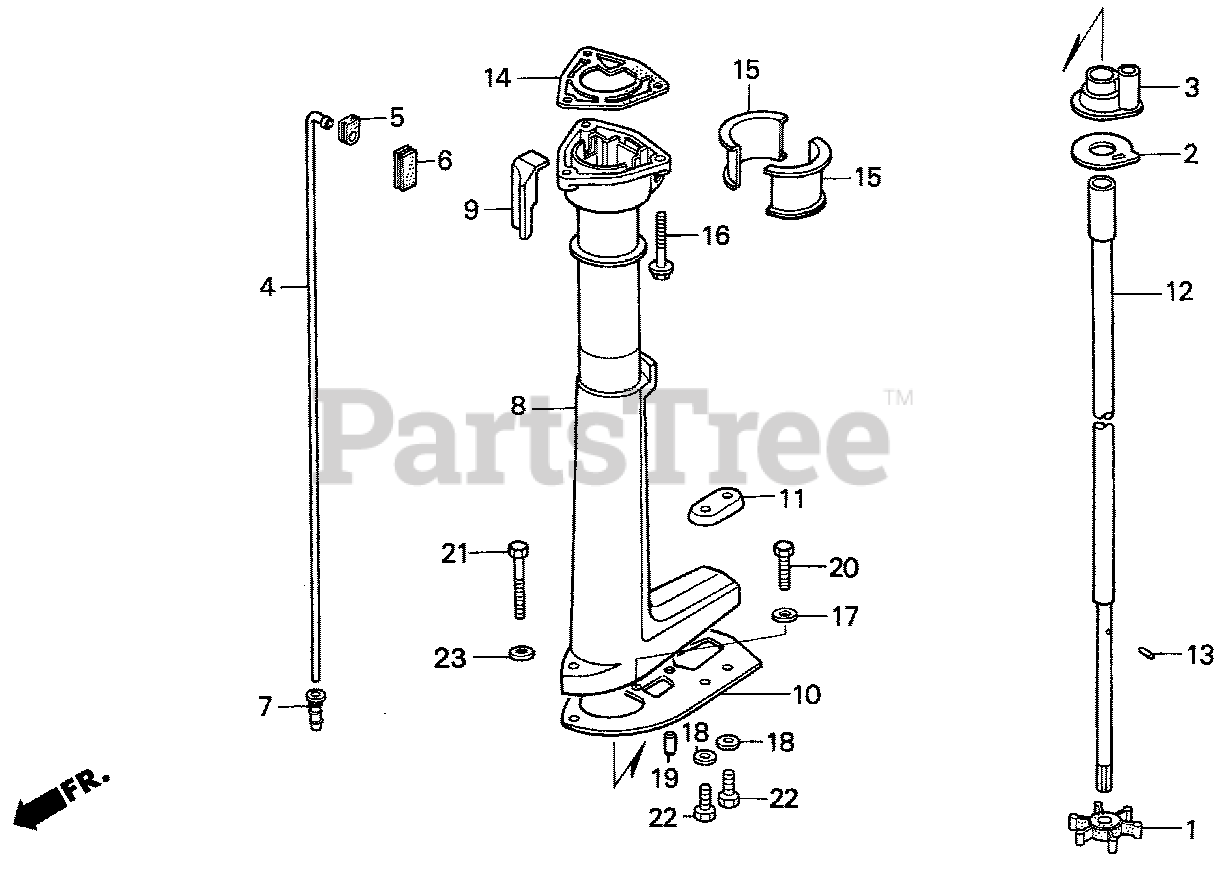

EXTENSION CASE Parts Diagram

  • Title

1

Honda 19211-ZV0-003

IMPELLER, WATER PUMP

$31.99

$

Usually ships in 3-6 days

0

2

Honda 19231-ZV0-000

COVER, IMPELLER

$

$

Not available

3

Honda 19233-ZV0-000

HOLDER, IMPELLER COVER

$

$

Not available

4

Honda 19251-ZV0-700

TUBE, L. WATER

$

$

Not available

5

Honda 19252-ZV0-000

RUBBER A, WATER SEAL

$

$

Not available

6

Honda 19253-ZV0-000

RUBBER B, WATER SEAL

$

$

Not available

7

Honda 19254-ZV0-000

GROMMET, WATER PUMP

$4.99

$

Usually ships in 3-6 days

0

8

Honda 40201-ZV0-842ZA

SEE PART DETAILS - PRI; CASE, EXTENSION *NH210MC* (AQUA SILVER METALLIC-C)

$

$

Currently unavailable

9

Honda 40203-ZV0-000

GUIDE, EX.

$9.99

$

Usually ships in 3-6 days

0

12

Honda 41110-ZV0-700

SHAFT, L. VERTICAL

$

$

Not available

13

Honda 41122-ZV0-000

PIN, VERTICAL SHAFT

$1.99

$

Usually ships in 3-6 days

0

14

Honda 50205-ZV0-850

SEE PART DETAILS - PRI; GASKET, CASE (UPPER)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 50211-ZV0-000

LINER, SWIVEL CASE

$

$

Not available

16

Honda 90123-ZV0-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X32)
(Superseded to 90123-ZV0-010)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90113-ZV0-000

SEE PART DETAILS - PRI; BOLT, HEX. (6X35)

$4.99

$

Usually ships in 3-6 days

0
