BF20 DK2 SHA (BAMJ) - Honda Outboard Engine, Made in Japan (SN: BAMJ-1500001 - BAMJ-9999999) CYLINDER HEAD Parts Diagram

Outboard Engine, Made in Japan

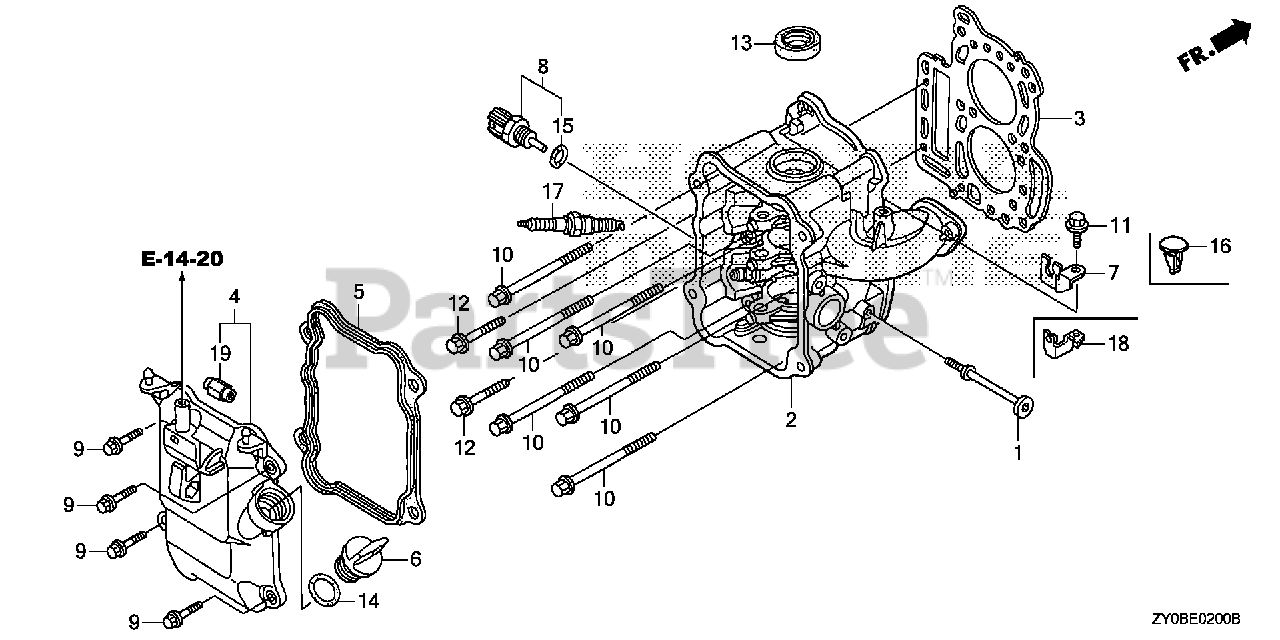

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12166-ZW9-000

STOPPER, ENGINE SIDE
(Superseded to 12166-ZW9-030)

$7.99

$

Usually ships in 3-6 days

0

2

Honda 12210-ZY1-405ZA

CYLINDER HEAD *NH8* (DARK GRAY)

$704.99

$

Usually ships in 3-6 days

0

3

Honda 12251-ZY1-003

GASKET, CYLINDER HEAD

$81.99

$

Usually ships in 3-6 days

0

4

Honda 12310-ZW9-030

COVER, HEAD

$115.99

$

Usually ships in 3-6 days

0

5

Honda 12312-ZW9-000

GASKET, HEAD COVER

$22.99

$

Usually ships in 3-6 days

0

6

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (YELLOW)

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16617-ZW9-010

SEE PART DETAILS - PRI; HOLDER, CABLE

Note: Use up to Engine SN 1022365.

$

$

Not available

8

Honda 35673-ZW5-003

SENSOR ASSY., WATER TEMPERATURE

$29.99

$

Usually ships in 3-6 days

0

9

Honda 90003-ZW9-000

BOLT, FLANGE (6X22)
(Superseded to 90003-ZY9-M01)

$2.99

$

In Stock, only 2 left!

0

10

Honda 90007-ZW9-003

BOLT, FLANGE (8X83)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90155-ZW4-000

BOLT, FLANGE (8X40)
(Superseded to 90055-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 91202-KJ9-003

OIL SEAL (20X32X6)

$7.49

$

In Stock, only 4 left!

0

14

Honda 91301-805-000

O-RING (26X2.7)

$5.99

$

In Stock, only 2 left!

0

15

Honda 91307-PK2-005

O-RING (9.5X1.5) (HONDA KIKAKI)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 98059-55916

SPARK PLUG (CR5EH-9)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 98059-55926

SPARK PLUG (U16FER9)

$13.99

$

Usually ships in 3-6 days

0

18

Honda 16617-ZW9-020

HOLDER, CABLE
(Superseded to 16617-ZW9-030)

Note: Use from Engine SN 1022366.

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90204-ZW9-310

NUT, INSERT

$7.49

$

Usually ships in 3-6 days

0
