BF200 AK1 XCA (BAFJ) - Honda Marine Engine, Made in Japan (SN: BAFJ-1600001 - BAFJ-9999999) FUEL TUBE Parts Diagram

Marine Engine, Made in Japan

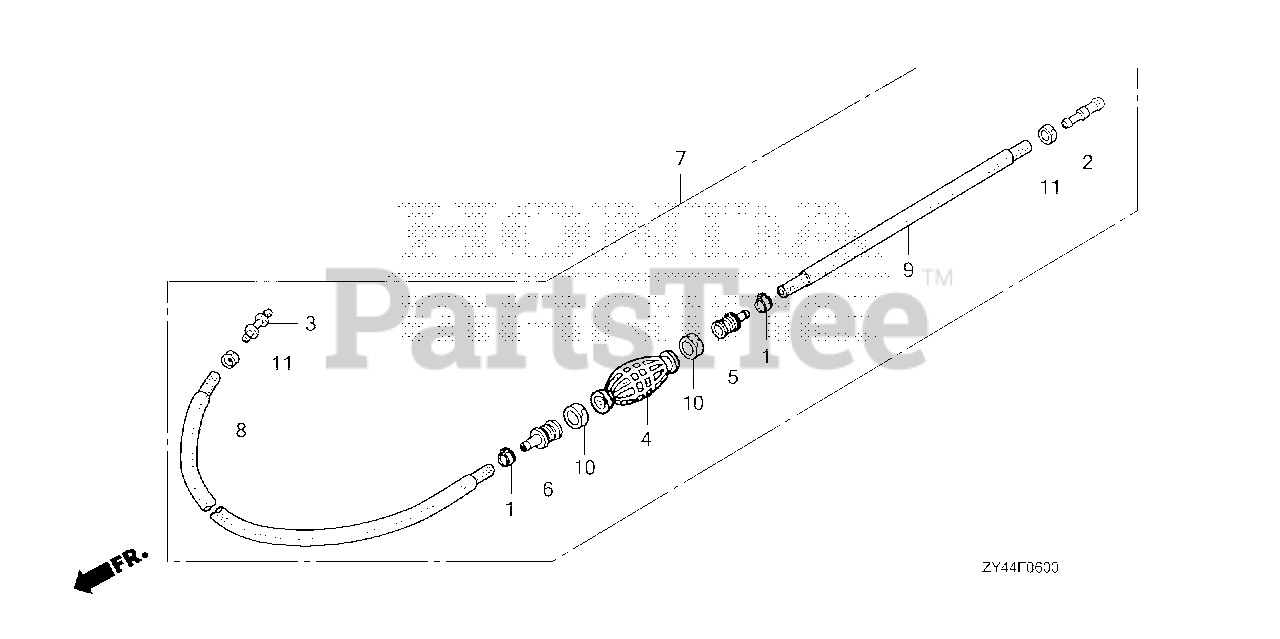

FUEL TUBE Parts Diagram

  • Title

1

Honda 16895-ZW9-900

CLAMP, FUEL TUBE

Note: Use up to Frame SN 1602567.

$4.99

$

Usually ships in 3-6 days

0

1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0)

Note: Use from Frame SN 1602568.

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16966-MR1-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 17661-921-010

SEE PART DETAILS - PRI; BULB, PRIMER

Note: Use up to Frame SN 1602567.

$17.99

$

Usually ships in 3-6 days

0

4

Honda 17661-ZW9-900

BULB, PRIMER

Note: Use from Frame SN 1602568.

$63.99

$

Usually ships in 3-6 days

0

5

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

$203.99

$

Usually ships in 3-6 days

0

7

Honda 17700-ZY3-C03

TUBE ASSY., FUEL TANK (JOINT TYPE)(FKM)

Note: Use from Frame SN 1600876.

$203.99

$

Usually ships in 3-6 days

0

8

Honda 17701-ZY9-E01

TUBE, FUEL LONG (7.3X2000)
(Superseded to 17701-ZY9-E04)

$123.99

$

Usually ships in 3-6 days

0

8

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: Use from Frame SN 1602568.

$123.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E03

TUBE, FUEL SHORT
(Superseded to 17702-ZY9-E04)

Note: Use up to Frame SN 1600875.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E03

TUBE, FUEL SHORT
(Superseded to 17702-ZY9-E04)

Note: Use from Frame SN 1602568.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 17702-ZY9-E02

TUBE, FUEL SHORT (7.3X500)

Note: Use from Frame SN 1600876 to 1602567.

$29.99

$

Usually ships in 3-6 days

0

10

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0
