BF200 D XCDA (BBRJ) - Honda Marine Engine, Made in Japan (SN: BBRJ-8000001 - BBRJ-9999999) OIL PAN Parts Diagram

Marine Engine, Made in Japan

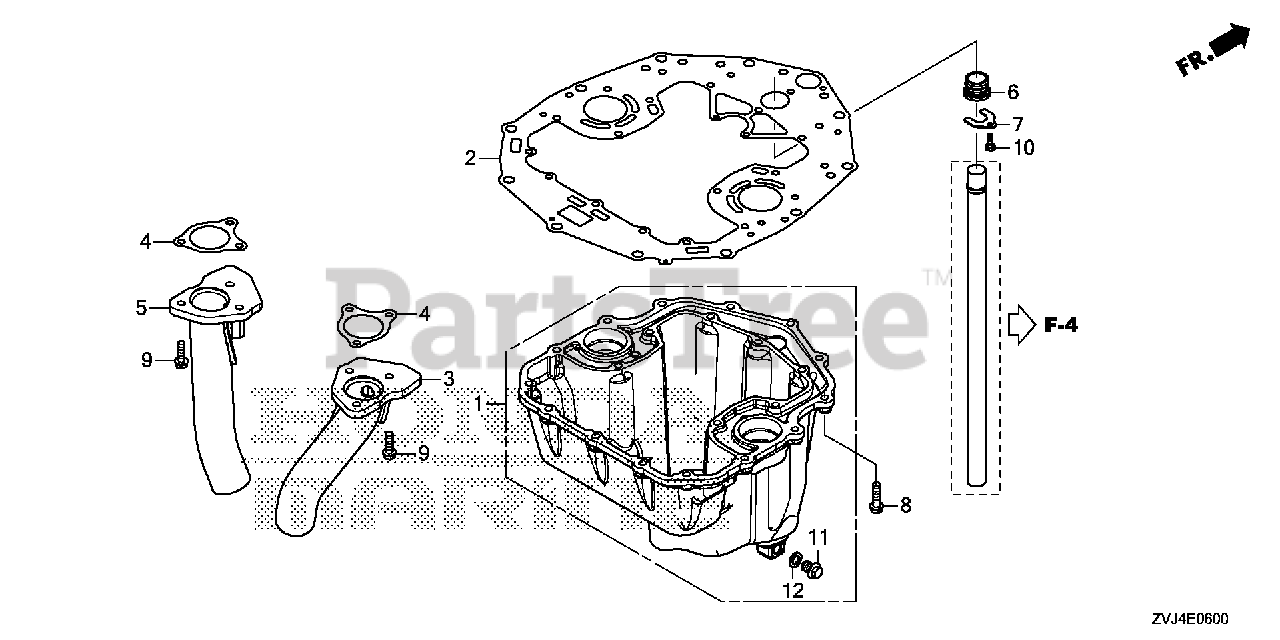

OIL PAN Parts Diagram

  • Title
1

Honda 11310-ZVL-000ZA

PAN ASSY., OIL *TGRAY* (GRAY)

$459.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZVL-003

GASKET, OIL PAN

$75.99

$

Usually ships in 3-6 days

0

3

Honda 18330-ZY3-020

PIPE, R. EX.

$240.99

$

Usually ships in 3-6 days

0

4

Honda 18333-ZVL-003

GASKET, EX. PIPE

$8.49

$

Usually ships in 3-6 days

0

5

Honda 18340-ZY3-020

PIPE, L. EX.

$247.99

$

Usually ships in 3-6 days

0

6

Honda 19252-ZY3-000

GROMMET, WATER TUBE

$8.99

$

Usually ships in 3-6 days

0

7

Honda 19254-ZY3-000

PLATE, WATER TUBE

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90070-ZVL-000

BOLT-WASHER (8X35) (SUS)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 90071-ZVL-000

BOLT-WASHER (8X28) (SUS)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90131-ZV5-000

BOLT, DRAIN PLUG

$10.99

$

Usually ships in 3-6 days

0

12

Honda 90601-ZE2-000

WASHER, DRAIN PLUG (12MM) (Honda Code 2028793).

$3.49

$

Usually ships in 3-6 days

0
