BF225 A6 LA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1400001 - BAGJ-1499999) STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

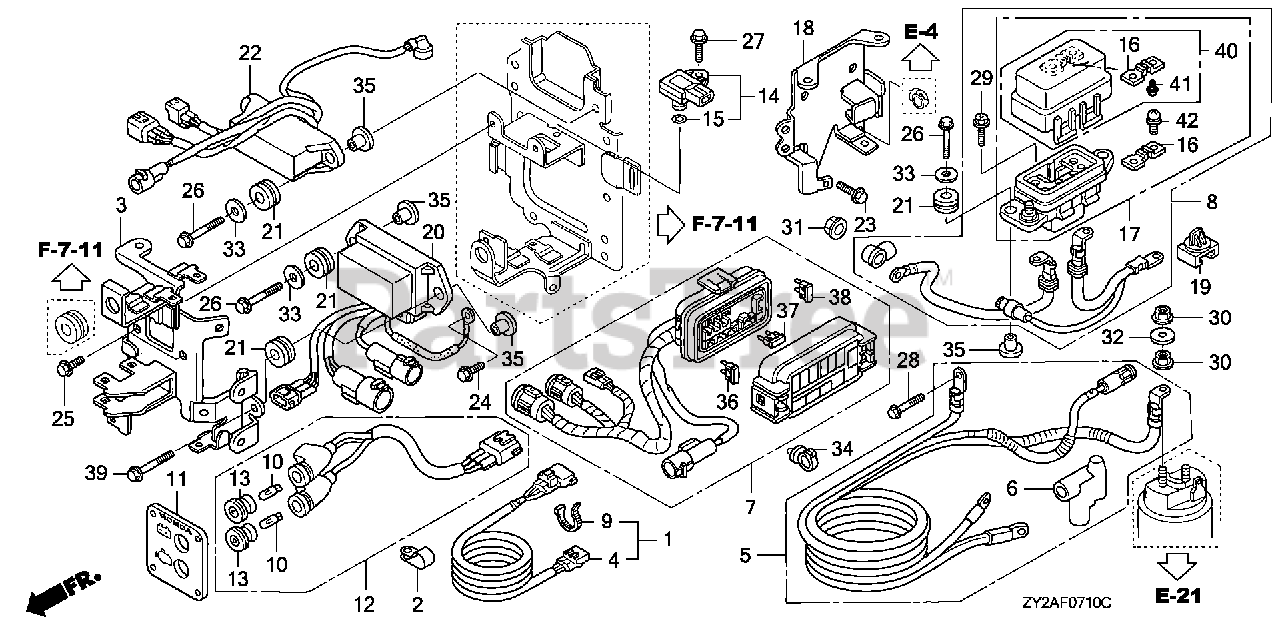

STARTER CABLE Parts Diagram

  • Title

1

Honda 06321-ZW5-902

CORD KIT, INDICATOR (3P/6P) (ANALOG)

Note: (Optional).

$

$

Not available

2

Honda 30569-895-000

CLAMP F, CABLE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 32108-ZY3-A00

BRACKET, CONNECTOR A

$107.99

$

Usually ships in 3-6 days

0

4

Honda 32185-ZY3-010

WIRE ASSY., INDICATOR (3P/6P) (ANALOG)

$62.99

$

Usually ships in 3-6 days

0

5

Honda 32410-ZY3-A02

CABLE ASSY., STARTER

$831.99

$

Usually ships in 3-6 days

0

6

Honda 32411-ZY3-003

COVER, STARTER TERMINAL

$20.99

$

Usually ships in 3-6 days

0

7

Honda 32415-ZY3-A00

CABLE ASSY., MAIN FUSE

$260.99

$

Usually ships in 3-6 days

0

8

Honda 32435-ZY3-A00

CABLE ASSY., ALTERNATOR FUSE

$247.99

$

Usually ships in 3-6 days

0

9

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

10

Honda 34908-KM1-671

BULB, WEDGE BASE (T6.5) (12V 3W)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 37206-ZW5-014

PANEL, INDICATOR (2-BULB)

$41.99

$

Usually ships in 3-6 days

0

12

Honda 37210-ZW5-004

LAMP ASSY., INDICATION (2-BULB)

$135.99

$

Usually ships in 3-6 days

0

13

Honda 37581-KR3-008

LENS, SPEEDOMETER PILOT

$11.99

$

Usually ships in 3-6 days

0

14

Honda 37830-PGK-A01

SENSOR ASSY., MAP

$180.99

$

Usually ships in 3-6 days

0

15

Honda 37835-PGK-A01

O-RING

$13.99

$

Usually ships in 3-6 days

0

16

Honda 38201-ZY3-003

FUSE (150A)

$21.99

$

Usually ships in 3-6 days

0

17

Honda 38210-ZY3-A01

BOX ASSY., FUSE (150A)

$170.99

$

Usually ships in 3-6 days

0

18

Honda 38214-ZY3-A00

BRACKET, FUSE BOX

$66.99

$

Usually ships in 3-6 days

0

19

Honda 38216-ZY3-003

CLIP, CONNECTOR HOLDER (B)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 38550-ZY3-A01

RELAY ASSY., POWER TILT

$452.99

$

Usually ships in 3-6 days

0

21

Honda 38551-ZW1-000

GROMMET, RELAY

$9.99

$

Usually ships in 3-6 days

0

22

Honda 06380-ZY3-000

SEE PART DETAILS - PRI; RELAY ASSY., MAIN

$88.99

$

Usually ships in 3-6 days

0

22

Honda 38580-ZY3-003

SEE PART DETAILS - SUP; RELAY ASSY., MAIN
(Superseded to 06380-ZY3-000)

Note: Use up to Frame SN 1400878.

$88.99

$

Usually ships in 3-6 days

0

23

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90014-ZW9-000

BOLT, FLANGE (6X10)
(Superseded to 90103-ZZ0-M01)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90013-ZW1-000

BOLT-WASHER (6X25)

Note: Use from Frame SN 1401624.

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

Note: Use up to Frame SN 1401623.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90029-ZY3-000

BOLT-WASHER (5X18)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 90107-ZY3-000

BOLT, FLANGE (8X18)

$0.99

$

Usually ships in 3-6 days

0

29

Honda 90108-ZY3-000

BOLT-WASHER (6X16)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 90405-ZY3-000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

Note: Use up to Frame SN 1401623.

$2.99

$

Usually ships in 3-6 days

0

34

Honda 90691-ZB7-003

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

35

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 98200-41000

FUSE, MINI (10A)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, only 4 left!

0

39

Honda 90025-ZY3-000

BOLT, FLANGE (6X22)

Note: Use up to Frame SN 1401623.

$1.99

$

Usually ships in 3-6 days

0

39

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

Note: Use from Frame SN 1401624.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 38216-ZY3-A01

COVER ASSY., FUSE (150A)

$11.99

$

Usually ships in 3-6 days

0

41

Honda 90105-ZW5-003

SCREW-WASHER (3X7)

$3.49

$

Usually ships in 3-6 days

0

42

Honda 90135-ZY3-003

SCREW-WASHER (5X12)

$2.99

$

Usually ships in 3-6 days

0
