BF225 AK0 LA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1500001 - BAGJ-1599999) EXHAUST MANIFOLD + THERMOSTAT Parts Diagram

Marine Engine, Made in Japan

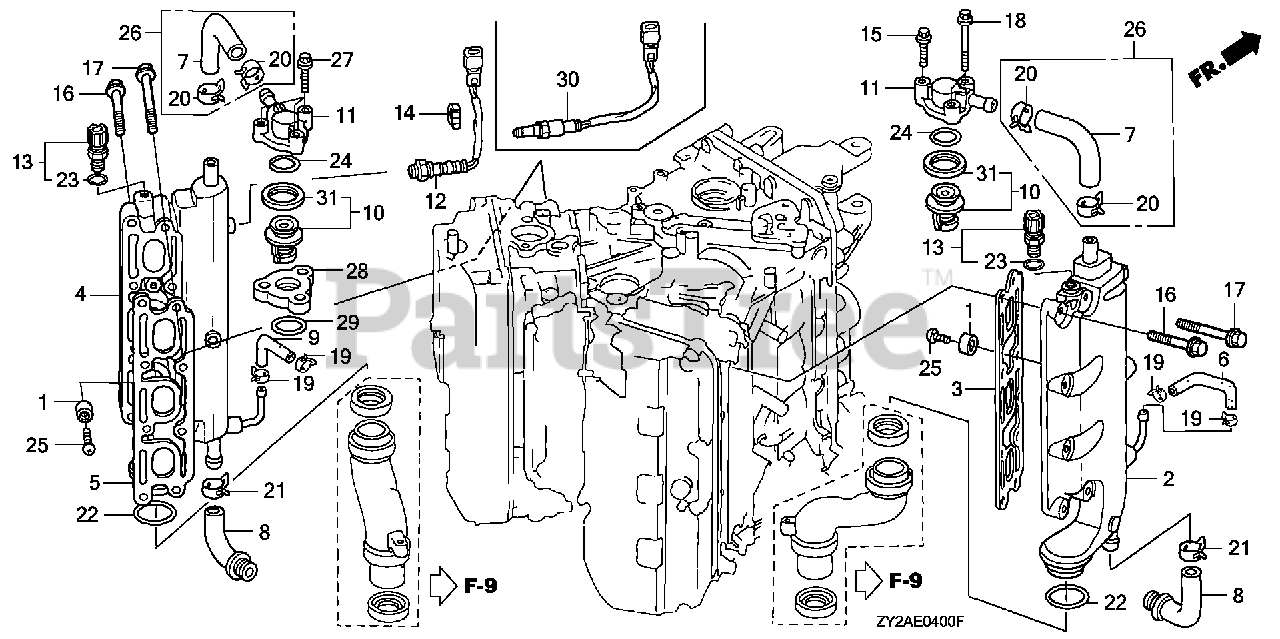

EXHAUST MANIFOLD + THERMOSTAT Parts Diagram

  • Title

1

Honda 12155-ZV5-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

2

Honda 18110-ZY3-010ZA

MANIFOLD, R. EX. *NH8* (DARK GRAY)

$179.99

$

Usually ships in 3-6 days

0

3

Honda 18115-ZY3-003

GASKET, R. EX. MANIFOLD

$39.99

$

Usually ships in 3-6 days

0

4

Honda 18120-ZY3-C00ZA

MANIFOLD, L. EX. *NH8* (DARK GRAY)

Note: Use from Engine SN 1111274.

$

$

Not available

4

Honda 18120-ZY3-010ZA

MANIFOLD, L. EX. *NH8* (DARK GRAY)

Note: Use up to Engine SN 1111273.

$182.99

$

Usually ships in 3-6 days

0

5

Honda 18125-ZY3-003

GASKET, L. EX. MANIFOLD

$39.99

$

Usually ships in 3-6 days

0

6

Honda 19255-ZY3-000

TUBE, R. WATER RETURN

$3.99

$

In Stock, only 1 left!

0

7

Honda 19256-ZY3-010

SEE PART DETAILS - PRI; TUBE, WATER RELIEF

Note: Use from Engine SN 1108207.

$5.99

$

Usually ships in 3-6 days

0

8

Honda 19257-ZY3-000

TUBE, WATER

$23.99

$

Usually ships in 3-6 days

0

9

Honda 19261-ZY3-000

TUBE, L. WATER RETURN

$3.49

$

In Stock, only 1 left!

0

10

Honda 19300-ZY3-023

THERMOSTAT ASSY.

$46.99

$

In Stock, only 1 left!

0

11

Honda 19315-ZY3-020ZA

SEE PART DETAILS - PRI; COVER, THERMOSTAT *NH8* (DARK GRAY)

$38.99

$

Usually ships in 3-6 days

0

12

Honda 35655-ZY3-013

SEE PART DETAILS - PRI; SENSOR, OXYGEN

Note: Use up to Engine SN 1111273.

$398.99

$

Usually ships in 3-6 days

0

13

Honda 35673-ZY3-003

SENSOR ASSY., WATER TEMPERATURE

$28.99

$

In Stock, only 1 left!

0

14

Honda 46391-VM0-003

CLIP, BRAKE PIPE (A) (FOR OXYGEN SENSOR)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90155-ZW4-000

BOLT, FLANGE (8X40)
(Superseded to 90055-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 90027-ZY3-000

BOLT, FLANGE (8X60)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 90034-ZY3-000

BOLT, FLANGE (6X60)
(Superseded to 90034-ZVL-010)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 90601-ZY3-030

CLAMP, TUBE (D10.5)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90603-ZY3-020

CLAMP, TUBE (D29)

Note: Use from Engine SN 1108207.

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90604-ZY3-020

CLAMP, TUBE (D21)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 91301-ZY3-003

O-RING (66.4X3.1)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 91307-PNA-003

O-RING (9.5X1.9)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 91356-SD4-952

O-RING (31.5X2.4) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 93500-06018-4J

SCREW, PAN (6X18)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 06195-ZY3-000

TUBE SET, WATER

Note: Use up to Engine SN 1108206.

$9.99

$

Usually ships in 3-6 days

0

27

Honda 90019-ZW9-000

BOLT, FLANGE (6X35)
(Superseded to 90019-ZZ5-M01)

Note: Use up to Engine SN 1108671.

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90146-ZW4-000

BOLT, FLANGE (6X50)
(Superseded to 90046-ZZ5-M01)

Note: Use from Engine SN 1108672.

$2.49

$

Usually ships in 3-6 days

0

28

Honda 19319-ZY3-A00ZA

SPACER, THERMOSTAT *NH8* (DARK GRAY)

Note: Use from Engine SN 1108672.

$79.99

$

Usually ships in 3-6 days

0

29

Honda 91356-SD4-952

O-RING (31.5X2.4) (ARAI)

Note: Use from Engine SN 1108672.

$4.99

$

Usually ships in 3-6 days

0

30

Honda 35655-ZY3-C01

SEE PART DETAILS - PRI; SENSOR, OXYGEN

Note: Use from Engine SN 1111274.

$393.99

$

Usually ships in 3-6 days

0

30

Honda 35655-ZZ5-004

SEE PART DETAILS - SUP; SENSOR, OXYGEN
(Superseded to 35655-ZY3-C01)

Note: Use from Engine SN 1111274.

$393.99

$

Usually ships in 3-6 days

0

31

Honda 19303-ZW9-003

RUBBER, RING

$6.99

$

In Stock, only 1 left!

0
