BF225 AK1 LA (BAGJ) - Honda Marine Engine, Made in Japan (SN: BAGJ-1600001 - BAGJ-1699999) GEAR CASE Parts Diagram

Marine Engine, Made in Japan

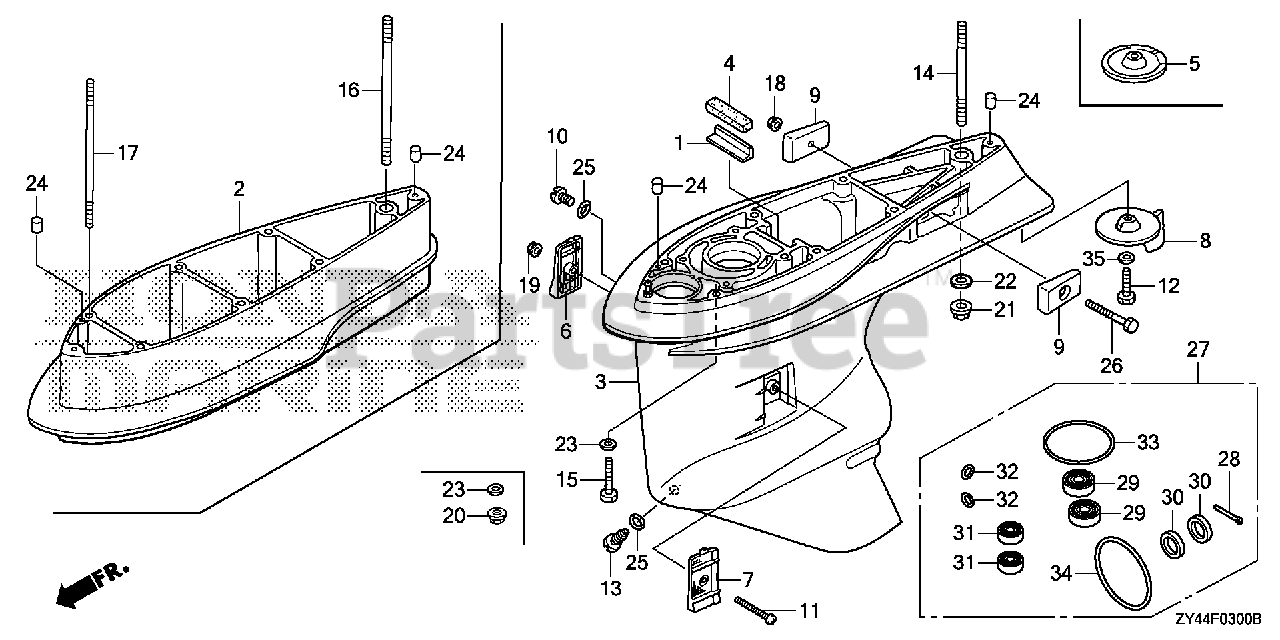

GEAR CASE Parts Diagram

  • Title

1

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$7.99

$

Usually ships in 3-6 days

0

2

Honda 40202-ZY3-621ZA

SEPARATOR, EXTENSION *NH282MU* (OYSTER SILVER METALLIC-U)

$1717.99

$

Usually ships in 3-6 days

0

3

Honda 41101-ZY3-C00ZA

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$1264.99

$

Usually ships in 3-6 days

0

4

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$7.99

$

Usually ships in 3-6 days

0

6

Honda 41104-ZY3-C00

SCREEN, R. WATER

$12.99

$

Usually ships in 3-6 days

0

7

Honda 41105-ZY3-C00

SCREEN, L. WATER

$12.99

$

Usually ships in 3-6 days

0

8

Honda 41107-ZY3-000ZA

TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

9

Honda 41109-ZW1-B00

METAL, ANODE

$22.99

$

Usually ships in 3-6 days

0

10

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

11

Honda 90101-ZZ0-000

SCREW, FLAT (5X55)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90103-ZY3-000

BOLT, HEX. (10X32)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90120-ZY3-000

BOLT, DRAIN PLUG

$18.99

$

Usually ships in 3-6 days

0

16

Honda 90130-ZY3-620

BOLT, STUD (12X170)

$79.99

$

Usually ships in 3-6 days

0

17

Honda 90131-ZY3-620

BOLT, STUD (10X170)

$53.99

$

Usually ships in 3-6 days

0

18

Honda 90205-ZY1-000

NUT, SELF-LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.49

$

Usually ships in 3-6 days

0

20

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.49

$

In Stock, only 2 left!

0

21

Honda 90308-ZW1-003

NUT, SELF-LOCK (12MM)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 3 left!

0

26

Honda 92101-06055-4J

BOLT, HEX. (6X55)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 06125-ZY3-C00

CASE KIT, GEAR

$37.99

$

Usually ships in 3-6 days

0

28

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 91251-ZY3-C01

SEAL, WATER (26X42X7)

$7.49

$

Usually ships in 3-6 days

0

30

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$8.49

$

Usually ships in 3-6 days

0

31

Honda 91254-ZY3-003

SEAL, WATER (12X21X6)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 91301-ZW4-003

O-RING (6.9X1.45)

$1.49

$

In Stock, only 3 left!

0

33

Honda 91308-MJ0-003

O-RING

$4.99

$

Usually ships in 3-6 days

0

34

Honda 91351-ZY3-C00

O-RING (110X3.1)

$9.49

$

Usually ships in 3-6 days

0

35

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0
