BF25 A2 SHA (BAJS) - Honda Marine Engine, Made in Japan (SN: BAJS-3220001 - BAJS-3299999) PROPELLER Parts Diagram

Marine Engine, Made in Japan

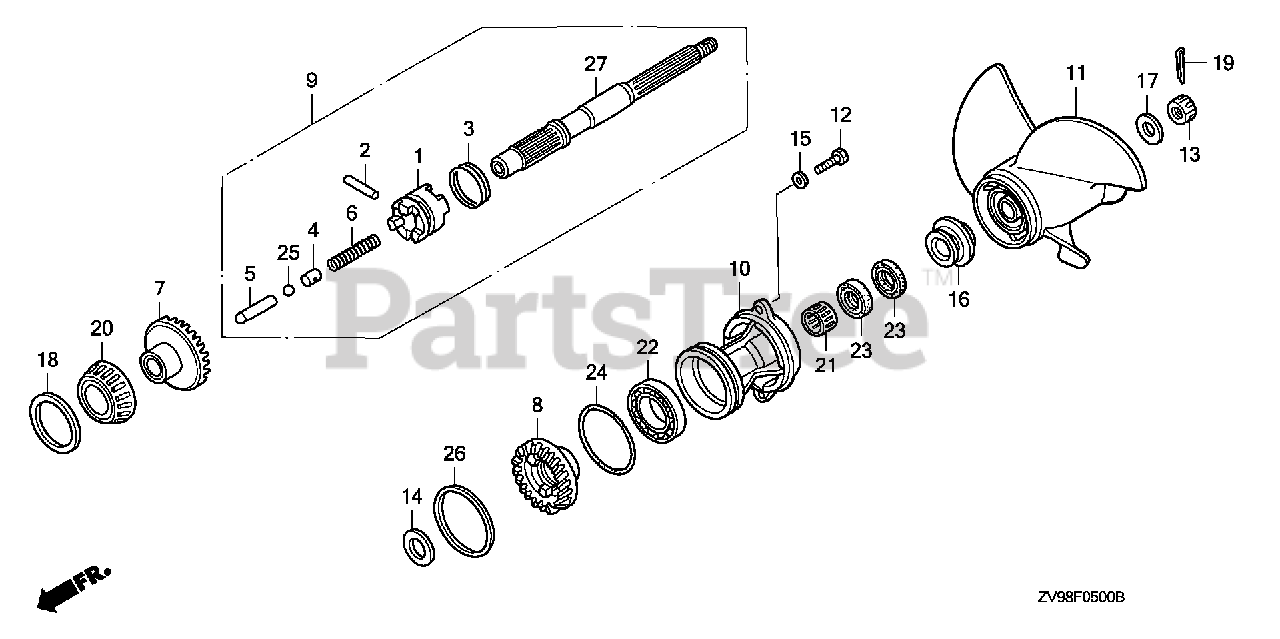

PROPELLER Parts Diagram

  • Title

1

Honda 24101-ZV7-000

SHIFTER, CLUTCH

Note: Use up to Frame SN 3220830.

$

$

Not available

1

Honda 24101-ZV7-020

SHIFTER, CLUTCH

Note: Use from Frame SN 3220831.

$84.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZV7-000

PIN, SHIFTER

$5.49

$

Usually ships in 3-6 days

0

3

Honda 24103-ZV7-000

RING, CROSS PIN

$2.99

$

Usually ships in 3-6 days

0

4

Honda 24106-ZV5-000

HOLDER, SHIFTER PIN

$12.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZV7-000

SLIDER, SHIFT

$17.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZV5-003

SPRING, SHIFT

$6.99

$

Usually ships in 3-6 days

0

7

Honda 41145-ZV7-000

GEAR, FR. BEVEL
(Superseded to 41145-ZV7-010)

$296.99

$

Usually ships in 3-6 days

0

8

Honda 41151-ZV7-000

GEAR, RR. BEVEL

Note: Use up to Frame SN 3220830.

$

$

Not available

8

Honda 41151-ZV7-020

GEAR, RR. BEVEL

Note: Use from Frame SN 3220831.

$198.99

$

Usually ships in 3-6 days

0

9

Honda 41160-ZV7-000

SHAFT ASSY., PROPELLER

Note: Use up to Frame SN 3220830.

$298.99

$

Usually ships in 3-6 days

0

9

Honda 41160-ZV7-040

SHAFT ASSY., PROPELLER

Note: Use from Frame SN 3220831.

$381.99

$

Usually ships in 3-6 days

0

10

Honda 41201-ZV7-000ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use up to Frame SN 3220830.

$

$

Not available

10

Honda 41201-ZV7-010ZA

HOLDER, PROPELLER SHAFT *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use from Frame SN 3220831.

$99.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZV7-000ZA

PROPELLER, THREE-BLADE (9-1/4X12) (91X120) *NH283* (STIN GRAY)

$255.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZV7-850ZA

PROPELLER, THREE-BLADE (9-3/4X9-7/8) (98X99) *NH283* (STIN GRAY)

Note: (Optional).

$278.99

$

Usually ships in 3-6 days

0

11

Honda 58130-ZV7-860ZB

PROPELLER, THREE-BLADE (10X8-1/4) (100X83) *NH283* (STIN GRAY)

Note: (Optional).

$278.99

$

Usually ships in 3-6 days

0

12

Honda 90124-ZV4-000

BOLT, HEX. (6X20)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90301-ZV7-000

NUT, CASTLE

$13.99

$

Usually ships in 3-6 days

0

14

Honda 90503-ZV5-000

WASHER (22MM)

$9.49

$

Usually ships in 3-6 days

0

15

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.99

$

In Stock, only 2 left!

0

16

Honda 90506-ZV7-000

SEE PART DETAILS - SUP; WASHER, PROPELLER THRUST
(Superseded to 90506-ZV7-020)

$45.99

$

Usually ships in 3-6 days

0

17

Honda 90508-ZV7-000

WASHER

$10.99

$

Usually ships in 3-6 days

0

18

Honda 90528-ZV5-000

SHIM, FR. BEVEL (51X57X0.10) (A)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90529-ZV5-000

SHIM, FR. BEVEL (51X57X0.15) (B)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90530-ZV5-000

SHIM, FR. BEVEL (51X57X0.30) (C)

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90531-ZV5-000

SHIM, FR. BEVEL (51X57X0.50) (D)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 90758-ZV1-000

PIN, SPLIT

$3.99

$

In Stock, only 2 left!

0

20

Honda 91051-ZV5-003

BEARING (32X58X17)

$58.99

$

Usually ships in 3-6 days

0

21

Honda 91053-ZV5-003

BEARING, NEEDLE (22X28X20)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 91062-HA7-672

BEARING, RADIAL BALL (32X58X13) (KOYO)

$40.99

$

Usually ships in 3-6 days

0

23

Honda 91252-ZV5-003

SEAL, WATER (22X35X7)

$13.99

$

In Stock, only 2 left!

0

24

Honda 91351-ZV7-003

O-RING (64X3)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 96211-11000

BALL, STEEL (#11) (11/32)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 90528-ZV5-000

SHIM, FR. BEVEL (51X57X0.10) (A)

Note: Use up to Frame SN 3220830.

$12.99

$

Usually ships in 3-6 days

0

26

Honda 90529-ZV5-000

SHIM, FR. BEVEL (51X57X0.15) (B)

Note: Use up to Frame SN 3220830.

$12.99

$

Usually ships in 3-6 days

0

26

Honda 90530-ZV5-000

SHIM, FR. BEVEL (51X57X0.30) (C)

Note: Use up to Frame SN 3220830.

$12.99

$

Usually ships in 3-6 days

0

26

Honda 90531-ZV5-000

SHIM, FR. BEVEL (51X57X0.50) (D)

Note: Use up to Frame SN 3220830.

$12.99

$

Usually ships in 3-6 days

0

27

Honda 41161-ZV7-020

SHAFT, PROPELLER

Note: Use from Frame SN 3220831.

$316.99

$

Usually ships in 3-6 days

0
