BF25 DK0 SHA (BATJ) - Honda Marine Engine, Made in Japan (SN: BATJ-1300001 - BATJ-9999999) REGULATOR (1) Parts Diagram

Marine Engine, Made in Japan

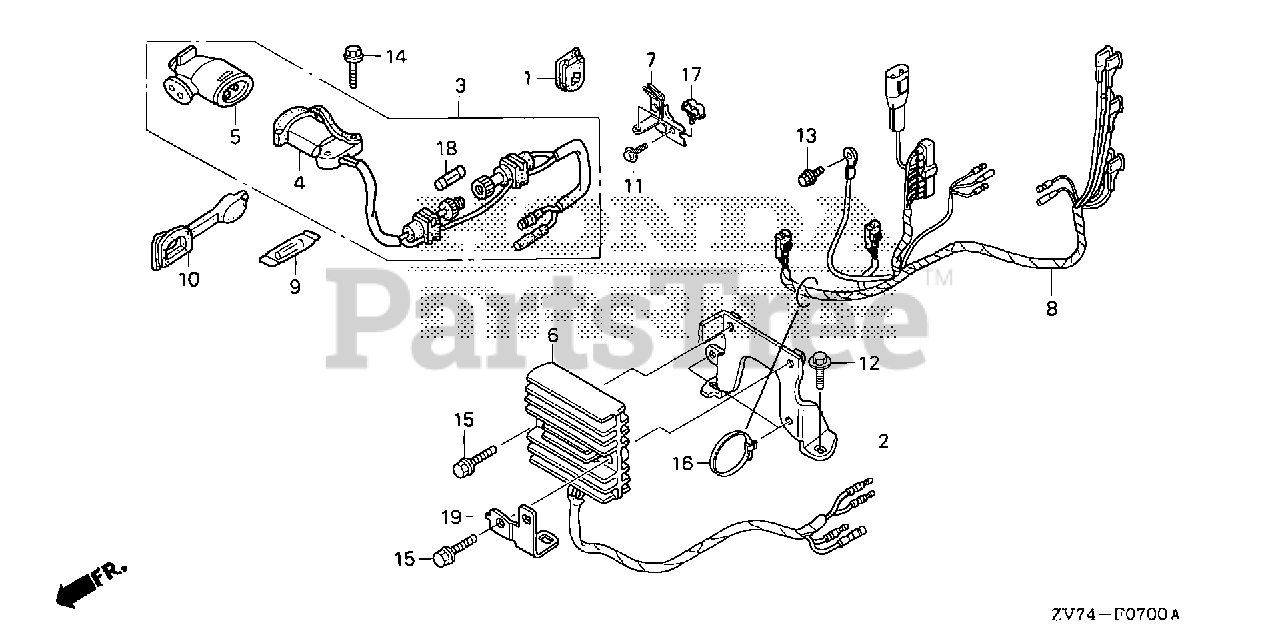

REGULATOR (1) Parts Diagram

  • Title

1

Honda 30564-ZA5-000

GROMMET, WIRE

$7.49

$

Usually ships in 3-6 days

0

2

Honda 31604-ZV7-010

SEE PART DETAILS - PRI; BRACKET, REGULATOR

$

$

Not available

3

Honda 31650-ZV7-013

RECEPTACLE ASSY., CHARGE

$

$

Not available

4

Honda 31651-ZV7-003

RECEPTACLE

$

$

Not available

5

Honda 31652-881-024

SEE PART DETAILS - PRI; PLUG, RECEPTACLE

$26.99

$

Usually ships in 3-6 days

0

6

Honda 31750-ZW2-F01

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (12A)

$

$

Not available

6

Honda 31750-ZW2-F31

SEE PART DETAILS - SUP; RECTIFIER ASSY., REGULATOR (12A)
(Superseded to 31750-ZW2-F01)

$

$

Not available

7

Honda 32112-ZW2-F00

BRACKET, FUSE CASE

$44.99

$

Usually ships in 3-6 days

0

8

Honda 32150-ZW2-F30

CABLE ASSY., IGNITION CONTROL MODULE (1) (CDI)

$145.99

$

Usually ships in 3-6 days

0

9

Honda 38207-ZV4-000

FUSE, SPARE (15A)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 40107-ZV7-000

GROMMET, CASE (LOWER) (C)

$21.99

$

Usually ships in 3-6 days

0

11

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90013-ZV0-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90014-ZV1-010

SEE PART DETAILS - PRI; BOLT, FLANGE (5X22)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90018-ZW5-000

BOLT, FLANGE (6X20)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06020-02

BOLT, FLANGE (6X20)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90688-ZV4-003

CLIP, CORD

$3.49

$

Usually ships in 3-6 days

0

18

Honda 98200-11500

FUSE (15A)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 32108-ZV7-010

BRACKET, CONNECTOR
(Superseded to 32108-ZV7-020)

$

$

Not available
