BF250 A LW (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-1000001 - BBJJ-9999999) CRANKCASE Parts Diagram

Marine Engine, Made in Japan

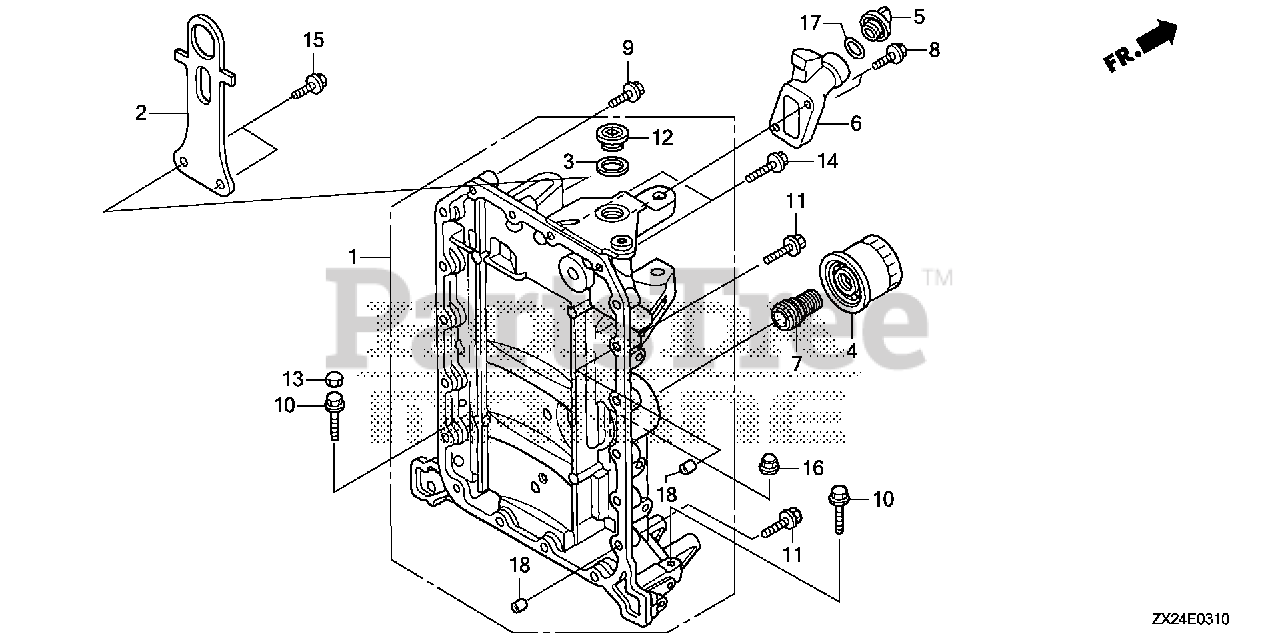

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-ZY3-020

CRANKCASE
(Superseded to 11100-ZY3-030)

Note: Use from Engine SN 1007688.

$

$

Not available

1

Honda 11100-ZY3-415

CRANKCASE

Note: Use up to Engine SN 1007687.

$758.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZX2-000

HANGER, ENGINE

$42.99

$

Usually ships in 3-6 days

0

3

Honda 12214-ZV5-000

SEE PART DETAILS - PRI; WASHER, SEALING (22MM)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 15400-PLM-A01

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD IN MULTIPLES OF 30)
(Superseded to 15400-PLM-A02)

$12.99

$

In Stock, Qty 5

0

4

Honda 15400-PLM-A01PE

SEE PART DETAILS - PRI; FILTER, OIL (FILTECH TOYO ROKI) (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 12

0

5

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (YELLOW)

$15.99

$

Usually ships in 3-6 days

0

6

Honda 15631-ZW1-000

EXTENSION, OIL FILLER

$46.99

$

Usually ships in 3-6 days

0

7

Honda 90015-PH1-013

HOLDER, OIL FILTER

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 90031-ZY3-000

BOLT, FLANGE (6X32)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90041-ZY3-000

BOLT, FLANGE (10X55)
(Superseded to 90041-ZVL-010)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90063-ZY3-000

BOLT, FLANGE (6X37)
(Superseded to 90063-ZVL-010)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90081-ZV5-010

BOLT, SEALING (22MM)
(Superseded to 90081-ZZ5-M01)

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90082-ZY3-003

CAP, BOLT (10MM)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90147-ZW4-000

BOLT, FLANGE (6X55)
(Superseded to 90047-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 90151-ZW4-000

BOLT, FLANGE (8X25)
(Superseded to 90151-ZZ0-M01)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90204-ZY3-000

NUT, FLANGE CAP (10MM)
(Superseded to 90204-ZVL-010)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91301-805-000

O-RING (26X2.7)

$5.99

$

In Stock, only 2 left!

0

18

Honda 94301-08140

PIN, DOWEL (8X14)

$3.49

$

In Stock, only 3 left!

0
