BF250 A XCA (BBJJ) - Honda Marine Engine, Made in Japan (SN: BBJJ-8000001 - BBJJ-9999999) PROPELLER SHAFT (COUNTER ROTATION) Parts Diagram

Marine Engine, Made in Japan

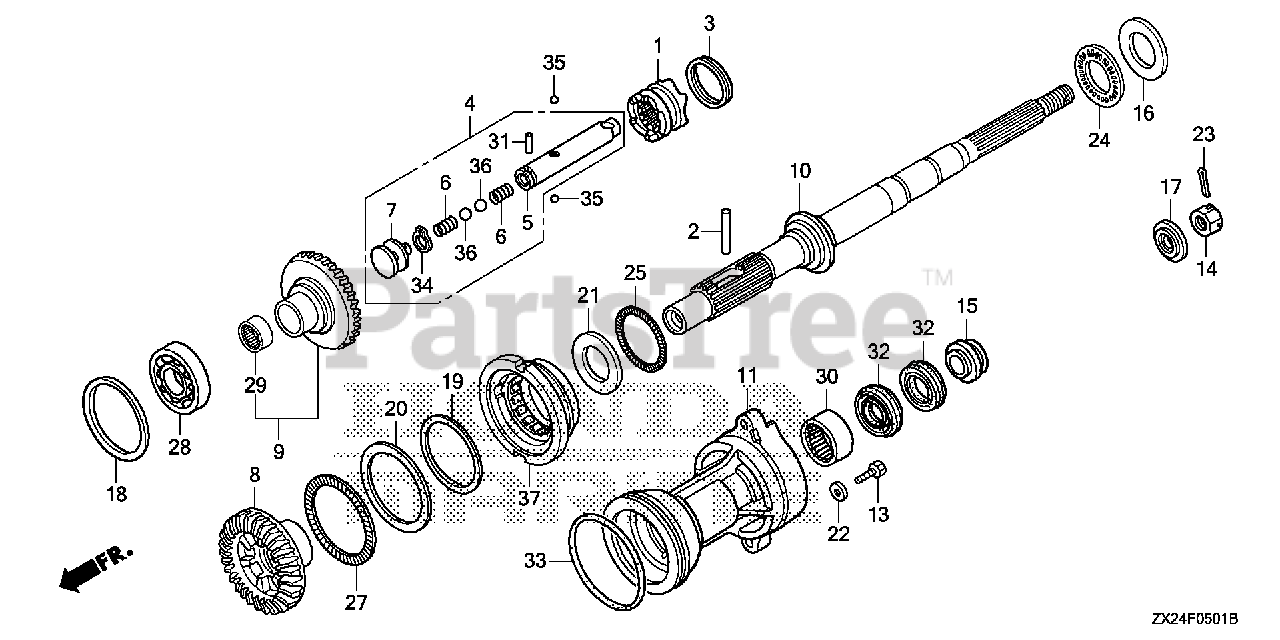

PROPELLER SHAFT (COUNTER ROTATION) Parts Diagram

  • Title

1

Honda 24101-ZX2-C00

SHIFTER, CLUTCH

$277.99

$

Usually ships in 3-6 days

0

2

Honda 24102-ZY3-000

PIN, SHIFTER (8X50)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 24103-ZY3-000

RING, CROSS PIN

$3.49

$

Usually ships in 3-6 days

0

4

Honda 24113-ZY3-A01

SLIDER, SHIFT

$105.99

$

Usually ships in 3-6 days

0

5

Honda 24122-ZY3-A01

SLIDER, SHIFT

$80.99

$

Usually ships in 3-6 days

0

6

Honda 24123-ZY3-000

SPRING, SHIFT

$2.99

$

Usually ships in 3-6 days

0

7

Honda 24124-ZY3-310

PLATE, SHIFT

$20.99

$

Usually ships in 3-6 days

0

8

Honda 41141-ZX2-E00

GEAR, BEVEL (24T) (FORWARD)(COUNTER ROTATION)

$

$

Not available

9

Honda 41150-ZX2-E00

GEAR, BEVEL (24T) (REVERSE)(COUNTER ROTATION)

$695.99

$

Usually ships in 3-6 days

0

10

Honda 41161-ZX2-E00

SHAFT, PROPELLER

$441.99

$

Usually ships in 3-6 days

0

11

Honda 41201-ZX2-C00ZA

HOLDER, PROPELLER SHAFT *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 41201-ZVL-010ZC)

$276.99

$

Usually ships in 3-6 days

0

11

Honda 41201-ZX2-C00ZD

HOLDER, PROPELLER SHAFT *NH565* (GRAND PRIX WHITE)

$314.99

$

Usually ships in 3-6 days

0

13

Honda 90123-ZY3-000

BOLT, HEX. (12X45)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90301-ZW1-B00

NUT, CASTLE (18MM)

$14.99

$

Usually ships in 3-6 days

0

15

Honda 90506-ZX2-C00

WASHER, PROPELLER THRUST

$48.99

$

Usually ships in 3-6 days

0

16

Honda 90509-ZW5-711

SEE PART DETAILS - PRI; WASHER, THRUST BEARING

$18.99

$

Usually ships in 3-6 days

0

17

Honda 90512-ZX2-C00

SEE PART DETAILS - PRI; WASHER, PROPELLER

$47.99

$

Usually ships in 3-6 days

0

18

Honda 90528-ZX2-C00

SHIM A, BEVEL (0.10)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 90529-ZX2-C00

SHIM B, BEVEL (0.15)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 90530-ZX2-C00

SHIM C, BEVEL (0.30)

$20.99

$

Usually ships in 3-6 days

0

18

Honda 90531-ZX2-C00

SHIM D, BEVEL (0.50)

$20.99

$

Usually ships in 3-6 days

0

19

Honda 90528-ZX2-E00

SHIM A, BEVEL (0.10) (COUNTER ROTATION)

$21.99

$

Usually ships in 3-6 days

0

19

Honda 90529-ZX2-E00

SHIM B, BEVEL (0.15) (COUNTER ROTATION)

$21.99

$

Usually ships in 3-6 days

0

19

Honda 90530-ZX2-E00

SHIM C, BEVEL (0.30) (COUNTER ROTATION)

$21.99

$

Usually ships in 3-6 days

0

19

Honda 90531-ZX2-E00

SHIM D, BEVEL (0.50) (COUNTER ROTATION)

$21.99

$

Usually ships in 3-6 days

0

20

Honda 90541-ZX2-E01

WASHER, THRUST (85X110X2)

$22.99

$

Usually ships in 3-6 days

0

21

Honda 90542-ZX2-E01

WASHER, THRUST (48X74X3) (COUNTER ROTATION)

$21.99

$

Usually ships in 3-6 days

0

22

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

23

Honda 90758-ZW1-B00

PIN, SPLIT (4.0)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 91005-PT2-N01

BEARING, THRUST (F)

$20.99

$

Usually ships in 3-6 days

0

25

Honda 91033-PG4-013

BEARING, NEEDLE (50X72X4.5)

$35.99

$

Usually ships in 3-6 days

0

27

Honda 91054-ZX2-E01

BEARING, THRUST NEEDLE (85X110X4)

$34.99

$

Usually ships in 3-6 days

0

28

Honda 91055-ZX2-C01

BEARING, RADIAL BALL (55X100X21)

$55.99

$

Usually ships in 3-6 days

0

29

Honda 91056-ZY3-711

BEARING, NEEDLE (28X39X30)

$54.99

$

Usually ships in 3-6 days

0

30

Honda 91057-ZY3-003

BEARING, NEEDLE (32X42X30)

$57.99

$

Usually ships in 3-6 days

0

31

Honda 91151-ZY3-000

ROLLER (3X13.8)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 91252-ZZ3-003

SEAL, WATER (30X45X7)

$8.49

$

Usually ships in 3-6 days

0

33

Honda 91351-ZX2-C00

O-RING (121X3.1)

$8.99

$

Usually ships in 3-6 days

0

34

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

35

Honda 96211-07000

BALL, STEEL (#7) (7/32)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 96211-12000

BALL, STEEL (#12) (3/8)

$0.99

$

Usually ships in 3-6 days

0

37

Honda 41200-ZX2-E00

HOLDER ASSY., BEARING (COUNTER ROTATION)

$281.99

$

Usually ships in 3-6 days

0
