BF250 D UCDA (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) ELECTRONIC CONTROL UNIT Parts Diagram

Marine Engine, Made in Japan

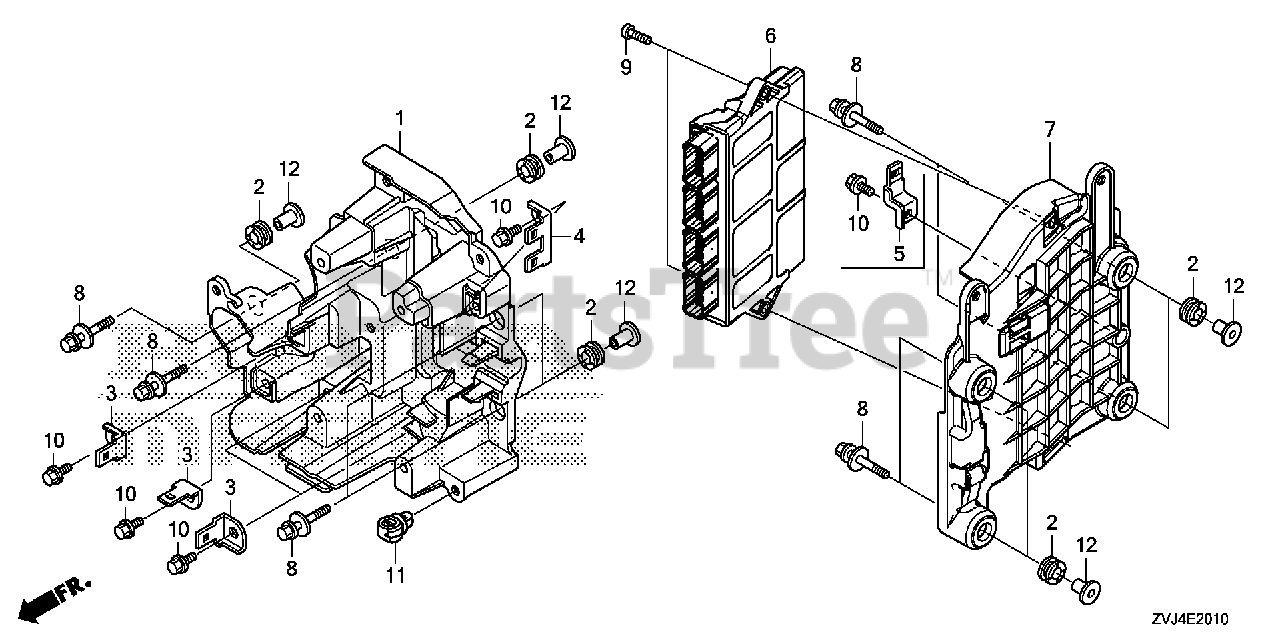

ELECTRONIC CONTROL UNIT Parts Diagram

  • Title

1

Honda 30416-ZVL-000

CASE, ELECTRONIC PARTS

Note: Use up to Engine SN 1001894.

$68.99

$

Usually ships in 3-6 days

0

1

Honda 30416-ZVL-010

CASE, ELECTRONIC PARTS
(Superseded to 30416-ZVL-020)

Note: Use from Engine SN 1001895.

$65.99

$

Usually ships in 3-6 days

0

2

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$6.99

$

Usually ships in 3-6 days

0

3

Honda 32101-ZVL-000

BRACKET, ALTERNATOR FUSE

$6.99

$

Usually ships in 3-6 days

0

4

Honda 32102-ZVL-000

BRACKET, CONNECTOR A

$7.49

$

Usually ships in 3-6 days

0

5

Honda 32117-ZW9-000

BRACKET, CONNECTOR (D)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 34750-ZVL-033

CONTROL UNIT, ELECTRONIC

$1840.99

$

Usually ships in 3-6 days

0

7

Honda 34754-ZVL-000

CASE, ELECTRONIC CONTROL UNIT

$134.99

$

Usually ships in 3-6 days

0

8

Honda 90015-ZVL-000

BOLT-WASHER (6X27)
(Superseded to 90015-ZVL-010)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90102-ZZ0-M00

BOLT, TORX (M6X20)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90103-ZZ0-M00

BOLT, FLANGE (6X10)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$14.99

$

Usually ships in 3-6 days

0

12

Honda 91503-ZY9-M00

COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.49

$

Usually ships in 3-6 days

0
