BF250 D UCDA (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) SWITCH PANEL KIT (START STOP) Parts Diagram

Marine Engine, Made in Japan

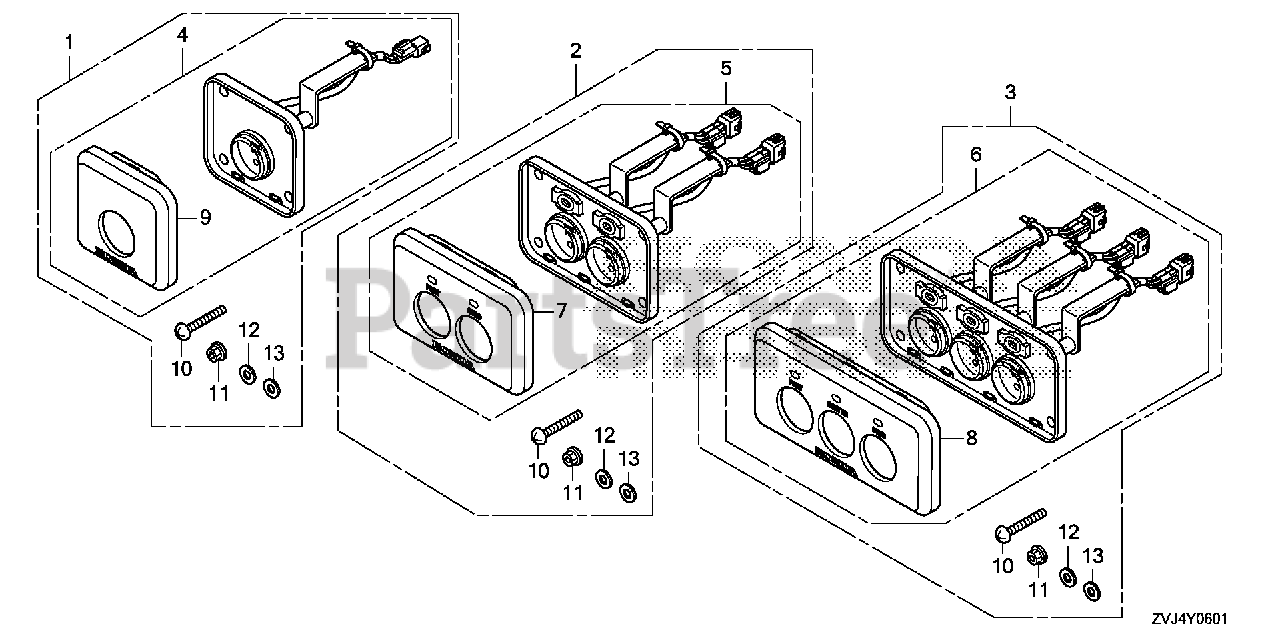

SWITCH PANEL KIT (START STOP) Parts Diagram

  • Title

1

Honda 06324-ZVL-010

PANEL KIT, START STOP SWITCH (ALL)
(Superseded to 06324-ZVL-020)

Note: (Optional).

$136.99

$

Usually ships in 3-6 days

0

1

Honda 06324-ZVL-600

PANEL KIT, START STOP SWITCH (SINGLE)

Note: (Optional).

$118.99

$

Usually ships in 3-6 days

0

2

Honda 06324-ZVL-701

PANEL KIT, START STOP SWITCH (TWIN)

Note: (Optional).

$

$

Currently unavailable

3

Honda 06324-ZVL-801

PANEL KIT, START STOP SWITCH (TRIPLE)

Note: (Optional).

$

$

Currently unavailable

4

Honda 32340-ZVL-003

PANEL ASSY., START STOP (ALL)

Note: (Optional).

$92.99

$

Usually ships in 3-6 days

0

4

Honda 32340-ZVL-601

PANEL ASSY., START STOP (SINGLE)

Note: (Optional).

$92.99

$

Usually ships in 3-6 days

0

5

Honda 32340-ZVL-701

PANEL ASSY., START STOP (TWIN)

Note: (Optional).

$209.99

$

Usually ships in 3-6 days

0

6

Honda 32340-ZVL-801

PANEL ASSY., START STOP (TRIPLE)

Note: (Optional).

$325.99

$

Usually ships in 3-6 days

0

7

Honda 32344-ZVL-701

PANEL, START STOP (TWIN)

Note: (Optional).

$58.99

$

Usually ships in 3-6 days

0

8

Honda 32344-ZVL-801

PANEL, START STOP (TRIPLE)

Note: (Optional).

$78.99

$

Usually ships in 3-6 days

0

9

Honda 32346-ZVL-003

PANEL, START STOP (ALL)

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

9

Honda 32346-ZVL-601

PANEL, START STOP (SINGLE)

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

10

Honda 90109-ZW5-000

SCREW, PAN (5X40) DUAL QTY = (8) (SINGLE)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90301-ZZ5-M00

NUT, FLANGE (5MM)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 90501-ZZ5-M00

WASHER, PLAIN (5MM)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90502-ZZ5-M00

WASHER, SPRING (5MM)

$2.49

$

Usually ships in 3-6 days

0
