BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) ALTERNATOR Parts Diagram

Marine Engine, Made in Japan

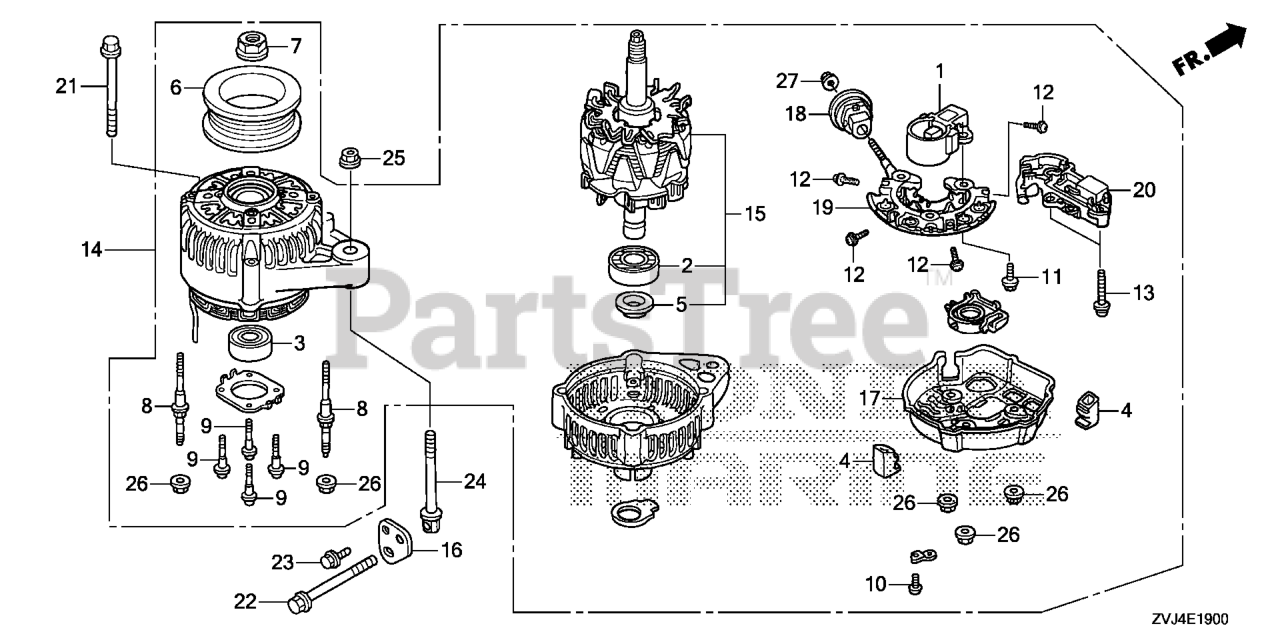

ALTERNATOR Parts Diagram

  • Title

1

Honda 31105-PR7-A01

HOLDER ASSY., BRUSH

$64.99

$

Usually ships in 3-6 days

0

2

Honda 31111-PT0-003

BEARING, RR. GENERATOR

$52.99

$

Usually ships in 3-6 days

0

3

Honda 31114-PT0-013

BEARING, FR. GENERATOR

$52.99

$

Usually ships in 3-6 days

0

4

Honda 31118-PT0-003

BUSH, INSULATION

$10.99

$

Usually ships in 3-6 days

0

5

Honda 31138-PD1-004

COVER, BEARING

$13.99

$

Usually ships in 3-6 days

0

6

Honda 31141-P13-003

PULLEY

$164.99

$

Usually ships in 3-6 days

0

7

Honda 31142-PD1-004

NUT, PULLEY LOCK

$10.99

$

Usually ships in 3-6 days

0

8

Honda 31145-PD1-004

BOLT, STUD (6X68)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 31146-PT0-003

SCREW

$4.99

$

Usually ships in 3-6 days

0

10

Honda 31147-P13-003

SCREW

$3.49

$

Usually ships in 3-6 days

0

11

Honda 31147-PT0-003

SCREW-WASHER

$3.99

$

Usually ships in 3-6 days

0

12

Honda 31148-P13-003

SCREW, WAVE WASHER

$3.49

$

Usually ships in 3-6 days

0

13

Honda 31148-PT0-003

SCREW, WAVE WASHER

$3.99

$

Usually ships in 3-6 days

0

14

Honda 31630-ZY3-013

SEE PART DETAILS - PRI; ALTERNATOR ASSY.

$1586.99

$

Usually ships in 3-6 days

0

15

Honda 31631-ZY3-003

ROTOR ASSY.

$482.99

$

Usually ships in 3-6 days

0

16

Honda 31637-ZVL-000

STAY, ALTERNATOR

$6.99

$

Usually ships in 3-6 days

0

17

Honda 31639-ZY3-003

END COVER, RR.

$195.99

$

Usually ships in 3-6 days

0

18

Honda 31694-ZY3-003

BUSH, INSULATION

$13.99

$

Usually ships in 3-6 days

0

19

Honda 31710-ZY3-003

RECTIFIER ASSY.

$260.99

$

Usually ships in 3-6 days

0

20

Honda 31750-ZY3-003

REGULATOR ASSY.

$340.99

$

Usually ships in 3-6 days

0

21

Honda 90002-ZVL-010

BOLT, FLANGE (10X90)

Note: Use from Engine SN 1006952.

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90002-ZX2-000

BOLT, FLANGE (10X90)

Note: Use up to Engine SN 1006951.

$

$

Not available

22

Honda 90011-ZVL-000

BOLT, SPECIAL ADJUSTER

Note: Use up to Engine SN 1007089.

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90011-ZVL-010

BOLT, SPL ADJ

Note: Use from Engine SN 1007090.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90017-ZZ5-M00

BOLT, FLANGE (6X16)

Note: Use up to Engine SN 1006951.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90017-ZZ5-M01

BOLT, FLANGE (6X16)

Note: Use from Engine SN 1006952.

$1.99

$

Usually ships in 3-6 days

0

24

Honda 90055-ZVL-010

BOLT, TENSIONER

$30.99

$

Usually ships in 3-6 days

0

25

Honda 90203-ZVL-010

NUT, FLANGE (8MM)

Note: Use from Engine SN 1006952.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90203-ZW5-010

NUT, FLANGE (8MM)

Note: Use up to Engine SN 1006951.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 90231-PD1-014

NUT-WASHER (5MM)

$5.49

$

Usually ships in 3-6 days

0

27

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, Qty 6

0
