BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) CRANKCASE Parts Diagram

Marine Engine, Made in Japan

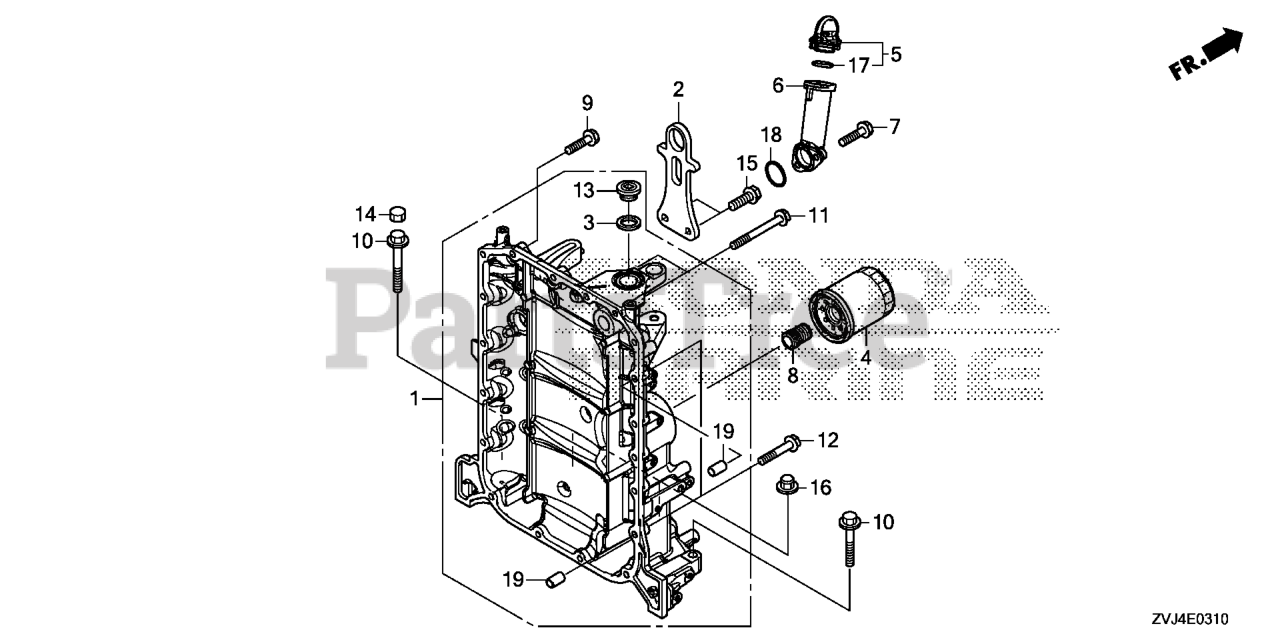

CRANKCASE Parts Diagram

  • Title

1

Honda 11100-ZVL-030

CRANKCASE COMP

Note: Use from Engine SN 1007362.

$753.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZX2-000

HANGER, ENGINE

Note: Use up to Engine SN 1008207.

$42.99

$

Usually ships in 3-6 days

0

2

Honda 11911-ZX2-010

HANGER, ENG

Note: Use from Engine SN 1008208.

$47.99

$

Usually ships in 3-6 days

0

3

Honda 12214-ZV5-000

SEE PART DETAILS - PRI; WASHER, SEALING (22MM)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 15400-RTA-003

FILTER, OIL
(Superseded to 15400-PLM-A01)

$12.99

$

Usually ships in 3-6 days

0

5

Honda 15600-ZY9-M00

CAP ASSY., OIL FILLER

$14.99

$

Usually ships in 3-6 days

0

6

Honda 15631-ZY9-000

EXTENSION, OIL FILLER

$45.99

$

Usually ships in 3-6 days

0

7

Honda 90014-ZZ5-M00

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 90014-ZZ5-M01

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90015-PH1-013

HOLDER, OIL FILTER

$11.99

$

Usually ships in 3-6 days

0

9

Honda 90032-ZZ5-M00

BOLT, FLANGE (6X32)

Note: Use up to Engine SN 1006951.

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90032-ZZ5-M01

BOLT, FLANGE (6X32)

Note: Use from Engine SN 1006952.

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90041-ZVL-000

BOLT, FLANGE (10X55)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90041-ZVL-010

BOLT, FLANGE (10X55)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90047-ZZ5-M00

BOLT, FLANGE (6X55)

Note: Use up to Engine SN 1006951.

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90047-ZZ5-M01

BOLT, FLANGE (6X55)

Note: Use from Engine SN 1006952.

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90063-ZVL-000

BOLT, FLANGE (6X37)

Note: Use up to Engine SN 1006951.

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90063-ZVL-010

BOLT, FLANGE (6X37)

Note: Use from Engine SN 1006952.

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90081-ZZ5-M00

BOLT, SEALING (22MM)

Note: Use up to Engine SN 1007361.

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90081-ZZ5-M01

BOLT, SEALING (22MM)

Note: Use from Engine SN 1007362.

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90082-ZY3-003

CAP, BOLT (10MM)

$5.99

$

Usually ships in 3-6 days

0

15

Honda 90151-ZZ0-M00

BOLT, FLANGE (8X25)

Note: Use up to Engine SN 1006951.

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90151-ZZ0-M01

BOLT, FLANGE (8X25)

Note: Use from Engine SN 1006952.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90204-ZVL-000

NUT, FLANGE CAP (10MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 90204-ZVL-010

NUT (10MM)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91302-MAL-601

O-RING (18.1X3.6)

$5.49

$

Usually ships in 3-6 days

0

18

Honda 91324-PF4-004

O-RING (28.3X2.4) (NOK)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$3.49

$

In Stock, only 3 left!

0
