BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) FUSE BOX@RELAY Parts Diagram

Marine Engine, Made in Japan

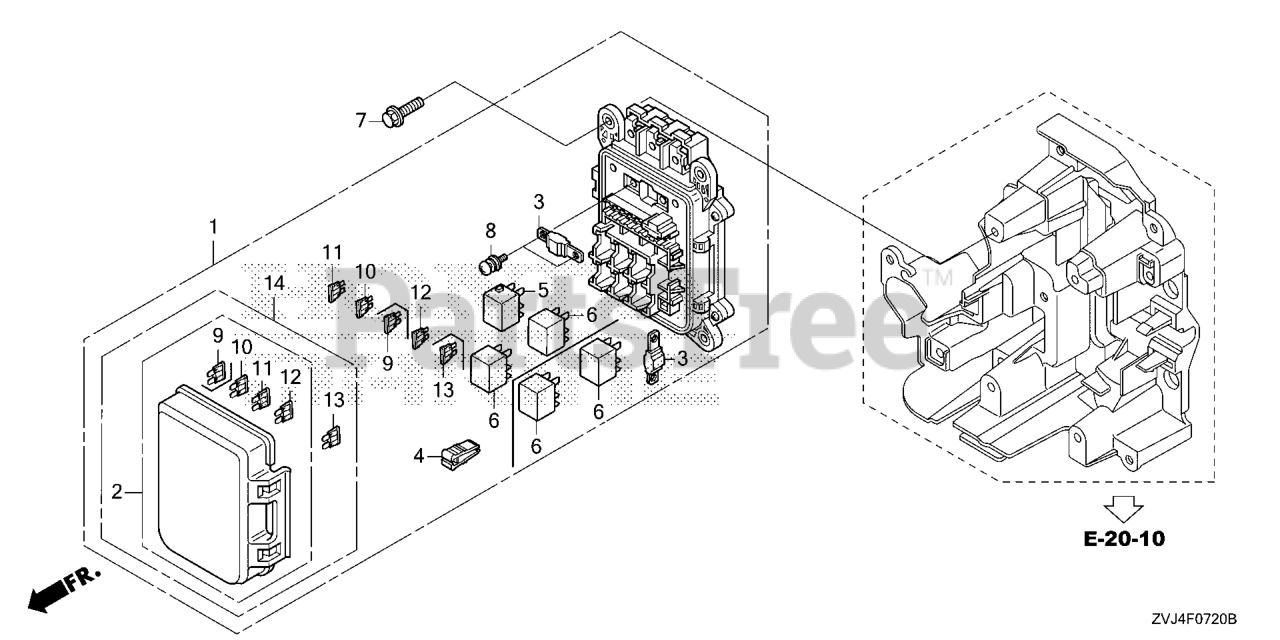

FUSE BOX@RELAY Parts Diagram

  • Title

1

Honda 32370-ZVL-023

BOX ASSY., JUNCTION

Note: Use from Frame SN 8011540.

$444.99

$

Usually ships in 3-6 days

0

2

Honda 32371-ZVL-013

COVER COMP, FUSE

Note: Use up to Frame SN 8011539.

$22.99

$

Usually ships in 3-6 days

0

3

Honda 38228-ZX2-003

FUSE, BLOCK (150A)

$4.99

$

Usually ships in 3-6 days

0

4

Honda 38235-ZY6-004

PULLER, MINI FUSE

$4.99

$

Usually ships in 3-6 days

0

5

Honda 39794-SDA-004

SEE PART DETAILS - PRI; RELAY ASSY., FUEL PUMP (DENSO)

$97.99

$

Usually ships in 3-6 days

0

6

Honda 39794-ZY6-003

RELAY ASSY., POWER (12V-20A) (MICRO ISO 4P)

$30.99

$

Usually ships in 3-6 days

0

7

Honda 90018-ZZ5-M00

BOLT, FLANGE (6X20)
(Superseded to 90018-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

7

Honda 90018-ZZ5-M01

BOLT, FLANGE (6X20)

$2.49

$

Usually ships in 3-6 days

0

8

Honda 90135-ZY6-004

SCREW-WASHER (5X15)

$2.49

$

In Stock, only 2 left!

0

9

Honda 98200-40750

FUSE, MINI (7.5A)

Note: Use from Frame SN 8011540. Use up to Frame SN 8011539.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 98200-41000

FUSE, MINI (10A)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, only 4 left!

0

13

Honda 98200-42000

FUSE, MINI (20A)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 32371-ZVL-013

COVER COMP, FUSE

Note: Use from Frame SN 8011540.

$22.99

$

Usually ships in 3-6 days

0
