BF250 D UCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) OIL PUMP@FLYWHEEL Parts Diagram

Marine Engine, Made in Japan

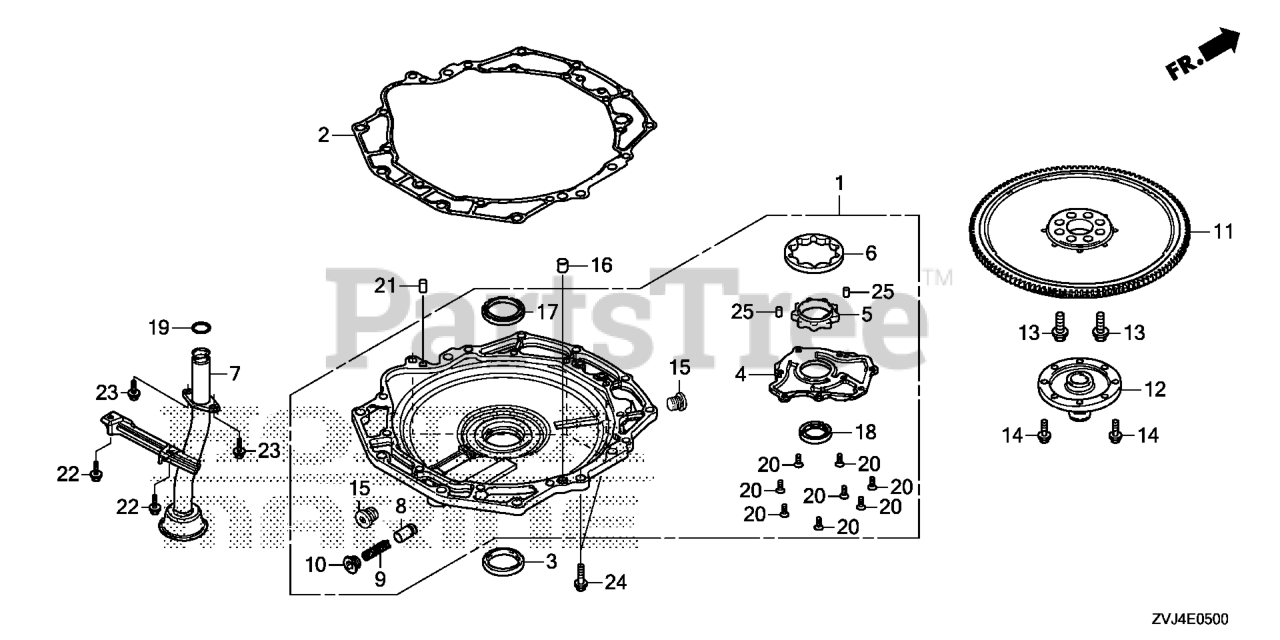

OIL PUMP@FLYWHEEL Parts Diagram

  • Title

1

Honda 15100-ZVL-000ZA

PUMP ASSY., OIL *NH8* (DARK GRAY)

Note: Use up to Engine SN 1007350.

$619.99

$

Usually ships in 3-6 days

0

1

Honda 15100-ZVL-010ZA

PUMP, OIL *NH8*

Note: Use from Engine SN 1007351.

$619.99

$

Usually ships in 3-6 days

0

2

Honda 15112-ZY3-013

SEE PART DETAILS - PRI; GASKET, OIL PUMP BODY

$69.99

$

Usually ships in 3-6 days

0

3

Honda 15113-ZY3-000

RUBBER, OIL PUMP

$9.99

$

Usually ships in 3-6 days

0

4

Honda 15121-ZY3-000

COVER, OIL PUMP

$66.99

$

Usually ships in 3-6 days

0

5

Honda 15131-ZY3-405

ROTOR, OIL PUMP (INNER)

$47.99

$

Usually ships in 3-6 days

0

6

Honda 15132-ZY3-405

ROTOR, OIL PUMP (OUTER)

$39.99

$

Usually ships in 3-6 days

0

7

Honda 15220-ZY3-020

STRAINER, OIL

$109.99

$

Usually ships in 3-6 days

0

8

Honda 15231-PE0-000

VALVE, RELIEF (Honda Code 1599497).

$18.99

$

Usually ships in 3-6 days

0

9

Honda 15232-PG6-000

SPRING, RELIEF VALVE

$7.99

$

Usually ships in 3-6 days

0

10

Honda 15233-PC6-000

BOLT, SEALING (18MM) (Honda Code 1460971).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 31110-ZX2-000ZA

FLYWHEEL *TBLACK* (BLACK)

$847.99

$

Usually ships in 3-6 days

0

12

Honda 31116-ZY3-000

BOSS, FLYWHEEL

$138.99

$

Usually ships in 3-6 days

0

13

Honda 90001-ZX2-000

BOLT (12MM)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 90002-ZW5-013

SEE PART DETAILS - PRI; BOLT, SPECIAL (8MM)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90081-PH7-000

BOLT, SEALING (22MM) (NOT AVAILABLE)

Note: Use from Engine SN 1015858.

$

$

Not available

15

Honda 90081-ZZ5-M00

BOLT, SEALING (22MM)

Note: Use up to Engine SN 1007350.

$6.49

$

Usually ships in 3-6 days

0

15

Honda 90081-ZZ5-M01

BOLT, SEALING (22MM)

Note: Use from Engine SN 1007351 to 1015857.

$5.99

$

Usually ships in 3-6 days

0

16

Honda 90701-PW5-000

PIN, DOWEL (14X15)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 91201-ZW5-003

OIL SEAL (46X60X9)

$15.99

$

Usually ships in 3-6 days

0

18

Honda 91212-P01-003

OIL SEAL (31X46X7) (NOK)

$14.99

$

Usually ships in 3-6 days

0

19

Honda 91324-PC6-000

O-RING (20.6X2.6)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 93600-06016-0A

SCREW, FLAT (6X16) (YAMADA)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94302-10160

PIN B, DOWEL (10X16)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 10

0

23

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$1.99

$

In Stock, Qty 6

0

24

Honda 95701-08030-09

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 96220-50080

ROLLER (5X8)

$0.99

$

Usually ships in 3-6 days

0
