BF250 D XCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

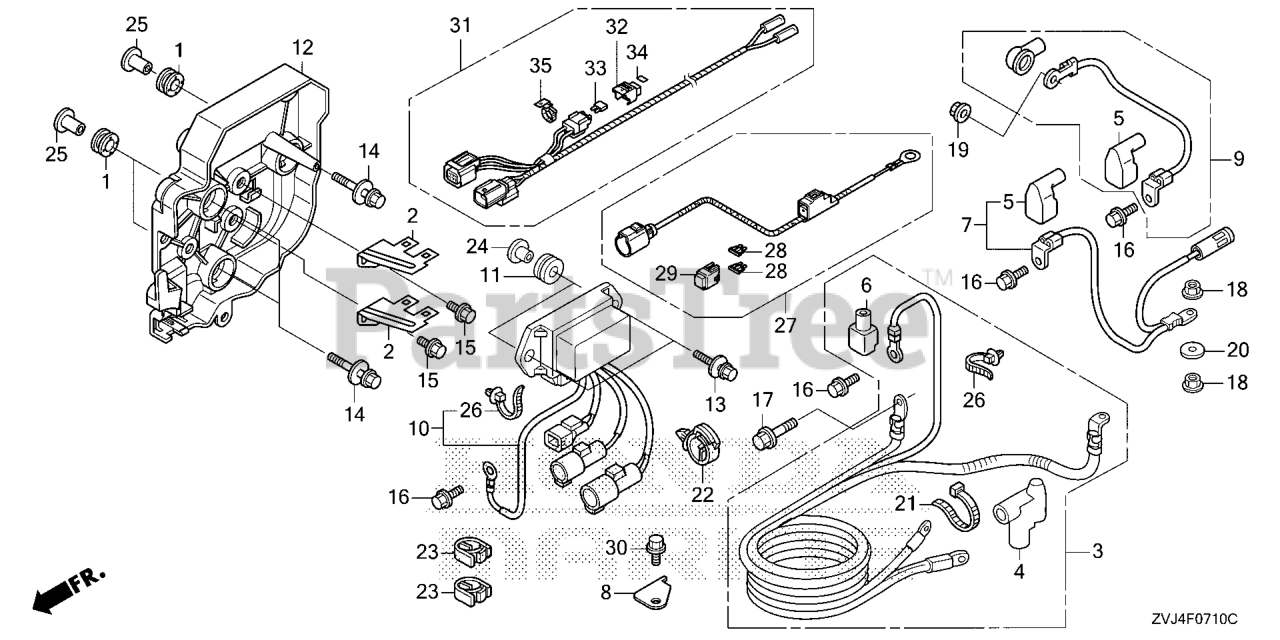

STARTER CABLE Parts Diagram

  • Title

1

Honda 30419-ZY9-003

GROMMET, ELECTRONIC PARTS CASE

$5.49

$

Usually ships in 3-6 days

0

2

Honda 32103-ZVL-000

BRACKET, CONNECTOR C

$6.49

$

Usually ships in 3-6 days

0

3

Honda 32410-ZVL-010

CABLE ASSY., STARTER

$538.99

$

Usually ships in 3-6 days

0

4

Honda 32411-ZY3-003

COVER, STARTER TERMINAL

$18.99

$

Usually ships in 3-6 days

0

5

Honda 32414-ZX2-300

COVER B, TERMINAL (L)

$6.49

$

Usually ships in 3-6 days

0

6

Honda 32414-ZY6-640

COVER B, TERMINAL

$5.49

$

Usually ships in 3-6 days

0

7

Honda 32415-ZX2-000

CABLE ASSY., POWER TILT RELAY

$36.99

$

Usually ships in 3-6 days

0

8

Honda 32421-ZVL-000

PLATE, STARTER CABLE

$6.99

$

Usually ships in 3-6 days

0

9

Honda 32435-ZX2-000

WIRE, ALTERNATOR

$27.99

$

Usually ships in 3-6 days

0

10

Honda 38550-ZVL-003

RELAY ASSY., POWER TILT

$283.99

$

Usually ships in 3-6 days

0

11

Honda 38551-ZW1-000

GROMMET, RELAY

$8.49

$

Usually ships in 3-6 days

0

12

Honda 38552-ZX2-000

CASE, POWER TILT RELAY

$44.99

$

Usually ships in 3-6 days

0

13

Honda 90013-ZZ5-M00

BOLT-WASHER (6X25)
(Superseded to 90013-ZZ5-M01)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90013-ZZ5-M01

BOLT-WASHER (6X25)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 90015-ZVL-010

BOLT-WASHER (6X27)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90103-ZZ0-M00

BOLT, FLANGE (6X10)

Note: Use up to Frame SN 8011240.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 90103-ZZ0-M01

BOLT, FLANGE (6X10)

Note: Use from Frame SN 8011241.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90105-ZZ5-M00

BOLT, FLANGE (6X12)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90107-ZY3-000

BOLT, FLANGE (8X18)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90304-ZY3-000

NUT-WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 90405-ZY3-000

WASHER, PLAIN (8MM)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90651-KV6-003

BAND, WIRE (165MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

In Stock, only 1 left!

0

23

Honda 90683-ZX2-003

CLIP, WIRE HARNESS

$7.49

$

Usually ships in 3-6 days

0

24

Honda 91501-ZZ5-010

COLLAR, MOUNT (6MM)

$5.49

$

Usually ships in 3-6 days

0

25

Honda 91503-ZY9-M00

COLLAR, MODULE IGNITION CONTROL CASE (CDI)

Note: Use up to Frame SN 8011240.

$2.99

$

Usually ships in 3-6 days

0

25

Honda 91503-ZY9-M01

COLR, CDI UNIT CASE
(Superseded to 91551-ZVL-010)

Note: Use from Frame SN 8011241 to 8011281.

$2.99

$

Usually ships in 3-6 days

0

25

Honda 91551-ZVL-010

COLLAR (12X6.5)

Note: Use from Frame SN 8011282.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$4.99

$

Usually ships in 3-6 days

0

27

Honda 31575-ZVL-000

HARNESS ASSY., POWER

Note: Use from Frame SN 8010143.

$37.99

$

Usually ships in 3-6 days

0

28

Honda 32501-KSV-J00

FUSE, BLADE (40A)

Note: Use from Frame SN 8010143.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 38216-ZZ3-003

COVER ASSY., FUSE (40A)

Note: Use from Frame SN 8010143.

$7.99

$

Usually ships in 3-6 days

0

30

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$2.99

$

Usually ships in 3-6 days

0

31

Honda 32531-ZVL-000

HARNESS ASSY., LOAD SIGNAL

$48.99

$

Usually ships in 3-6 days

0

32

Honda 38216-Z2E-003

COVER ASSY., FUSE

$7.99

$

Usually ships in 3-6 days

0

33

Honda 38221-GJE-J01

FUSE, BLADE (1A) (MINI)

$4.99

$

Usually ships in 3-6 days

0

34

Honda 87116-ZVL-000

LABEL, FUSE (1A)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 91531-SR3-003

HOLDER, CONNECTOR (128.6MM) (NATURAL)

$7.49

$

Usually ships in 3-6 days
