BF250 D XCDS (BBNJ) - Honda Marine Engine, Made in Japan (SN: BBNJ-8000001 - BBNJ-9999999) WIRE HARNESS Parts Diagram
Marine Engine, Made in Japan

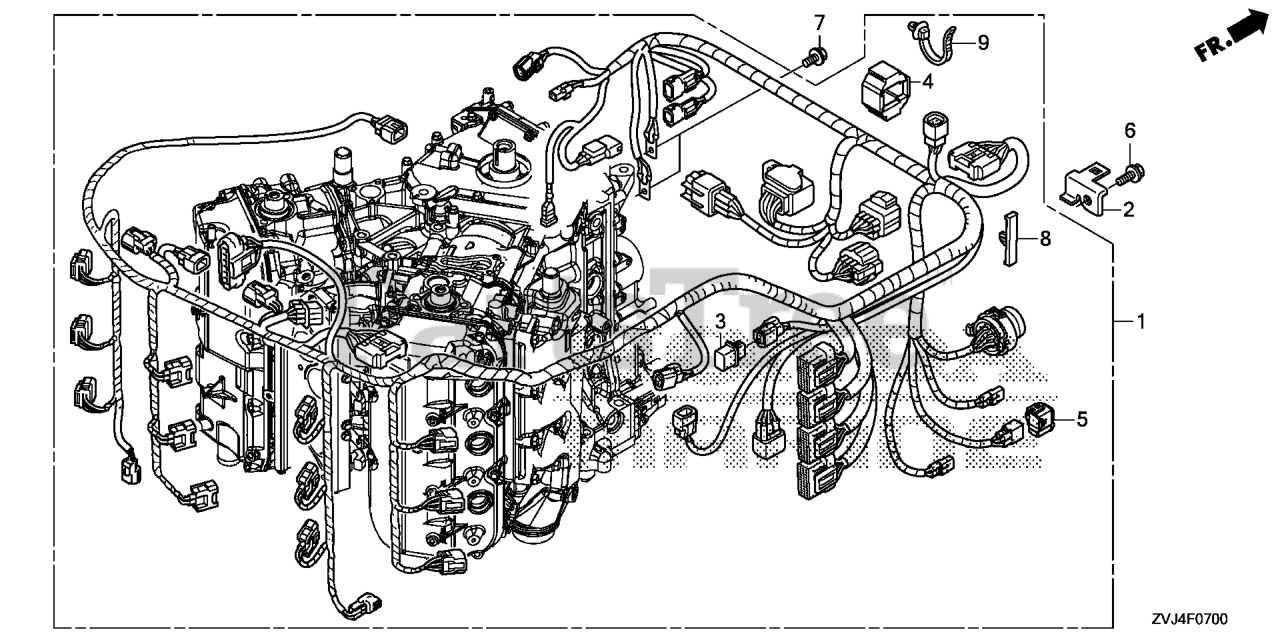

WIRE HARNESS Parts Diagram
Honda 32100-ZVL-020
WIRE HARNESS ASSY., MAIN
(Superseded to 32100-ZVL-040)
Note: Use from Frame SN 8010745 to 8010961.
$1090.99
$
Usually ships in 3-6 days
$1090.99
$
Usually ships in 3-6 days
Honda 32106-ZVL-000
BRACKET, JUNCTION CONNECTOR
$10.99
$
Usually ships in 3-6 days
Honda 32107-ZVL-003
TERMINATOR ASSY.
$16.99
$
Usually ships in 3-6 days
Honda 32127-ZZ3-000
SUSPENSION, CONNECTOR
$6.49
$
Usually ships in 3-6 days
Honda 32606-K44-V01
CAP, DUMMY (WPC 4P 090 M) (RED)
$10.99
$
Usually ships in 3-6 days
Honda 90021-ZZ5-M00
BOLT, FLANGE (6X14)
(Superseded to 90021-ZZ5-M01)
Note: Use up to Frame SN 8011124.
$1.99
$
Usually ships in 3-6 days
Honda 90021-ZZ5-M01
BOLT, FLANGE (6X14)
$1.99
$
Usually ships in 3-6 days
Honda 90105-ZZ5-M00
BOLT, FLANGE (6X12)
$1.99
$
Usually ships in 3-6 days
Honda 90653-ZY3-003
CLIP, WIRE HARNESS
$3.99
$
Usually ships in 3-6 days
Honda 91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$5.99
$
Usually ships in 3-6 days
